Bently Nevada 106M2686-01 Industrial Network Interface for 3500 Series Systems

Bently Nevada 106M2686-01 Industrial Network Interface for 3500 Series Systems: Powering the Smart Factory Data Chain

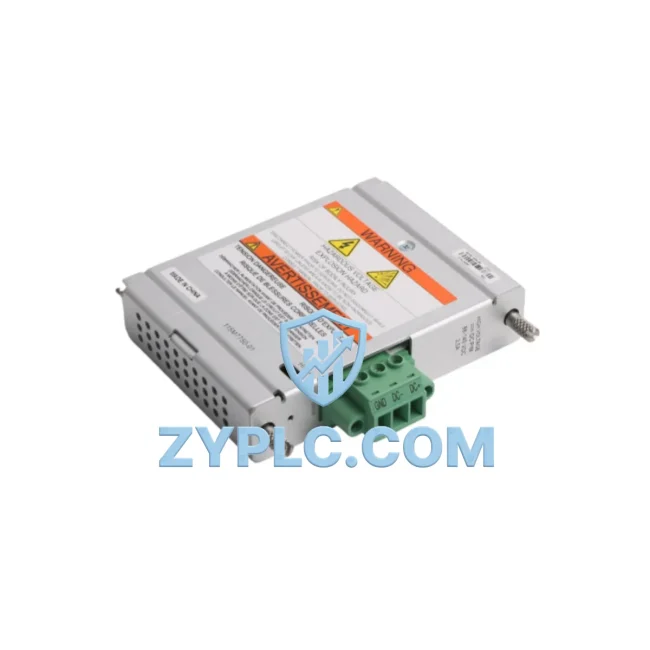

The Bently Nevada 106M2686-01 (alternate part number 115M7750-01) is a precision-engineered Power Supply Module designed for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In modern industrial environments where uptime is non-negotiable, this module serves as the foundational power backbone that keeps the entire 3500 rack system operational — enabling uninterrupted signal acquisition, real-time vibration data transmission, and seamless integration across SCADA, DCS, and HMI layers.

As smart factories evolve toward fully connected architectures, the reliability of every node in the data chain becomes critical. The 106M2686-01 ensures that all downstream modules within the 3500 Series rack — including the Bently Nevada 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, and the 3500/15 Power Supply — receive stable, conditioned power to maintain continuous data flow from field sensors to control systems.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the Bently Nevada 106M2686-01 powers the 3500 Series rack that sits at the heart of a rotating equipment monitoring network. The data flow begins at the field level, where Bently Nevada 330180-51-05 proximity probes and 330130-080-00-00 extension cables capture shaft vibration, displacement, and speed signals from turbines, compressors, and pumps. These raw analog signals are fed into the 3500/42M Proximitor/Seismic Monitor, which digitizes and processes the data within the rack.

Once processed, the vibration and machinery health data is transmitted upstream through the 3500/22M Transient Data Interface, which communicates with plant-level SCADA systems — such as GE iFIX or Emerson DeltaV — via Modbus TCP or OPC-DA protocols. The 3500/20 Rack Interface Module (RIM) acts as the communication gateway, bridging the 3500 rack to the plant Ethernet backbone, enabling operators at the System 1 Evolution HMI workstation to monitor real-time vibration trends, alarm states, and historical waveform data without leaving the control room.

For facilities running parallel protection systems, the 106M2686-01 also supports redundant power configurations alongside the Bently Nevada 3500/15 Power Supply, ensuring that a single power fault does not interrupt the monitoring chain. Remote I/O panels connected via Modbus RTU over RS-485 can relay alarm outputs to Allen-Bradley ControlLogix PLCs or Siemens S7-300 controllers, triggering automated shutdown sequences or maintenance alerts through the plant DCS. Edge gateways such as the Moxa MGate MB3480 further extend protocol conversion capability, bridging legacy serial data from the 3500 rack into modern Industrial Ethernet environments for integration with MES and ERP platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities running legacy machinery protection systems is data isolation — where critical vibration and equipment health data remains trapped within proprietary monitoring racks, invisible to the broader plant control and analytics infrastructure. The Bently Nevada 106M2686-01 addresses this at the hardware level by ensuring the 3500 Series rack remains continuously powered and operationally stable, which is the prerequisite for any data integration effort.

Without reliable rack power, protocol conversion modules lose connectivity, SCADA polling cycles fail, and alarm data goes unlogged — creating blind spots in the plant’s condition monitoring coverage. By maintaining stable power delivery across all slots in the 3500 chassis, the 106M2686-01 enables the 3500/20 RIM to sustain its Modbus or Ethernet/IP communication sessions with upstream DCS and SCADA systems, ensuring that vibration trends, speed readings, and process variables are continuously available for real-time monitoring and historical trending.

For plants pursuing digital transformation and production line transparency, this module is a critical enabler. It supports the expansion of the 3500 rack with additional monitor modules — such as the 3500/40M Proximitor Monitor or 3500/50M Tachometer — without disrupting existing communication sessions. Remote diagnostics become possible when the rack is fully powered and connected, allowing maintenance engineers to access waveform data, adjust alarm setpoints, and perform system health checks from remote HMI terminals or cloud-connected SCADA dashboards, reducing the need for on-site intervention and minimizing unplanned downtime.

All units supplied by ZYPLC undergo pre-shipment functional testing, are backed by a 12-month warranty, and are available for immediate dispatch via DHL or FedEx with full export documentation.

Industrial Connectivity FAQ

Q1: Does the Bently Nevada 106M2686-01 support redundant power configurations for continuous monitoring?
Yes. The 106M2686-01 is designed to operate within the 3500 Series rack architecture, which supports dual power supply configurations. When paired with a second Bently Nevada 3500/15 Power Supply, the system maintains uninterrupted power to all monitor and communication modules even during a single power supply failure, ensuring zero-gap data acquisition and alarm monitoring.

Q2: Which communication protocols does the 3500 Series support when this power supply module is installed?
The 3500 Series rack, powered by the 106M2686-01, supports Modbus RTU (RS-232/RS-485), Modbus TCP/IP, and OPC-DA/OPC-UA communication via the 3500/20 Rack Interface Module. This enables direct integration with SCADA platforms, DCS controllers, and HMI systems without requiring additional protocol converters in most standard plant network architectures.

Q3: How does this module contribute to network stability in a multi-rack 3500 Series installation?
In multi-rack deployments, each 3500 chassis requires its own dedicated power supply. The 106M2686-01 provides stable, conditioned DC power to all modules within its rack, preventing voltage fluctuations that could cause communication dropouts or false alarm triggers. This is especially important in high-vibration environments where power quality directly affects the accuracy of proximity probe signal processing and Modbus data transmission integrity.

Q4: What is the warranty coverage and how is pre-shipment testing conducted?
All Bently Nevada 106M2686-01 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes functional verification testing prior to dispatch, confirming power output stability and backplane interface integrity. Units are shipped via DHL or FedEx with full export compliance documentation, and our technical team is available to support installation and commissioning queries post-delivery.
