Bently Nevada 130539-06 Industrial Network Interface for 3500 Series

Bently Nevada 130539-06 Industrial Network Interface for 3500 Series Systems: Precision Data Link for Smart Factory Condition Monitoring

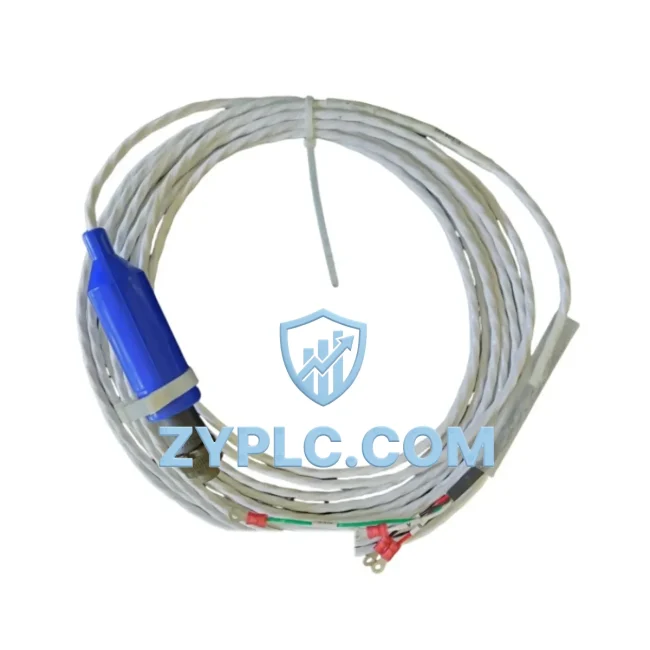

The Bently Nevada 130539-06 Interconnect Cable is a purpose-engineered signal transmission component designed for seamless integration within the Bently Nevada 3500 Series Machinery Protection System. In modern industrial environments where real-time vibration data, shaft displacement readings, and process variable signals must flow without interruption from field-mounted transducers to centralized monitoring platforms, the physical integrity of every interconnect link is mission-critical. The 130539-06 delivers exactly that — a shielded, low-noise signal pathway that preserves data fidelity across the full chain from sensor to system rack.

Within a typical 3500 Series installation, the 130539-06 Interconnect Cable bridges the gap between proximity probe drivers, velocity transducers, and accelerometers mounted on rotating machinery and the 3500/22M Transient Data Interface or 3500/42M Proximitor/Seismic Monitor modules housed in the rack. This cable ensures that analog signals — whether 4–20 mA process outputs, ±24 VDC proximity probe driver signals, or raw AC vibration waveforms — are transmitted with minimal attenuation and electromagnetic interference rejection, maintaining the signal quality required for accurate alarm threshold evaluation and trip logic execution.

Network Communication Table

Connected Automation Data Flow

Understanding the 130539-06 requires placing it within the broader industrial data architecture it serves. In a typical smart factory deployment, rotating assets such as compressors, turbines, pumps, and gearboxes are instrumented with Bently Nevada 3300 XL 8mm Proximity Probes or 330400 Series Proximity Transducer Systems. These sensors generate continuous analog signals representing shaft radial vibration, axial position, and rotational speed. The 130539-06 Interconnect Cable carries these raw signals from the field junction box or proximitor housing directly into the 3500 Series rack, where they are conditioned and digitized by monitor modules such as the 3500/40M Proximitor/Seismic Monitor or the 3500/50 Tachometer Monitor.

Once digitized within the rack, the processed data is made available to plant-level systems through the 3500/92 Communication Gateway Module, which supports Modbus TCP/IP and Modbus RTU protocols. This gateway acts as the bridge between the 3500 Series rack and the plant’s SCADA platform — whether that is a Wonderware System Platform, Ignition SCADA by Inductive Automation, or a DCS such as the Emerson DeltaV or Honeywell Experion PKS. Operators at the HMI workstation can view real-time vibration trend data, alarm states, and historical waveforms without ever leaving the control room.

For facilities integrating condition monitoring data into a broader Industrial IoT architecture, the 3500 Series rack data can be forwarded through an edge gateway — such as a Moxa MGate MB3000 Series Modbus Gateway or a Advantech ADAM-6717 intelligent gateway — to cloud-based analytics platforms or enterprise asset management systems. In this data flow, the 130539-06 Interconnect Cable represents the foundational physical layer: without reliable signal transmission at the sensor-to-rack interface, no amount of upstream protocol conversion or data analytics can compensate for corrupted or attenuated input signals.

In multi-rack installations protecting large turbomachinery trains, multiple 130539-06 cables may be deployed in parallel, each serving a dedicated monitor channel. The rack system may also include the 3500/20 Rack Interface Module for system power management and the 3500/15 Power Supply to ensure uninterrupted operation. Remote I/O expansion using Bently Nevada’s own I/O modules or third-party Profibus DP remote I/O stations can further extend the monitoring network across geographically distributed assets within the same plant.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — the inability to correlate vibration and process data from machinery protection systems with broader plant operational data. Legacy installations often rely on proprietary analog signal chains where the machinery protection rack operates as a standalone island, disconnected from the plant DCS, historian, or SCADA system. The 130539-06 Interconnect Cable, as part of a fully integrated 3500 Series deployment, directly addresses this challenge by ensuring that the signal integrity at the physical layer is sufficient to support the high-resolution data capture required for digital integration.

When the 3500 Series rack is connected via the 3500/92 Communication Gateway to a Modbus-capable SCADA or DCS, operators gain the ability to monitor vibration alarm states, overall vibration levels, and gap voltage readings alongside process variables such as temperature, pressure, and flow — all within a unified operator interface. This eliminates the need for operators to cross-reference separate machinery protection displays with process control screens, reducing response time to developing machinery faults and improving overall plant transparency.

For facilities pursuing predictive maintenance programs, the reliable signal chain enabled by the 130539-06 provides the clean, consistent data required for vibration signature analysis, spectrum trending, and machine learning-based anomaly detection. Remote diagnostic access — whether through a VPN-connected engineering workstation or a cloud-connected edge device — depends entirely on the quality of the underlying signal data. A degraded or intermittent interconnect cable introduces noise artifacts that can trigger false alarms, mask genuine fault signatures, or cause nuisance trips that interrupt production.

ZYPLC maintains verified inventory of the Bently Nevada 130539-06 and related 3500 Series components, with each unit subject to pre-shipment functional verification. All units are supplied with a 12-month warranty covering manufacturing defects and signal integrity performance. Global shipping is available with lead times confirmed at the time of order.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 Series support when integrated with SCADA systems?
The 3500 Series supports Modbus RTU and Modbus TCP/IP communication through the 3500/92 Communication Gateway Module. This allows the rack to transmit vibration alarm states, overall levels, and direct values to any SCADA, DCS, or historian platform that supports Modbus protocol, including Wonderware, Ignition, Emerson DeltaV, and OSIsoft PI.

Q2: How does the 130539-06 Interconnect Cable affect signal quality and network stability?
The 130539-06 is a shielded interconnect cable designed to minimize electromagnetic interference and signal attenuation between field transducers and the 3500 Series rack. Maintaining cable integrity is essential for network stability — a degraded cable can introduce noise that affects alarm accuracy, triggers false trips, or corrupts the data stream used for remote diagnostics and SCADA integration.

Q3: Can the Bently Nevada 3500 Series be expanded to monitor additional assets or integrate with remote I/O systems?
Yes. The 3500 Series rack architecture supports multi-rack configurations and can be integrated with remote I/O systems and edge gateways for expanded asset coverage. Additional monitor modules, tachometer inputs, and communication gateways can be added to the rack to scale the monitoring network as plant requirements grow.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 130539-06?
All Bently Nevada 130539-06 Interconnect Cables supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and signal performance issues. Each unit undergoes pre-shipment functional verification to confirm connector integrity and shielding continuity before dispatch. In-stock units are available for immediate shipment with order confirmation.
