Bently Nevada 130539-15 Industrial Network Interface for 3500 Series Systems

Bently Nevada 130539-15 Industrial Network Interface for 3500 Series Systems: Precision Data Link for Smart Factory Connectivity

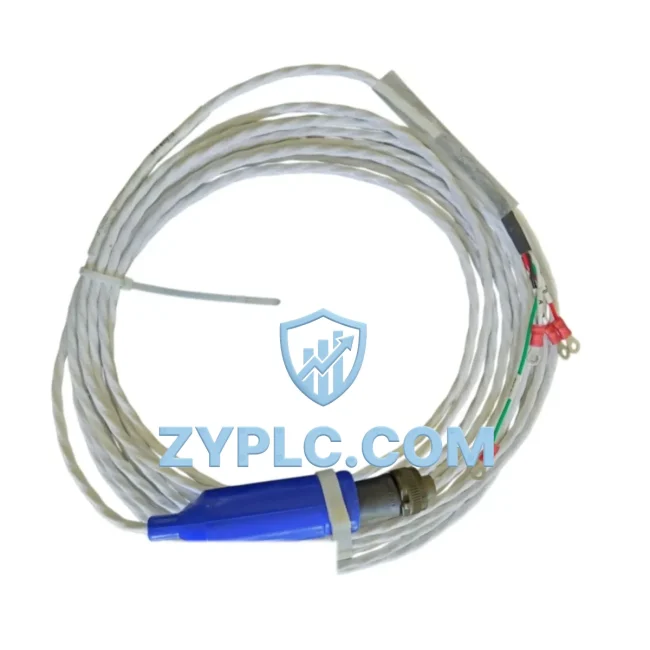

The Bently Nevada 130539-15 Interconnect Cable is a purpose-engineered signal transmission component designed for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In modern industrial environments where uninterrupted data flow between field devices and supervisory systems is mission-critical, the 130539-15 serves as the physical backbone that connects vibration transducers, proximity probes, and velocity sensors to the 3500 rack-based monitoring modules. Its role extends far beyond a simple cable — it is a precision-grade industrial network interface that ensures signal integrity from the measurement point all the way to the SCADA control room.

Within a typical smart factory architecture, the 130539-15 interconnect cable links field-mounted sensors directly to Bently Nevada 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor modules housed in the 3500 rack. These modules digitize raw analog signals and transmit structured data upstream via the 3500/20 Rack Interface Module (RIM), which supports Modbus TCP and OPC-DA/UA communication protocols — enabling seamless integration with DCS platforms, SCADA systems such as GE iFIX or Wonderware, and plant-level historian databases. The 130539-15 is the first link in this critical data chain, and its shielded construction ensures that electromagnetic interference from variable frequency drives, motor control centers, and high-voltage switchgear does not corrupt the low-level transducer signals it carries.

In rotating machinery protection applications — including gas turbines, steam turbines, centrifugal compressors, and large induction motors — the quality of the interconnect cable directly determines the accuracy of vibration amplitude, phase, and gap voltage readings. The Bently Nevada 130539-15, with its 15-foot (approximately 4.5-meter) cable length, is optimized for installations where the junction box or field terminal block is positioned at a standard distance from the 3500 rack enclosure. For longer runs, it is commonly paired with the Bently Nevada 330130 Extension Cable or routed through 3500/05 Power Supply-equipped racks that maintain signal conditioning across extended cable paths.

Network Communication Table

Connected Automation Data Flow

Understanding the 130539-15 within the broader automation data flow reveals its strategic importance in industrial connectivity. At the field level, Bently Nevada 330500 Proximity Probes and 330180 Velomitor Piezo-Velocity Sensors generate continuous analog signals representing shaft vibration, axial displacement, and casing velocity. These signals travel through the 130539-15 interconnect cable into the corresponding 3500/42M Proximitor/Seismic Monitor or 3500/22M Transient Data Interface module. The monitor modules perform real-time signal conditioning, apply alert and danger setpoints, and output both relay-based trip signals and digital data to the rack backplane.

The 3500/20 Rack Interface Module aggregates all channel data from across the rack and exposes it via Modbus TCP or OPC-DA to the plant DCS — typically a GE Mark VIe, Emerson DeltaV, or Honeywell Experion PKS controller. From the DCS, data flows to the SCADA historian and operator HMI stations, where maintenance engineers monitor trend data, configure alarm thresholds, and initiate remote diagnostics. In facilities deploying edge computing architectures, an industrial edge gateway such as the Moxa UC-8112 or Advantech WISE-5000 may sit between the 3500 RIM and the cloud analytics platform, enabling AI-driven predictive maintenance without disrupting the real-time protection loop.

For plants running parallel protection and control architectures, the 130539-15 is often deployed alongside Bently Nevada 3500/15 Power Supply modules and 3500/32 4-Channel Relay Module units that provide hardwired trip outputs to turbine control systems. This layered architecture — analog signal → interconnect cable → monitor module → RIM → DCS/SCADA → historian/HMI — represents the complete industrial data chain that the 130539-15 initiates and supports.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the condition where critical machinery health data is trapped within standalone protection systems and never reaches the plant-wide SCADA or ERP layer. The Bently Nevada 130539-15, as part of the 3500 Series ecosystem, directly addresses this problem by ensuring that the physical signal path between transducers and monitoring modules is reliable, noise-free, and fully compatible with the digital communication infrastructure of the 3500 rack.

When the interconnect cable is degraded, improperly terminated, or substituted with a non-OEM equivalent, the consequences cascade through the entire data chain: false alarms trigger unnecessary shutdowns, gap voltage readings drift outside calibration limits, and the RIM may report communication faults to the DCS — creating exactly the kind of data isolation and system opacity that smart factory initiatives are designed to eliminate. By using the genuine 130539-15, plant engineers ensure that signal integrity is maintained from the probe tip to the SCADA dashboard, enabling transparent production line monitoring, accurate alarm management, and confident remote diagnostics.

For facilities undergoing digital transformation — integrating OPC-UA servers, deploying IIoT sensor networks, or migrating from legacy DCS to modern distributed control architectures — the 3500 Series with properly specified interconnect cables like the 130539-15 provides a stable, protocol-compatible foundation. The system supports expansion through additional rack slots, integration with System 1 Evolution condition monitoring software, and connectivity to plant-level asset management platforms, ensuring that the investment in machinery protection infrastructure scales with the factory’s digital ambitions.

Industrial Connectivity FAQ

Q1: Does the Bently Nevada 130539-15 introduce any signal delay or communication latency in the 3500 Series monitoring loop?
The 130539-15 is a passive analog interconnect cable and introduces no digital latency. Signal propagation through the cable is effectively instantaneous at the frequencies relevant to machinery vibration monitoring (typically 0–20 kHz). Digital communication latency in the broader system is determined by the 3500/20 RIM’s Modbus TCP or OPC-UA polling cycle, which is configurable and typically operates at scan rates of 100–500 ms depending on the DCS or SCADA configuration.

Q2: Is the 130539-15 compatible with all 3500 Series monitor modules, and can it be used with third-party vibration monitors?
The 130539-15 is designed and tested for use with Bently Nevada 3500 Series monitor modules including the 3500/22M, 3500/42M, 3500/44M, 3500/46M, and 3500/50M. Its connector pinout and cable characteristics are matched to the 3500 rack’s input specifications. Use with third-party monitors is not recommended without verifying connector compatibility and signal conditioning requirements, as mismatched cables can affect measurement accuracy and system certification.

Q3: How does the 130539-15 contribute to network stability and system reliability in continuous-operation plants?
The cable’s shielded construction suppresses electromagnetic interference from adjacent power cables, VFDs, and motor starters — common sources of noise in industrial environments. This shielding is critical for maintaining stable, drift-free analog signals that the 3500 monitor modules rely on for accurate setpoint comparison and alarm generation. A stable physical signal layer is the foundation of a reliable protection network; without it, even the most sophisticated SCADA or DCS configuration cannot compensate for corrupted input data.

Q4: What quality assurance and warranty coverage is provided with the 130539-15 from ZYPLC?
Every Bently Nevada 130539-15 supplied by ZYPLC undergoes pre-shipment inspection including visual examination, connector integrity verification, and continuity testing. All units are backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains ready stock for immediate dispatch, supporting both urgent maintenance requirements and planned procurement schedules. For technical consultation, volume pricing, or expedited shipping, contact our industrial automation team directly.
