Bently Nevada 135489-01: Industrial Data Link for 3500 Series Vibration Monitoring Systems

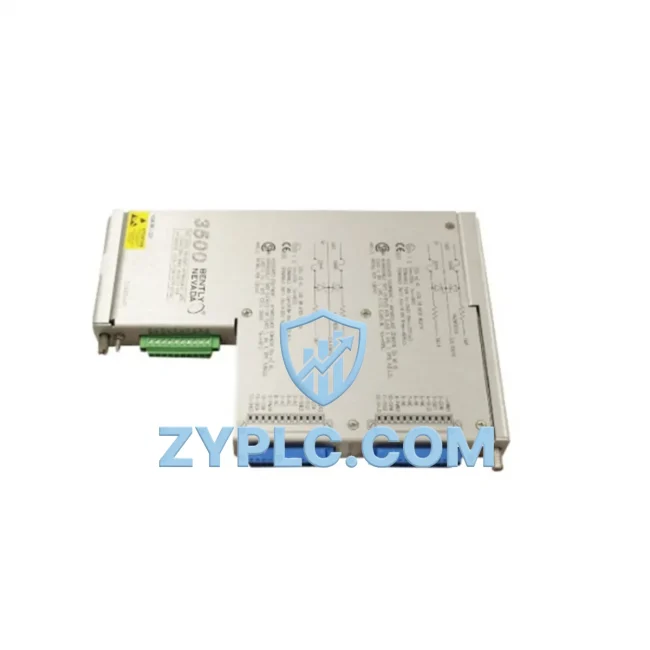

The Bently Nevada 135489-01 is a precision-engineered internal barrier module designed for the Bently Nevada 3500 Series vibration monitoring platform — one of the most widely deployed condition monitoring architectures in rotating machinery protection worldwide. In smart factory environments where continuous uptime is non-negotiable, this barrier serves as a critical signal conditioning and isolation component within the data acquisition chain, enabling reliable transmission of vibration, position, and dynamic process data from field-mounted sensors to the centralized monitoring and protection system.

At its core, the 135489-01 functions as an intrinsic safety barrier, isolating hazardous-area instrumentation — including proximity probes, velocity transducers, and accelerometers — from the safe-area electronics of the 3500 rack. This galvanic isolation ensures signal integrity across long cable runs in electrically noisy industrial environments, preserving the accuracy of real-time vibration waveforms that feed into SCADA platforms, DCS controllers, and historian databases for trend analysis and predictive maintenance decisions.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the Bently Nevada 135489-01 sits at the front end of the vibration data acquisition chain. Field-mounted Bently Nevada 330100 proximity probes or 330500 velocity transducers installed on turbines, compressors, or pump shafts transmit raw analog vibration signals through the 135489-01 barrier into the 3500 rack’s monitor cards — such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor — where signal processing, alarm setpoint comparison, and trip logic are executed in real time.

Once processed within the 3500 rack, vibration data is routed upstream via the 3500/92 Communication Gateway Module, which supports Modbus TCP, Ethernet/IP, and OPC-DA/UA protocols. This gateway bridges the 3500 platform to plant-level networks, feeding real-time machinery health data into GE System 1 Evolution condition monitoring software, OSIsoft PI historian, or third-party SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation. Simultaneously, the 3500/22M Transient Data Interface captures high-resolution waveform data for startup/shutdown analysis and orbit plot generation.

For broader plant integration, the 3500 rack communicates with Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers via Ethernet/IP or Profibus DP, enabling the DCS or safety instrumented system (SIS) to act on vibration trip signals. Remote I/O nodes and Pepperl+Fuchs FieldConnex segment couplers may extend the network to additional field instruments, while Moxa EDS-510A industrial Ethernet switches provide the managed switching infrastructure that maintains deterministic data delivery across the plant network. HMI panels — including Bently Nevada 3500/05 Rack Interface Module displays or standalone Wonderware-based operator stations — present real-time vibration trends, alarm states, and machinery health dashboards to operations personnel.

This end-to-end data flow — from proximity probe through barrier, monitor card, communication gateway, industrial switch, PLC, and SCADA — represents the complete industrial connectivity chain that the 135489-01 anchors at the field level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities running legacy rotating machinery protection systems is data isolation — the inability to surface real-time vibration and machinery health data to plant-wide SCADA, MES, or ERP systems due to protocol incompatibility, proprietary communication architectures, or aging hardware with no modern network interfaces.

The Bently Nevada 135489-01, as part of the 3500 Series ecosystem, directly addresses this challenge. By providing reliable signal isolation and conditioning at the field level, it ensures that the vibration data entering the 3500 rack is clean, accurate, and free from ground loops or electrical interference — a prerequisite for any meaningful protocol conversion or network integration downstream. Without a properly functioning barrier, signal noise corrupts the data before it ever reaches the communication gateway, rendering SCADA trend data unreliable and alarm thresholds meaningless.

With the 135489-01 in place, the 3500 platform can leverage its Modbus TCP and OPC-UA communication capabilities to break down data silos, pushing machinery health KPIs — shaft vibration amplitude, phase angle, bearing temperature, and rotor position — into unified plant dashboards. This enables production line transparency: maintenance engineers can monitor multiple rotating assets from a single SCADA screen, set predictive maintenance triggers based on vibration trend thresholds, and receive automated alarm notifications via email or SMS without physically visiting the machinery.

For facilities expanding their condition monitoring coverage, the 3500 Series architecture supports system scalability — additional monitor cards and barrier modules can be added to the existing rack without rewiring field instruments, reducing integration costs and minimizing production downtime during expansion. Remote diagnostics via the 3500/92 gateway allow off-site engineers to interrogate machinery health data, review alarm histories, and adjust monitor configurations without on-site presence, a capability increasingly valued in remote or unmanned industrial installations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 Series support for SCADA integration?
The 3500 Series supports Modbus RTU, Modbus TCP/IP, Ethernet/IP, and OPC-DA/UA via the 3500/92 Communication Gateway Module. This enables direct integration with most industrial SCADA platforms, DCS systems, and historian databases without requiring additional protocol converters.

Q2: Does the 135489-01 barrier introduce any communication latency in the vibration monitoring data chain?
The 135489-01 is a passive signal conditioning barrier and does not introduce digital processing latency. Signal propagation through the barrier is essentially instantaneous at the analog level. Latency in the data chain is determined by the 3500 monitor card’s sampling rate and the communication gateway’s polling cycle, typically configurable from 100ms to 1 second for SCADA updates.

Q3: Is the Bently Nevada 135489-01 compatible with existing 3500 racks, and can it be added without system downtime?
The 135489-01 is designed for internal installation within the 3500 rack chassis. Compatibility depends on the specific monitor card and rack configuration. In many cases, barrier replacement or addition can be performed during scheduled maintenance windows. ZYPLC recommends consulting the 3500 Series installation manual or contacting our technical team to confirm compatibility with your specific rack revision before ordering.

Q4: What does the 12-month warranty cover, and how does ZYPLC handle pre-shipment testing?
All Bently Nevada 135489-01 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm barrier integrity and signal isolation performance before dispatch. In the event of a warranty claim, ZYPLC provides replacement or repair support with expedited processing to minimize impact on your production operations.
