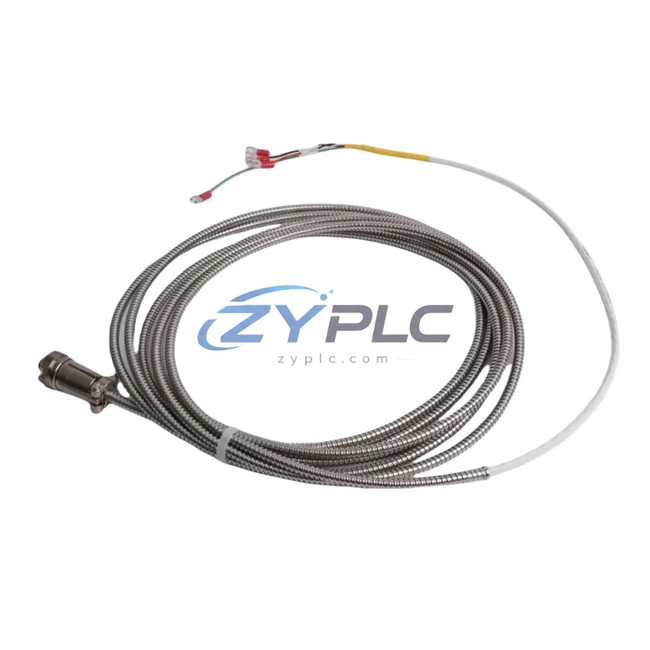

Bently Nevada 16710-11 Vibration Monitoring Cable for 3300 Series

Bently Nevada 16710-11 Industrial Network Interface for 3300 Series Systems: Precision Data Link for Smart Factory Vibration Monitoring

The Bently Nevada 16710-11 is a high-integrity vibration interconnect cable engineered for the Bently Nevada 3300 Series continuous vibration monitoring platform. In modern industrial environments where machine health data must flow seamlessly from rotating equipment to control rooms, SCADA systems, and predictive maintenance platforms, the 16710-11 serves as the critical physical link that ensures signal fidelity, protocol integrity, and real-time data continuity across the entire automation chain.

Designed to operate within the demanding signal architecture of the 3300 Series, this interconnect cable connects proximity probes and transducers directly to Bently Nevada 3300/16 Monitor and 3300/20 Monitor rack-mounted modules, preserving the low-noise, high-frequency vibration signal required for accurate shaft displacement measurement. In smart factory deployments, where every microsecond of signal delay can translate into missed fault detection, the 16710-11 provides the stable, shielded transmission path that underpins the entire condition monitoring data flow.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the Bently Nevada 16710-11 interconnect cable initiates the data chain at the field level. Proximity probes — such as those in the Bently Nevada 3300 XL 8mm Proximity Transducer System — detect shaft displacement and generate analog voltage signals that are routed through the 16710-11 cable to the monitor rack. Within the Bently Nevada 3300 Series rack, modules such as the 3300/16 Dual Vibration Monitor and 3300/46M Tachometer process these signals, converting raw analog data into engineering units for shaft vibration, speed, and phase reference.

From the monitor rack, processed data is transmitted via Modbus RTU or PROFIBUS DP communication interfaces to plant-level PLCs — commonly Siemens S7-300 or Allen-Bradley ControlLogix platforms — where the vibration data is integrated into broader machine control logic. Simultaneously, the 3300 Series rack outputs feed into SCADA systems such as GE iFIX or Wonderware InTouch, enabling operators to visualize real-time vibration trends, set alarm thresholds, and trigger automated shutdown sequences when vibration levels exceed safe operating limits.

For facilities deploying OPC-UA-based Industrial IoT architectures, the 3300 Series monitor data — originating from the signal path established by the 16710-11 — can be aggregated by edge gateways such as the Moxa MGate MB3660 or Kepware KEPServerEX OPC server, enabling seamless data flow to cloud-based predictive maintenance platforms and MES systems. Remote I/O modules and Bently Nevada System 1 software further extend the diagnostic reach, allowing maintenance engineers to perform remote vibration spectrum analysis, waterfall plot review, and alarm acknowledgment without physical access to the machine floor.

In turbine and compressor protection applications, the 16710-11 cable works in concert with Bently Nevada 3500 Series machinery protection systems for cross-platform signal validation, ensuring that both continuous monitoring and trip-level protection share a common, high-integrity signal source. Variable frequency drives (VFDs) monitoring motor vibration signatures also benefit from this data chain, as vibration data from the 16710-11 signal path can be correlated with drive output frequency data to identify resonance conditions and bearing wear patterns before they escalate to unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — the inability to correlate machine health data from legacy vibration monitoring systems with modern PLC, SCADA, and MES platforms. The Bently Nevada 16710-11 interconnect cable, as the foundational signal link in the 3300 Series architecture, directly addresses this challenge by ensuring that the analog signal entering the monitoring system is clean, consistent, and free from electromagnetic interference that would otherwise corrupt downstream digital data.

In plants where multiple communication protocols coexist — Modbus RTU on the shop floor, PROFIBUS DP in the process area, and Ethernet/IP at the supervisory level — the 3300 Series monitor rack, fed by the 16710-11, acts as the protocol-agnostic data source that bridges field-level analog signals to any digital network layer. This eliminates the need for additional signal conditioning hardware and reduces the risk of data loss during protocol conversion.

For remote monitoring and diagnostics, the signal integrity provided by the 16710-11 ensures that vibration data transmitted to remote SCADA terminals or cloud-based analytics platforms accurately reflects machine condition, enabling predictive maintenance decisions based on real data rather than degraded or noisy signals. Production line transparency is further enhanced when vibration data from multiple machines — each connected via 16710-11 cables — is aggregated into a unified dashboard, giving plant managers a real-time view of overall equipment effectiveness (OEE) and machinery health across the entire facility.

System expansion is straightforward: additional 3300 Series monitor modules can be added to the rack, each connected via 16710-11 interconnect cables, without disrupting existing network configurations or requiring changes to SCADA or PLC programming. This scalability makes the 16710-11 a long-term investment in industrial connectivity infrastructure.

Industrial Connectivity FAQ

Q1: Does the Bently Nevada 16710-11 support direct digital protocol communication such as Modbus or PROFIBUS?
The 16710-11 is an analog interconnect cable that transmits raw vibration signals from proximity probes to the 3300 Series monitor rack. Digital protocol communication (Modbus RTU, PROFIBUS DP, OPC-UA) is handled by the monitor rack’s output interfaces. The 16710-11 ensures signal integrity at the analog input stage, which is the foundation of accurate digital data output.

Q2: How does the 16710-11 contribute to network stability in a continuous monitoring environment?
The cable’s shielded construction minimizes electromagnetic interference (EMI) from adjacent power cables, VFDs, and motor starters — common sources of signal noise in industrial environments. Stable, low-noise analog input directly improves the reliability of digital outputs from the 3300 Series monitor, reducing false alarms and ensuring consistent SCADA data quality.

Q3: Is the Bently Nevada 16710-11 compatible with both 3300 Series and 3500 Series systems?
The 16710-11 is specifically designed for the 3300 Series platform. For 3500 Series applications, Bently Nevada offers dedicated interconnect cables matched to that system’s connector and signal specifications. Cross-series compatibility should be verified against the specific monitor module’s input requirements before installation.

Q4: What quality assurance and warranty coverage is provided with the 16710-11?
All Bently Nevada 16710-11 units supplied by ZYPLC are covered by a warranty and support terms confirmed before quote and undergo full functional inspection prior to shipment. Each unit is tested for signal continuity, shielding integrity, and connector fit to ensure it meets 3300 Series system specifications. Availability and shipment timing are confirmed by RFQ with complete export documentation for international shipments.

—
