Bently Nevada 16710-50 Industrial Network Interface for 3500 Series

Bently Nevada 16710-50: Industrial Data Link for 3500 Series Condition Monitoring Networks

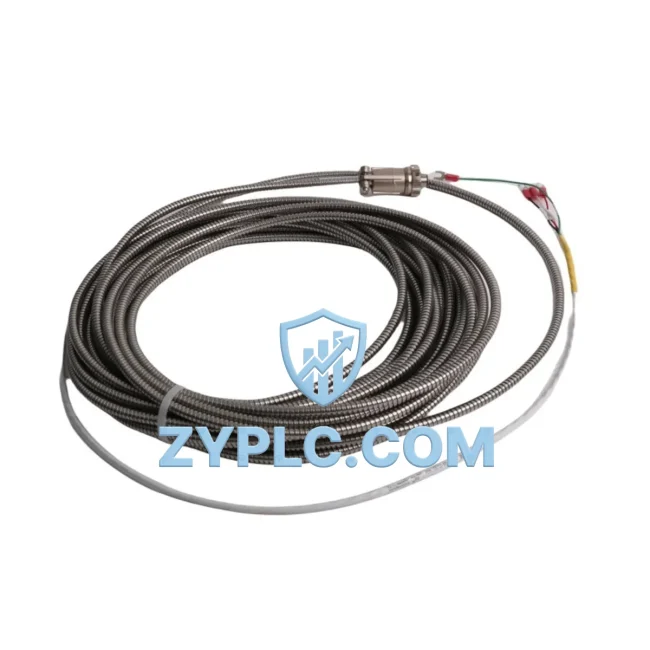

The Bently Nevada 16710-50 is a precision-engineered armored interconnect cable purpose-built for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In modern smart factory environments, reliable signal transmission between field-mounted transducers and rack-based monitoring modules is the foundation of any effective predictive maintenance strategy. The 16710-50 delivers exactly that — a ruggedized, shielded data link that ensures low-noise, high-integrity signal flow from rotating machinery sensors to the 3500 rack system, enabling real-time vibration analysis, alarm processing, and remote diagnostics across the plant network.

As industrial facilities transition toward fully connected automation architectures — integrating SCADA platforms, DCS controllers, HMI workstations, and edge computing gateways — the physical signal path between transducer and monitoring system becomes a critical node in the data chain. The 16710-50 interconnect cable is designed to maintain signal fidelity across this path, supporting the continuous data acquisition that feeds into higher-level analytics and condition-based maintenance workflows.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the Bently Nevada 16710-50 cable forms the first physical segment of the condition monitoring data chain. Proximity probes or accelerometers mounted on turbines, compressors, pumps, or motors generate continuous analog signals that travel through the 16710-50 to the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor / Seismic Monitor module seated in the 3500 rack. From there, the 3500 rack’s 3500/20 Rack Interface Module (RIM) aggregates all channel data and transmits it upstream via Modbus TCP or OPC-DA/UA to the plant’s SCADA layer.

At the SCADA level, systems such as GE iFIX, Wonderware AVEVA System Platform, or Emerson DeltaV receive the processed vibration vectors, gap voltages, and speed signals. Operators at HMI workstations — often running on Siemens WinCC or Rockwell FactoryTalk View — can monitor real-time waveform data, trend plots, and alarm states without leaving the control room. When a bearing wear signature or shaft imbalance event is detected, the 3500 rack triggers alarm outputs that can be wired directly to a Rockwell Automation ControlLogix PLC or a Siemens S7-400 safety controller for automated shutdown sequences.

For facilities deploying edge computing architectures, the data path extends further: a Moxa MGate MB3480 Modbus-to-EtherNet/IP gateway or a Hilscher netTAP NT 100 protocol converter can bridge the 3500 rack’s serial Modbus output to an EtherNet/IP or PROFINET backbone, enabling seamless integration with Allen-Bradley remote I/O adapters or Siemens ET 200SP distributed I/O stations. An industrial managed Ethernet switch — such as the Hirschmann RS20 or Moxa EDS-510A — provides the network backbone that connects the monitoring rack, PLC controllers, HMI panels, and edge gateways into a unified plant network segment.

In multi-machine monitoring scenarios, multiple 16710-50 cables feed signals from different machine trains into a shared 3500 rack, with the 3500/15 Power Supply ensuring stable DC power to all monitor modules. The aggregated data is then forwarded to a System 1 Evolution condition monitoring software server, where machine health dashboards, alarm management, and long-term trend analysis are performed — completing the data loop from field sensor to enterprise asset management system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — where vibration data collected at the machine level never reaches the SCADA or ERP layer in a usable format. This happens when legacy analog cabling is poorly shielded, when signal attenuation over long cable runs corrupts waveform data, or when protocol mismatches between the monitoring rack and the plant network prevent data from flowing upstream.

The Bently Nevada 16710-50 directly addresses the first link in this chain. Its armored construction protects signal integrity in electrically noisy environments — motor drives, high-voltage switchgear, and variable frequency drives (VFDs) all generate electromagnetic interference that can corrupt unshielded analog signals. By maintaining clean signal transmission from transducer to monitor module, the 16710-50 ensures that the 3500 rack receives accurate data, which in turn supports reliable alarm setpoint evaluation and valid Modbus/OPC data export to the SCADA layer.

For sites pursuing production line transparency and remote monitoring, the 16710-50 is a foundational component. When combined with the 3500 rack’s network interface and a plant-wide industrial Ethernet infrastructure, it enables remote diagnostics from any authorized workstation — reducing the need for on-site inspection during normal operations and accelerating fault diagnosis during unplanned downtime events. System expansion is equally straightforward: additional 16710-50 cables and monitor modules can be added to the existing 3500 rack without disrupting live channels, supporting phased rollouts of condition monitoring across multiple machine trains.

Every Bently Nevada 16710-50 unit supplied by ZYPLC is sourced from verified supply channels, inspected upon receipt, and tested for continuity and shielding integrity before shipment. In-stock inventory ensures short lead times, and all units are covered by a 12-month warranty from the date of delivery.

Industrial Connectivity FAQ

Q1: Is the Bently Nevada 16710-50 compatible with all 3500 Series monitor modules?
The 16710-50 is designed for use with the Bently Nevada 3500 Series platform and is compatible with standard transducer input modules including the 3500/42M, 3500/44M, 3500/46M, and 3500/50M. Always verify connector type and cable length requirements against your specific rack configuration before ordering.

Q2: How does this cable support SCADA and remote monitoring integration?
The 16710-50 ensures clean analog signal delivery to the 3500 rack’s monitor modules. The rack then processes and exports data via Modbus TCP or OPC-UA to SCADA platforms, enabling real-time remote monitoring, alarm management, and trend analysis from any networked HMI or engineering workstation.

Q3: What is the warranty and pre-shipment testing policy?
All Bently Nevada 16710-50 units supplied by ZYPLC carry a 12-month warranty from the date of shipment. Each unit undergoes continuity and shielding integrity testing before dispatch to ensure it meets specification upon arrival at your facility.

Q4: Can the 3500 Series system be expanded without replacing existing 16710-50 cabling?
Yes. The 3500 Series is a modular platform. Additional monitor modules and corresponding 16710-50 interconnect cables can be added to vacant rack slots without interrupting existing live monitoring channels, making it straightforward to expand coverage to additional machine trains as your condition monitoring program grows.
