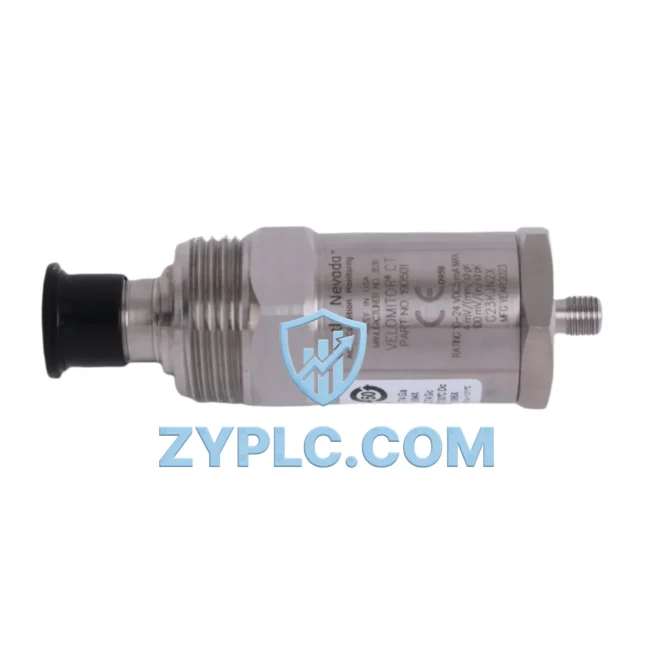

The Bently Nevada 190501-12-00-04 is a high-performance Velomitor CT velocity transducer engineered for continuous vibration and velocity monitoring in rotating machinery environments. Designed to integrate seamlessly into modern smart factory architectures, this sensor serves as a critical front-end data acquisition node — converting mechanical vibration signals into precise analog voltage outputs that feed directly into condition monitoring systems, PLC controllers, and SCADA platforms. Whether deployed on turbines, compressors, pumps, or motors, the 190501-12-00-04 delivers the real-time signal integrity that industrial data chains depend on.

In a connected automation environment, the data journey begins at the machine surface. The 190501-12-00-04 captures broadband velocity signals (typically 10 Hz to 1,000 Hz) and transmits a 4–20 mA or voltage analog output to the nearest signal conditioning module or I/O interface. From there, the signal is routed through Bently Nevada’s 3500 Series Machinery Protection System rack — a modular platform that accepts inputs from multiple transducer types including proximity probes, accelerometers, and the Velomitor CT family — before being forwarded upstream via Modbus RTU or Modbus TCP/IP to the plant DCS or SCADA layer.

Network Communication Table

Connected Automation Data Flow

The 190501-12-00-04 Velomitor CT sits at the origin of a multi-layer industrial data chain. At the field level, it mounts directly onto bearing housings or machine casings, capturing casing velocity in real time. The analog signal is then routed into a Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which performs signal conditioning, alarm threshold comparison, and relay output for machine trip logic. This module communicates upstream through the 3500 rack backplane to the 3500/92 Communication Gateway, which bridges the proprietary rack data to Modbus TCP/IP or OPC-DA — enabling integration with plant-level SCADA systems such as GE iFIX, Wonderware System Platform, or Ignition by Inductive Automation.

For facilities running distributed control architectures, the conditioned velocity data can be simultaneously delivered to a Rockwell Automation ControlLogix PLC via an EtherNet/IP adapter module, or to a Siemens S7-1500 PLC through a PROFIBUS DP gateway. Remote I/O nodes — such as the Bently Nevada TDXnet Remote Data Concentrator — allow the 190501-12-00-04 signal to be aggregated alongside proximity probe data from 3300 XL 8mm Proximity Transducer systems, creating a unified vibration dataset across multiple machine trains without additional cabling runs to the control room.

At the HMI layer, operators interact with live velocity trend data through panel-mounted displays connected to the SCADA gateway, while the ADRE 408 DSPi Data Acquisition Unit performs high-speed waveform capture for spectrum analysis and orbit plot generation. Alarm events triggered by the 190501-12-00-04 — such as high-velocity exceedances on a centrifugal compressor — are automatically propagated through the 3500 rack relay outputs to the plant DCS, initiating automated shutdown sequences or maintenance work orders in the CMMS. Edge computing nodes running the Bently Nevada System 1 Evolution software platform further process the raw velocity data for predictive analytics, trend forecasting, and remote diagnostics accessible from any web browser or mobile device.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — machines equipped with analog sensors that cannot communicate natively with modern Ethernet-based control networks. The Bently Nevada 190501-12-00-04 addresses this by serving as a standards-compliant analog front end that pairs with protocol conversion gateways to bridge the gap between field-level vibration data and plant-wide digital infrastructure.

In sites where multiple machine protection systems from different generations coexist, the Velomitor CT’s ICP-compatible output ensures backward compatibility with older Bently Nevada 3300 Series racks while simultaneously supporting integration into the newer 3500 Series platform. This dual compatibility eliminates the need for full system replacement during plant upgrades, reducing capital expenditure and minimizing production downtime during migration phases.

For remote monitoring applications — offshore platforms, pipeline compressor stations, or unmanned substations — the 190501-12-00-04 feeds data through cellular or fiber-connected SCADA gateways, enabling 24/7 remote diagnostics without on-site personnel. Alarm thresholds configured in the 3500 rack relay real-time alerts to control room operators and maintenance engineers via email or SMS integration through the SCADA middleware layer, ensuring rapid response to developing machine faults before they escalate to unplanned shutdowns.

Production line transparency is further enhanced by integrating velocity data from the 190501-12-00-04 into OEE (Overall Equipment Effectiveness) dashboards, where vibration health scores are correlated with production throughput metrics. This closed-loop data flow — from sensor to PLC to SCADA to ERP — transforms isolated machine data into actionable business intelligence, supporting the transition from reactive to predictive maintenance strategies across the entire plant.

Every Bently Nevada 190501-12-00-04 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output sensitivity, frequency response, and connector integrity. Stock is maintained for prompt dispatch, and all units are covered by a 12-month warranty from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 190501-12-00-04 support when integrated into a SCADA system?
The 190501-12-00-04 itself outputs an analog ICP/IEPE voltage signal. When connected to a Bently Nevada 3500 Series rack with a 3500/92 Communication Gateway, the system supports Modbus RTU, Modbus TCP/IP, and OPC-DA, enabling direct integration with SCADA platforms including GE iFIX, Wonderware, and Ignition without additional protocol converters.

Q2: How does the Velomitor CT maintain network stability in high-vibration or electrically noisy environments?
The 190501-12-00-04 features a hermetically sealed stainless steel housing with integral EMI shielding. The ICP constant-current power supply topology rejects common-mode noise on the signal cable, ensuring stable analog transmission even in environments with heavy VFD switching noise or proximity to high-voltage bus bars.

Q3: Can the 190501-12-00-04 be used to expand an existing Bently Nevada 3300 Series system, or is it only compatible with the 3500 platform?
The Velomitor CT is compatible with both the 3300 XL and 3500 Series monitor racks, as well as the ADRE 408 DSPi portable data acquisition system. This cross-platform compatibility makes it an ideal choice for phased system expansions where older and newer Bently Nevada hardware coexist on the same machine train.

Q4: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Each 190501-12-00-04 unit is functionally tested prior to dispatch, verifying sensitivity (mV/in/s), frequency response linearity, and connector pin integrity. The 12-month warranty covers manufacturing defects and performance deviations from published specifications. ZYPLC maintains ready stock for fast global shipping, with typical lead times of 3–7 business days for in-stock units.
