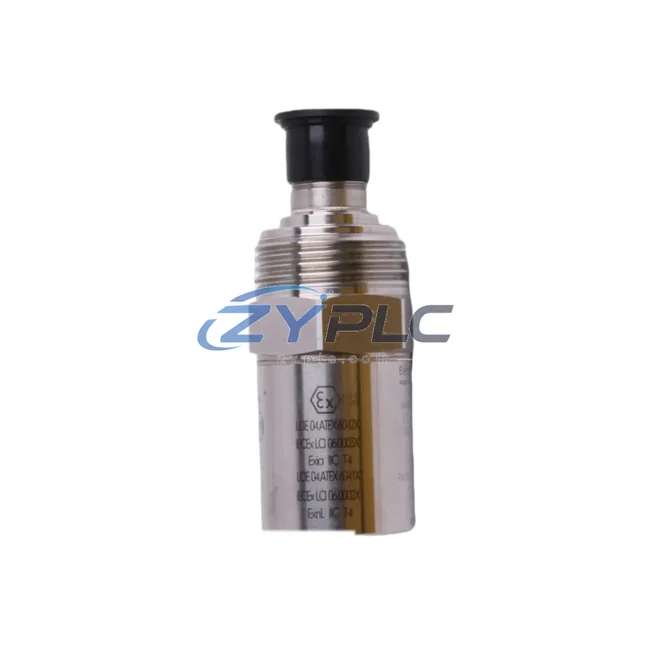

Bently Nevada 190501-13-00-00 Velocity Transducer for Velomitor CT

Bently Nevada 190501-13-00-00 Velocity Transducer: Compatibility and Replacement Notes

The Bently Nevada 190501-13-00-00 Velomitor CT is a high-performance piezoelectric velocity transducer engineered for seamless integration into layered industrial automation and machinery protection architectures. Unlike standalone vibration sensors, this transducer is designed to function as a precision signal-source node within a complete control system hierarchy — feeding real-time velocity data upward through signal conditioning, monitoring, and control layers to enable coordinated machinery protection, predictive maintenance, and process continuity across rotating equipment platforms.

In modern industrial control environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and heavy manufacturing — machinery protection is not a single-device function. It is a system-level discipline. The 190501-13-00-00 is purpose-built to serve this discipline, delivering broadband velocity signals (typically 10 Hz to 1,000 Hz) with the signal fidelity and environmental robustness required by Bently Nevada’s 3500 Series Machinery Protection System and compatible monitoring platforms. Its compact, hermetically sealed stainless steel housing ensures reliable operation in high-vibration, high-temperature, and chemically aggressive installation environments.

Product Specification Table

System Compatibility Notes

The 190501-13-00-00 Velomitor CT achieves its full value when integrated within a coordinated Bently Nevada machinery protection architecture. At the monitoring layer, the transducer connects directly to the Bently Nevada 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor, which processes the raw velocity signal into alarm and danger setpoints. These monitor modules reside within the Bently Nevada 3500 Rack — a modular backplane system that also accommodates the 3500/15 Power Supply Module, providing stable, conditioned DC power to all installed monitor cards and connected transducers.

System-level communication is handled by the 3500/22M Transient Data Interface (TDI) or the 3500/92 Communication Gateway Module, which bridges the machinery protection rack to plant-level DCS or SCADA networks via Modbus TCP, Ethernet/IP, or OPC-DA/UA protocols. This enables the velocity data captured by the 190501-13-00-00 to be consumed by higher-level control platforms — such as a GE Mark VIe Turbine Control System or a Honeywell Experion PKS DCS — for integrated process response and automated shutdown logic.

At the field wiring layer, the transducer’s cable terminates at Bently Nevada 3500 I/O Module terminal blocks, where signal integrity is maintained through shielded, twisted-pair cabling routed in dedicated instrumentation cable trays. For installations requiring redundant vibration monitoring, a second 190501-13-00-00 can be mounted at 90° to the primary sensor, feeding a redundant monitor channel within the same 3500 rack — a configuration commonly specified for critical turbine and compressor trains in API 670-compliant protection systems.

At the human-machine interface layer, alarm and trend data from the 3500 system is visualized through System 1 Evolution Software (Bently Nevada’s condition monitoring platform), enabling maintenance engineers to correlate velocity trends with process variables, bearing temperatures, and rotor displacement data captured by companion Bently Nevada 3300 XL 8mm Proximity Transducers. This multi-parameter view is essential for root-cause analysis and predictive maintenance scheduling in rotating equipment fleets.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine protection systems, the 190501-13-00-00 is mounted on bearing housings to detect casing vibration. Its output feeds the 3500/40M monitor, which triggers automatic turbine trip via hardwired relay outputs to the turbine control system when velocity exceeds danger setpoints — preventing catastrophic bearing failure during load transients or startup events.

Petrochemical & Refining: On centrifugal compressor trains in ethylene or LNG plants, the Velomitor CT provides continuous casing velocity monitoring alongside proximity probes measuring shaft displacement. The combined signal set enables the 3500 system to distinguish between rotor-dynamic instability and structural resonance — critical for safe operation under varying suction pressure and molecular weight conditions.

Water Treatment & Pumping Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure benefit from the 190501-13-00-00’s robust IP67 housing, which withstands wash-down environments and high ambient humidity. Velocity data is trended over time to identify impeller wear, cavitation onset, and bearing degradation before unplanned outages occur.

Mining & Mineral Processing: Ball mills, SAG mills, and conveyor drive gearboxes in mining operations generate broadband vibration signatures that the 190501-13-00-00 captures with high fidelity across its full 10–1,000 Hz range. Integration with plant SCADA via the 3500/92 gateway allows remote monitoring of multiple mill drives from a central control room, reducing the need for manual field inspections in hazardous areas.

Metallurgy & Steel Production: Rolling mill drives and continuous casting equipment require vibration monitoring under extreme thermal and electromagnetic interference conditions. The hermetically sealed stainless steel housing of the 190501-13-00-00 provides the environmental protection needed for reliable long-term operation in these demanding installations.

Product Compatibility FAQ

Q1: Is the 190501-13-00-00 directly compatible with the Bently Nevada 3500/40M and 3500/42M monitor modules without additional signal conditioning?
Yes. The 190501-13-00-00 Velomitor CT outputs a voltage signal that is natively compatible with the seismic input channels of the 3500/40M and 3500/42M monitor modules. No external signal conditioner or transmitter is required. The monitor module supplies the necessary loop power (18–30 VDC) to the transducer via the field wiring terminals, simplifying installation and reducing potential signal degradation points in the measurement chain.

Q2: Can this transducer be used in a redundant monitoring architecture for API 670-compliant machinery protection systems?
Yes. The 190501-13-00-00 is suitable for use in dual-redundant velocity monitoring configurations as specified by API 670 for critical rotating machinery. Two transducers are mounted at orthogonal positions on the bearing housing, each connected to an independent monitor channel within the 3500 rack. The 3500 system’s voting logic can be configured for 1-out-of-2 or 2-out-of-2 alarm/trip logic, providing the redundancy and fault tolerance required for uninterrupted protection of critical assets.

Q3: What warranty and long-term supply support does ZYPLC provide for the 190501-13-00-00?
ZYPLC provides a warranty terms confirmed during quotation on the 190501-13-00-00, covering manufacturing defects and functional performance under normal operating conditions. Our inventory is maintained to support both immediate project requirements and long-term spare parts programs for installed machinery protection systems. For engineering support, system compatibility verification, or volume procurement inquiries, contact our technical sales team directly.
