Bently Nevada 200155-03-05 Vibration Monitor Trendmaster Pro

Bently Nevada 200155-03-05 Vibration Monitor: Control System and Coordinated Upstream-Downstream Integration

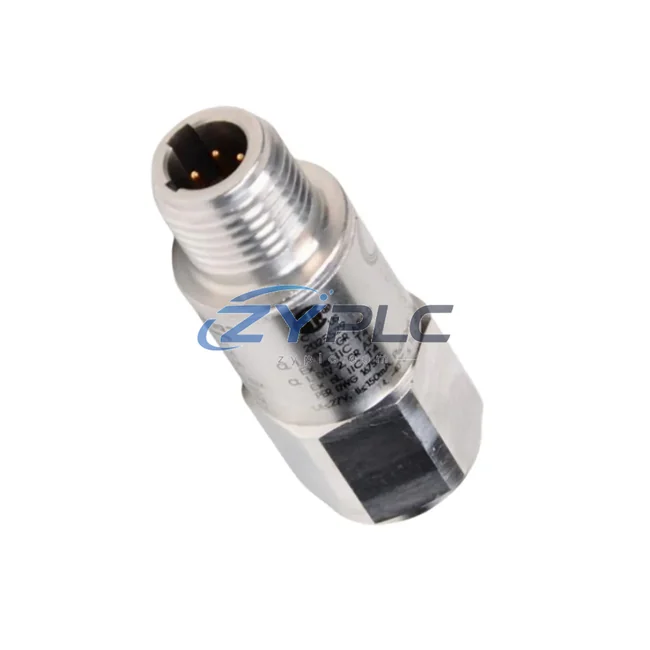

The Bently Nevada 200155-03-05 is a precision vibration monitoring module engineered for deployment within the Trendmaster Pro continuous monitoring platform. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and heavy manufacturing — machinery protection is not a standalone function. It is a deeply integrated layer within a multi-tier control architecture. The 200155-03-05 is designed with this architectural reality in mind, serving as a critical node between the physical machine layer and the supervisory control and data acquisition (SCADA) or distributed control system (DCS) layer above it.

Unlike discrete vibration sensors that deliver raw analog signals requiring external conditioning, the 200155-03-05 operates as a system-compatible module within the Trendmaster Pro rack infrastructure. It processes transducer inputs — typically from proximity probes, accelerometers, or velocity sensors — and delivers conditioned, scaled data directly to the Trendmaster Pro data manager. This architecture eliminates intermediate signal conditioning hardware, reduces wiring complexity, and ensures that vibration data is available in a format immediately consumable by the plant’s DCS or historian system.

Product Specification Table

System Compatibility Notes

The 200155-03-05 does not operate in isolation. Its value is realized through coordinated integration with the full Trendmaster Pro system architecture and the broader plant control infrastructure. At the rack level, the module shares a common backplane with the Trendmaster Pro Data Manager (typically the 3500/22M or equivalent gateway module), which aggregates channel data and communicates upstream to the DCS or historian. Power is supplied through a dedicated Trendmaster Pro Power Supply Module, ensuring stable, isolated DC power to all monitoring modules in the rack — a critical requirement for accurate low-level vibration signal acquisition.

At the transducer interface layer, the 200155-03-05 connects directly to Bently Nevada 3300 XL proximity probe systems or compatible 330180 / 330500 series transducers, providing the physical sensing layer for shaft displacement, radial vibration, and axial position measurement. For applications requiring seismic or casing vibration monitoring, the module is equally compatible with Bently Nevada 330400 series velocity transducers and accelerometer inputs from the 330525 or equivalent series.

At the network and communication layer, the Trendmaster Pro data manager interfaces with plant-level systems via Modbus TCP/IP, OPC DA/UA, or proprietary Bently Nevada communication protocols, enabling seamless data flow to GE System 1 condition monitoring software or third-party SCADA platforms such as Wonderware, FactoryTalk, or Ignition. This system integration ensures that vibration data from the 200155-03-05 is not siloed within the machinery protection system but is available across the plant’s operational technology (OT) network for trend analysis, predictive maintenance scheduling, and process optimization.

For redundancy-critical applications — common in turbine protection, compressor monitoring, and generator bearing surveillance — the 200155-03-05 can be deployed in parallel with Bently Nevada 3500 series rack modules to provide dual-channel or dual-system redundancy. The 3500/40M proximitor I/O module and the 3500/42M Proximitor/Seismic Monitor serve as complementary protection layers, ensuring that a single module failure does not result in loss of machinery protection coverage. This redundant architecture is particularly important in API 670-compliant installations where continuous monitoring is a regulatory requirement.

At the human-machine interface layer, alarm states and vibration trend data from the 200155-03-05 are surfaced through Bently Nevada System 1 Evolution software or integrated into plant DCS operator stations, providing maintenance engineers and control room operators with real-time machinery health visibility. Integration with Allen-Bradley ControlLogix PLCs or Siemens S7-400 / S7-1500 controllers via the Trendmaster Pro data manager enables automated protective actions — such as turbine trip or pump shutdown — based on configurable vibration alarm thresholds.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine applications, the 200155-03-05 provides continuous shaft vibration monitoring across all bearing positions. Integrated with the plant DCS and turbine control system (TCS), it enables automated trip logic based on API 670 alarm setpoints, protecting multi-million-dollar rotating assets from catastrophic failure. The module’s compatibility with the Trendmaster Pro platform ensures that vibration data is available to both the machinery protection system and the plant historian simultaneously.

Petrochemical and Refinery Processing: In compressor trains and pump systems operating in hazardous area environments, the 200155-03-05 supports continuous monitoring of radial and axial vibration, providing early warning of rotor instability, bearing wear, and seal degradation. Its integration with DCS systems via the Trendmaster Pro data manager enables process engineers to correlate vibration trends with process variables — flow rate, pressure, temperature — for root cause analysis and predictive maintenance planning.

Water and Wastewater Treatment: Large centrifugal pumps and blower systems in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing failure before they result in unplanned downtime. The 200155-03-05, deployed within a Trendmaster Pro rack, provides the monitoring infrastructure required for condition-based maintenance programs, reducing maintenance costs and extending equipment service life.

Mining and Metallurgy: In ore processing plants, ball mills, crushers, and conveyor drive systems operate under extreme mechanical loads. The 200155-03-05 provides the vibration monitoring capability required to detect structural fatigue, gear mesh anomalies, and bearing defects in these high-load applications. Integration with plant SCADA systems enables automated alerts and maintenance work order generation based on vibration alarm events.

Packaging and Discrete Manufacturing: High-speed packaging lines and precision machining centers require vibration monitoring to maintain product quality and prevent tool or spindle damage. The 200155-03-05, as part of the Trendmaster Pro platform, provides the monitoring granularity required for these applications, with configurable alarm thresholds tailored to the specific vibration signature of each machine type.

Product Compatibility FAQ

Q1: Is the Bently Nevada 200155-03-05 compatible with existing Trendmaster Pro racks, and can it be added to an operational system without downtime?
A: Yes. The 200155-03-05 is designed for hot-swap installation within the Trendmaster Pro rack architecture. Modules can be inserted or replaced while the rack remains powered, provided the system’s data manager supports online configuration updates. This capability is critical for continuous-process industries where planned shutdowns are infrequent. Prior to installation, verify rack slot compatibility and firmware version alignment with the data manager to ensure seamless channel recognition and alarm configuration transfer.

Q2: How does the 200155-03-05 integrate with our existing DCS or SCADA platform, and what communication protocols are supported?
A: The 200155-03-05 communicates with the plant-level control and monitoring infrastructure through the Trendmaster Pro data manager, which serves as the communication gateway. Supported protocols include Modbus RTU/TCP, OPC DA, and OPC UA, enabling integration with major DCS platforms (Honeywell Experion, Emerson DeltaV, ABB 800xA) and SCADA systems (Wonderware InTouch, FactoryTalk View, Ignition). For GE System 1 users, native Bently Nevada protocol communication provides enhanced diagnostic data transfer beyond standard Modbus register mapping.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance and spare parts supply?
A: The warranty terms confirmed during quotation covers manufacturing defects, component failure, and functional non-conformance under normal operating conditions. Warranty claims are processed through ZYPLC’s technical support team, with replacement or repair turnaround coordinated to minimize system downtime. For long-term maintenance planning, ZYPLC maintains inventory of Bently Nevada Trendmaster Pro modules and compatible transducer systems, enabling rapid spare parts supply for both scheduled maintenance and emergency replacement scenarios. Contact our engineering team at plc.sales@zyplc.com or +86 19859288691 for system compatibility verification, bulk procurement, and long-term supply agreements.
