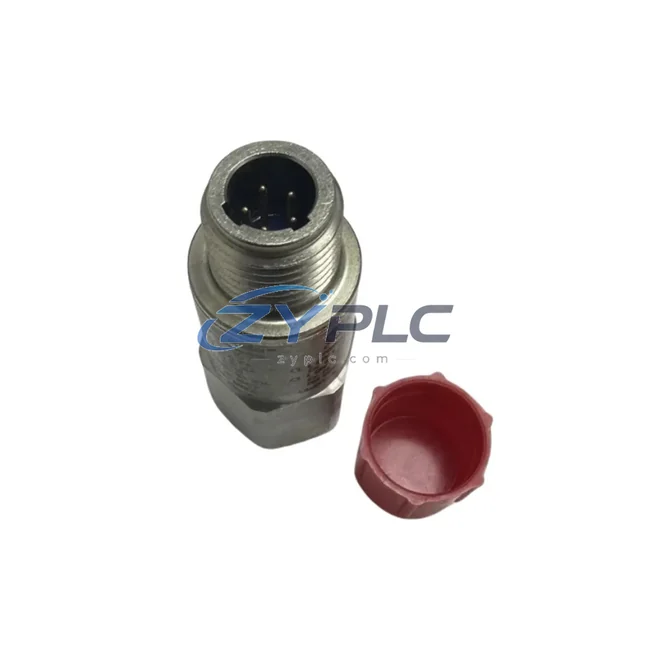

Bently Nevada 200157-02-CN Enveloping Accelerometer for TrendMaster Pro

Bently Nevada 200157-02-CN Enveloping Accelerometer for TrendMaster Pro

The Bently Nevada 200157-02-CN is a high-performance enveloping accelerometer engineered for seamless integration within the TrendMaster Pro continuous online monitoring architecture. Unlike standalone vibration sensors, this module is designed from the ground up to function as a precision signal-acquisition node within a layered industrial control system — delivering consistent, high-fidelity vibration data across the control layer, I/O layer, and network layer simultaneously. Its role in the overall system hierarchy is not merely to detect mechanical anomalies, but to provide the contextual signal integrity that enables upstream processors, historians, and HMI platforms to make accurate, time-stamped diagnostic decisions.

In modern rotating machinery protection systems, the 200157-02-CN occupies a critical position at the field instrumentation layer. It interfaces directly with the TrendMaster Pro I/O modules — such as the 3500/42M Proximitor/Seismic Monitor and the 3500/45 Position Monitor — feeding conditioned enveloping signals into the system’s data acquisition backbone. This architecture ensures that bearing fault frequencies, gear mesh anomalies, and early-stage fatigue signatures are captured with the spectral resolution required for predictive maintenance decisions, rather than reactive shutdowns.

From a system architecture perspective, the 200157-02-CN supports the full signal chain from transducer to control room. The enveloped acceleration signal it produces is for demodulation within the TrendMaster Pro rack-based processing units, which then relay trend data via Modbus TCP or OPC-DA to the plant DCS or SCADA layer. This communication pathway ensures that vibration health data is available not only to condition monitoring specialists but also to process control engineers managing broader plant Automation strategies. The result is a tightly integrated monitoring loop that reduces diagnostic latency and improves overall system responsiveness.

The 200157-02-CN is also compatible with the broader Bently Nevada 3500 Series rack infrastructure, allowing it to be deployed alongside modules such as the 3500/20 Rack Interface Module, 3500/15 Power Supply, and 3500/22M Transient Data Interface. This cross-compatibility means that facilities already operating a 3500 Series protection system can extend their monitoring capability to include enveloping-based bearing diagnostics without requiring a separate instrumentation platform. The result is a unified, scalable architecture that reduces wiring complexity, simplifies calibration workflows, and lowers total cost of ownership over the system lifecycle.

For facilities operating in redundant control environments, the 200157-02-CN supports dual-channel signal routing configurations that align with the redundancy philosophy of the TrendMaster Pro platform. When paired with the TrendMaster Pro Remote Multiplexer and appropriate signal conditioning modules, the accelerometer’s output can be monitored by both the primary and backup processing channels simultaneously — ensuring that no vibration event goes undetected even during planned maintenance windows or partial system shutdowns. This redundancy capability is particularly valuable in critical rotating equipment applications such as steam turbines, compressors, and large induction motors where unplanned downtime carries significant operational and financial consequences.

Installation and commissioning of the 200157-02-CN follow the standard Bently Nevada mounting and cabling protocols, which are consistent across the TrendMaster Pro and 3500 Series platforms. Engineers familiar with the 330500 Proximity Probe System or the 330180 Proximity Transducer System will find the mechanical and electrical integration process straightforward, as the accelerometer uses the same connector standards and shielded cable routing conventions. This consistency across product families significantly reduces commissioning time and minimizes the risk of wiring errors during initial system startup or post-maintenance recommissioning.

Long-term maintenance efficiency is another key advantage of deploying the 200157-02-CN within a TrendMaster Pro architecture. Because the module communicates its health status and signal quality metrics back to the rack processor, maintenance teams can identify sensor degradation trends before they result in false alarms or missed fault detections. This self-diagnostic capability, combined with the system’s ability to timestamp and log all configuration changes via the System 1 software platform, creates a comprehensive audit trail that supports both regulatory compliance and internal reliability engineering programs.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that the 200157-02-CN performs to Bently Nevada’s published specifications throughout the warranty period. Our inventory is sourced through verified industrial supply channels, and each unit undergoes pre-shipment inspection to confirm physical integrity and connector condition. For system integrators and OEM partners requiring multiple units for large-scale deployments, ZYPLC maintains buffer stock to support project timelines without lead-time risk.

Product Specification Table

System Compatibility Notes

The 200157-02-CN achieves its full diagnostic potential when deployed as part of a coordinated TrendMaster Pro or 3500 Series control system architecture. At the rack level, the 3500/20 Rack Interface Module provides the communication backbone that connects field-level sensor data to the plant network, while the 3500/15 Power Supply ensures stable, conditioned power delivery to all rack-mounted modules — a prerequisite for accurate low-amplitude vibration signal acquisition. The 3500/42M Proximitor/Seismic Monitor and 3500/45 Position Monitor complement the enveloping accelerometer by providing shaft relative motion and axial position data, creating a multi-parameter machinery health picture within a single rack infrastructure.

At the network layer, the TrendMaster Pro Remote Multiplexer aggregates signals from multiple field sensors — including the 200157-02-CN — and routes them to the central processing unit for trend analysis and alarm management. This multiplexed architecture reduces cabling infrastructure costs while maintaining the signal integrity required for high-frequency enveloping analysis. The 3500/22M Transient Data Interface further extends the system’s capability by capturing high-resolution transient waveforms during machine startup and shutdown events, providing the engineering team with the data needed to assess rotor dynamics and bearing condition across the full speed range.

For human-machine interface integration, the System 1 software platform serves as the primary visualization and configuration tool, displaying trend plots, alarm states, and waveform data from the 200157-02-CN alongside data from 330500 Proximity Probe Systems and 330180 Proximity Transducer Systems. This unified HMI layer eliminates the need for separate monitoring workstations for different sensor types, streamlining operator workflows and reducing training requirements. At the execution layer, alarm outputs from the TrendMaster Pro rack can be wired directly to relay modules or integrated with the plant DCS via the 3500/32 4-Channel Relay Module, enabling automated protective actions — such as turbine trip or compressor unload — based on vibration threshold exceedances detected by the 200157-02-CN.

Industrial Application Notes

In power generation facilities, the 200157-02-CN is deployed on steam turbine bearing housings and generator end shields, where early detection of rolling element bearing defects is critical to preventing forced outages. The enveloping technique it employs is particularly effective at identifying sub-surface fatigue cracks in bearing races before they propagate to visible spalling, giving maintenance teams a planning window of weeks to months rather than hours.

In petrochemical and refinery environments, the accelerometer is used on centrifugal compressors, reciprocating pumps, and cooling tower fan drives — equipment categories where bearing failures can trigger process upsets, environmental releases, or safety system activations. The 200157-02-CN’s compatibility with the TrendMaster Pro continuous monitoring architecture means that vibration data is available 24/7 without requiring manual data collection rounds, reducing both labor costs and the risk of missed fault progression between inspection intervals.

In water treatment and municipal utility applications, the 200157-02-CN is integrated into pump station monitoring systems where the TrendMaster Pro platform provides remote monitoring capability over Ethernet, allowing a single reliability engineer to oversee dozens of pump assets across multiple geographically dispersed sites from a central control room. This remote monitoring architecture is equally applicable to mining and mineral processing operations, where conveyor drives, ball mill pinion bearings, and slurry pump assemblies represent high-consequence failure points that benefit from continuous enveloping-based condition monitoring.

In packaging and discrete manufacturing lines, the 200157-02-CN supports predictive maintenance programs on high-speed spindles, servo-driven axes, and gearbox assemblies, where the enveloping technique provides earlier fault detection than broadband vibration measurements alone. The module’s integration with the TrendMaster Pro I/O layer ensures that bearing health data is synchronized with production cycle data from the plant PLC, enabling maintenance scheduling to be aligned with planned production downtime rather than reactive emergency repairs.

Product Compatibility FAQ

Q1: Is the 200157-02-CN directly compatible with existing 3500 Series rack infrastructure, or does it require a dedicated TrendMaster Pro rack?
The 200157-02-CN is designed primarily for the TrendMaster Pro monitoring architecture but is signal-compatible with 3500 Series I/O modules that accept standard accelerometer inputs. For facilities with existing 3500 Series racks, the accelerometer can typically be integrated via the appropriate input module without requiring a separate TrendMaster Pro rack, provided the rack firmware and configuration software versions support enveloping signal processing. ZYPLC recommends confirming rack module compatibility with your system configuration documentation before deployment.

Q2: What commissioning steps are required to validate the 200157-02-CN’s signal integrity within a TrendMaster Pro architecture?
Commissioning validation should include a bias voltage check at the accelerometer output connector, a frequency response verification using a calibrated shaker or reference signal, and a review of the enveloping band configuration within the TrendMaster Pro software to ensure the selected frequency bands match the bearing fault frequencies of the monitored machine. All configuration parameters should be documented in the System 1 database to support future maintenance audits and warranty claims.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC handle warranty claims for the 200157-02-CN?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions as defined by Bently Nevada’s published specifications for the 200157-02-CN. Warranty claims are initiated by contacting ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the unit’s serial number, purchase documentation, and a description of the observed failure mode. ZYPLC will arrange for unit inspection and, where the failure is confirmed as warranty-eligible, will provide a replacement unit or repair service within an agreed lead time to minimize system downtime.
