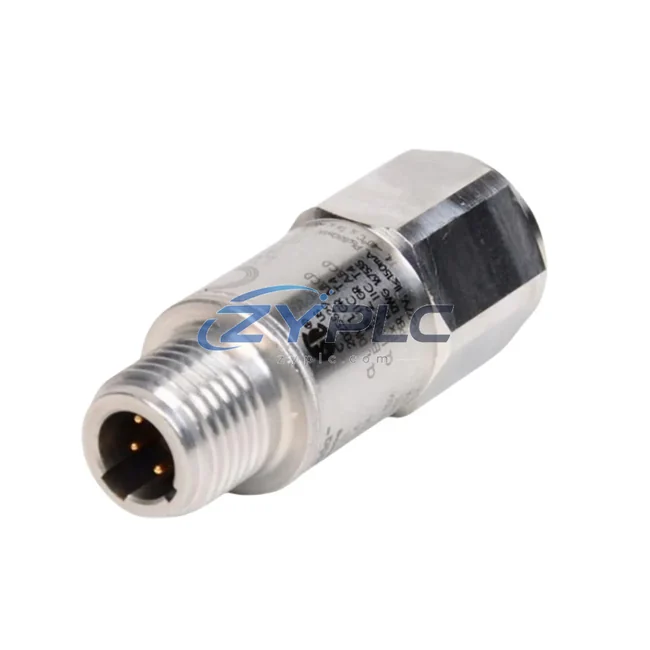

The Bently Nevada 200157-04-CN Enveloping Accelerometer is a precision vibration sensing device engineered for seamless integration within the Trendmaster Pro condition monitoring platform. Designed to operate at the intersection of field-level signal acquisition and upper-layer SCADA analytics, this accelerometer delivers high-fidelity vibration data across rotating machinery, enabling real-time diagnostics, predictive maintenance, and continuous asset health visibility throughout the smart factory environment.

In modern industrial facilities, the integrity of the data chain — from raw mechanical vibration at the bearing housing to actionable insight on the operator’s HMI screen — depends entirely on the quality and compatibility of every node in the network. The 200157-04-CN is purpose-built to anchor that chain at the sensor layer, converting mechanical enveloping signals into clean, conditioned outputs that feed directly into the Trendmaster Pro 3500 Series monitoring rack. From there, data flows upstream through the plant’s DCS or SCADA backbone, where engineers can track spectral trends, configure alarm thresholds, and initiate remote diagnostic routines without interrupting production.

Procurement teams and automation engineers sourcing replacement or expansion units for Bently Nevada installations will find the 200157-04-CN fully compatible with existing Trendmaster Pro wiring infrastructure, eliminating costly re-engineering and minimizing commissioning downtime. Each unit shipped by ZYPLC undergoes pre-shipment functional verification and is covered by a warranty terms confirmed during quotation, ensuring confidence from delivery through integration.

Compatibility & Integration Notes

Connected Automation Data Flow

The 200157-04-CN sits at the origin of a multi-layer industrial data flow. Mounted directly on the bearing housing of a pump, compressor, or gearbox, it captures high-frequency vibration envelopes that are invisible to standard velocity sensors. The conditioned signal is routed to the Trendmaster Pro Data Acquisition Module (DAM), which digitizes and time-stamps each reading before passing it to the Trendmaster Pro System Manager over the plant’s internal communication bus.

Within the Trendmaster Pro architecture, the System Manager aggregates inputs from multiple accelerometers — including companion units such as the Bently Nevada 200157-01 and 200157-02 standard accelerometers — and correlates vibration data with process variables sourced from connected Bently Nevada 3500/42M proximity transducer systems. This multi-channel correlation allows engineers to distinguish mechanical looseness from imbalance, and bearing wear from misalignment, all within a single monitoring session.

Upstream, the Trendmaster Pro gateway bridges the condition monitoring network to the plant’s broader automation infrastructure. Integration with GE System 1 Evolution software enables advanced spectral analysis and machine train modeling, while OPC-DA and OPC-UA export paths connect seamlessly to OSIsoft PI historians and third-party SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation. Alarm states generated by the 200157-04-CN’s envelope readings can trigger automated responses in the plant’s DCS (Distributed Control System), initiating speed reductions, isolation valve commands, or maintenance work orders without operator intervention.

For facilities operating hybrid automation environments, the Trendmaster Pro gateway also supports integration with Allen-Bradley ControlLogix PLCs via EtherNet/IP, and with Siemens S7-300/S7-400 controllers via PROFIBUS DP adapters, ensuring that vibration alarm data reaches the PLC layer for interlock logic execution. Remote I/O panels equipped with Bently Nevada 3500/92 communication gateway modules further extend the monitoring network to geographically distributed assets, enabling centralized SCADA visibility across multiple plant areas from a single engineering workstation.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is the fragmentation of vibration data from the rest of the plant’s automation ecosystem. When accelerometers operate as standalone instruments — disconnected from the PLC, DCS, or SCADA layer — maintenance teams are forced to rely on manual data collection rounds, periodic downloads, and offline trend analysis. This creates dangerous blind spots between inspection intervals, particularly for high-speed rotating equipment where bearing failure can progress from early-stage defect to catastrophic breakdown within hours.

The Bently Nevada 200157-04-CN, integrated within the Trendmaster Pro platform, eliminates this isolation by establishing a continuous, bidirectional data link between the sensor and the plant’s decision-making systems. Vibration envelope data is streamed in real time to the SCADA historian, where it is time-correlated with process parameters such as flow rate, temperature, and motor current. This correlation enables condition-based maintenance scheduling that is far more precise than calendar-based approaches, reducing unnecessary maintenance interventions while ensuring that genuine fault conditions are never missed.

Protocol unification is another critical benefit. In facilities where legacy 4–20 mA instrumentation coexists with modern Ethernet-based automation networks, the Trendmaster Pro gateway acts as a protocol bridge, translating analog vibration signals into digital data packets compatible with OPC, Modbus TCP, and EtherNet/IP. This allows the 200157-04-CN’s output to be consumed by any SCADA, MES, or ERP system in the plant hierarchy, supporting full production line transparency and enabling Industry 4.0 digital twin applications.

System scalability is built into the Trendmaster Pro architecture. As production capacity expands, additional 200157-04-CN accelerometers can be added to the monitoring network without requiring changes to the SCADA configuration or PLC logic, provided the DAM channel capacity is observed. This plug-and-extend design philosophy significantly reduces the engineering cost of monitoring network expansion and supports phased smart factory rollouts.

Industrial Connectivity FAQ

Q1: What is the communication latency between the 200157-04-CN and the SCADA system?
Within the Trendmaster Pro architecture, vibration envelope data is updated at the DAM scan rate, typically configurable between 1 and 10 seconds per channel. Data is available at the SCADA historian within one scan cycle of acquisition, making it suitable for near-real-time alarm monitoring and trend analysis. For applications requiring sub-second response, dedicated relay outputs from the Trendmaster Pro rack can be wired directly to PLC digital inputs for immediate interlock action.

Q2: Is the 200157-04-CN compatible with non-Bently Nevada SCADA and DCS platforms?
Yes. While the 200157-04-CN is natively designed for the Trendmaster Pro platform, the Trendmaster Pro System Manager supports OPC-DA, OPC-UA, and Modbus TCP data export, enabling integration with any SCADA or DCS platform that supports these standard industrial protocols. Compatibility has been validated with Wonderware, Ignition, Emerson DeltaV, Honeywell Experion, and ABB 800xA systems.

Q3: How is network stability maintained in high-EMI industrial environments?
The 200157-04-CN features shielded cable compatibility and is designed for installation in accordance with Bently Nevada’s EMC guidelines, which specify cable routing separation from high-voltage power conductors and proper grounding at the DAM input terminal. The Trendmaster Pro DAM includes input filtering to reject common-mode noise, ensuring signal integrity even in environments with variable-frequency drives, arc welding equipment, and high-current motor starters operating nearby.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every Bently Nevada 200157-04-CN unit supplied by ZYPLC is subject to pre-shipment functional verification, including sensitivity check, frequency response validation, and connector integrity inspection. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Warranty claims are processed directly through ZYPLC’s technical support team, with replacement or repair turnaround coordinated to minimize plant downtime. Contact us at plc.sales@zyplc.com or +86 19859288691 for warranty registration and support.
