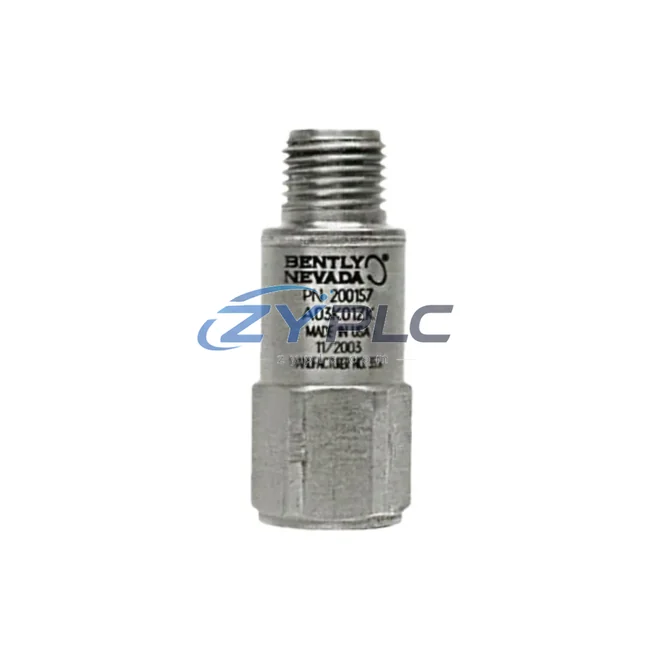

Bently Nevada 200157-06-CN Vibration Monitor for Trendmaster Pro

Bently Nevada 200157-06-CN Vibration Monitor for Trendmaster Pro

The Bently Nevada 200157-06-CN is a precision vibration monitoring module engineered for seamless integration within the Trendmaster Pro distributed condition monitoring platform. Rather than functioning as a standalone instrument, this module occupies a critical node within a layered industrial control architecture — bridging the gap between rotating machinery field signals and the supervisory control and data acquisition (SCADA) or distributed control system (DCS) layers that govern plant-wide operations. Understanding its role within the full system hierarchy is essential for engineers designing reliable, scalable, and maintainable condition monitoring solutions across rotating equipment-intensive industries.

In modern industrial facilities — whether in power generation, petrochemical refining, water treatment, mining, metallurgy, or continuous process manufacturing — vibration monitoring is not an isolated function. It is a deeply integrated layer of the overall automation architecture. The 200157-06-CN module connects directly to proximity probes, accelerometers, or velocity transducers mounted on critical rotating assets such as turbines, compressors, pumps, and fans. Its conditioned output signals feed into the Trendmaster Pro system’s data acquisition network, where they are processed, trended, and alarmed in coordination with the plant’s broader control infrastructure.

Product Specification Table

System Compatibility Notes

The 200157-06-CN does not operate in isolation. Its value is fully realized when considered within the context of the complete Trendmaster Pro system architecture and the broader plant automation hierarchy. At the field instrumentation layer, proximity probes such as the Bently Nevada 330180-91-00 (8mm proximity transducer) or the 330130-080-01-00 (standard proximity probe) provide raw displacement signals that the 200157-06-CN conditions and digitizes for system-level processing. These probes are typically mounted on bearing housings, shaft journals, or thrust collars of rotating machinery.

At the I/O and signal processing layer, the 200157-06-CN works in concert with other Trendmaster Pro I/O modules, including temperature monitoring modules and process variable input cards, all of which share the same distributed network architecture. The Trendmaster Pro Smart I/O Module (SIM) serves as the backbone of this distributed I/O layer, aggregating signals from multiple monitoring modules — including the 200157-06-CN — and transmitting processed data upstream to the system controller.

At the network and communication layer, the Trendmaster Pro system interfaces with plant-level DCS platforms — such as those running on GE Mark VI turbine control systems or Emerson DeltaV distributed control platforms — via the System 1 Evolution condition monitoring software. This software layer provides real-time trending, alarm management, and historical data archiving, enabling engineers to correlate vibration data from the 200157-06-CN with process variables such as speed, load, temperature, and flow.

At the power supply layer, the Trendmaster Pro system relies on dedicated 24 VDC power supplies — such as the Bently Nevada 3500/15 Power Supply Module (used in adjacent 3500 Series rack systems) — to ensure stable, noise-free power delivery to all monitoring modules. Proper power architecture is critical in vibration monitoring applications, where signal integrity directly impacts alarm accuracy and machinery protection reliability.

For redundancy-critical applications — such as main steam turbines in power plants or large centrifugal compressors in gas processing facilities — the Trendmaster Pro architecture supports redundant communication paths and dual-channel monitoring configurations. In these designs, the 200157-06-CN may be paired with a redundant monitoring channel, ensuring that no single module failure results in a loss of machinery protection coverage. This redundancy architecture aligns with IEC 61511 functional safety requirements for Safety Instrumented Systems (SIS) in process industries.

At the human-machine interface (HMI) layer, operators interact with vibration data collected by the 200157-06-CN through System 1 Evolution workstations or integrated DCS operator consoles. Alarm setpoints, trend displays, and historical waveform data are all accessible through this interface layer, enabling both real-time machinery protection and long-term predictive maintenance decision-making. Integration with OSIsoft PI historian systems is also common in large-scale installations, providing enterprise-wide access to machinery health data.

Industrial Application Notes

Power Generation: In combined-cycle power plants and steam turbine facilities, the 200157-06-CN monitors shaft vibration on high-speed turbine rotors, providing early warning of imbalance, misalignment, or bearing degradation. Its integration with the plant DCS allows automatic load reduction or trip initiation when vibration levels exceed protective thresholds, preventing catastrophic machinery failures and unplanned outages.

Petrochemical & Refining: In ethylene crackers, crude distillation units, and gas compression trains, continuous vibration monitoring of centrifugal compressors and pumps is mandatory under API 670 machinery protection standards. The 200157-06-CN provides the signal conditioning and monitoring capability required to meet these standards, integrating seamlessly with the plant’s safety instrumented system (SIS) and basic process control system (BPCS).

Mining & Metallurgy: In ore processing facilities and smelting operations, large grinding mills, conveyor drives, and fan systems are subject to severe mechanical stress. The 200157-06-CN enables continuous condition monitoring of these assets, reducing unplanned downtime and extending equipment service life through data-driven maintenance scheduling.

Water & Wastewater Treatment: Municipal water treatment plants rely on large pump stations and blower systems for continuous operation. The 200157-06-CN provides vibration monitoring for these critical assets, integrating with SCADA systems to provide operators with real-time machinery health data and automated alarm notifications.

Packaging & Process Manufacturing: In high-speed packaging lines and continuous process manufacturing facilities, the 200157-06-CN supports predictive maintenance programs by monitoring the vibration signatures of motors, gearboxes, and conveyor drives — enabling maintenance teams to schedule interventions during planned downtime windows rather than responding to unexpected failures.

Product Compatibility FAQ

Q1: Is the Bently Nevada 200157-06-CN compatible with existing Trendmaster Pro installations, and can it be added to an operational system without disrupting production?
A: Yes. The 200157-06-CN is designed for hot-swap compatibility within the Trendmaster Pro distributed architecture, allowing module replacement or addition without requiring a full system shutdown in most configurations. Its plug-and-play integration with the Trendmaster Pro Smart I/O network means that the system automatically recognizes the new module and begins data acquisition with minimal configuration effort. Engineers should verify firmware compatibility with the existing System 1 Evolution software version prior to installation to ensure full feature support.

Q2: How does the 200157-06-CN support long-term maintenance efficiency in a multi-asset monitoring architecture?
A: The module’s integration with System 1 Evolution software enables centralized trend monitoring, alarm management, and historical data analysis across all connected assets. This centralized architecture significantly reduces the time required for routine maintenance inspections, as engineers can review machinery health data remotely rather than conducting manual field checks. The standardized Trendmaster Pro module form factor also simplifies spare parts management — a single spare 200157-06-CN can serve as a replacement for any compatible monitoring point in the system, reducing inventory complexity and ensuring rapid response to module failures.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support post-purchase technical integration?
A: ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions for the Bently Nevada 200157-06-CN. All units are tested prior to shipment to verify signal conditioning performance and communication integrity within the Trendmaster Pro architecture. Post-purchase, ZYPLC’s technical team provides application support for system integration questions, including compatibility verification with existing Trendmaster Pro configurations, System 1 Evolution software setup guidance, and advice on probe selection and installation for specific machinery types. Contact our team at plc.sales@zyplc.com or +86 19859288691 for pre-sales architecture consultation and post-sales technical support.
