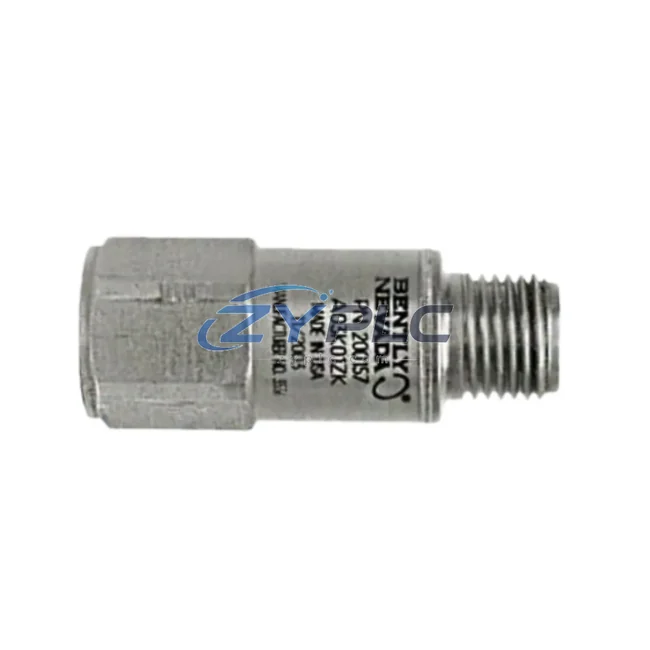

Bently Nevada 200157-08-CN Vibration Accelerometer for Trendmaster Pro Systems

Bently Nevada 200157-08-CN: Industrial Data Link for Trendmaster Pro Systems

The Bently Nevada 200157-08-CN is a high-precision vibration accelerometer engineered for continuous condition monitoring in smart factory environments. Designed as a core sensing node within the Trendmaster Pro platform, this accelerometer delivers real-time vibration data across the full industrial data chain — from field-level signal acquisition through protocol conversion, network transmission, SCADA integration, and remote diagnostics. Whether deployed on rotating machinery, compressors, turbines, or critical drive systems, the 200157-08-CN ensures that every vibration event is captured, timestamped, and transmitted with the fidelity required for predictive maintenance and plant-wide transparency.

In modern industrial sites, the journey of a vibration signal begins at the sensor and must travel reliably through multiple network layers before reaching the control room or cloud analytics platform. The 200157-08-CN initiates this chain by converting mechanical vibration into a calibrated electrical signal compatible with the Trendmaster Pro I/O modules, such as the Bently Nevada 3500/42M velocity and acceleration input module, which conditions and digitizes the signal for upstream transmission. From there, the data passes through the Bently Nevada 3500 Rack backplane communication bus, enabling seamless handoff to plant DCS or SCADA systems via standard industrial protocols including Modbus RTU, Modbus TCP/IP, and OPC-UA — ensuring zero data isolation between the vibration monitoring layer and the supervisory control layer.

Compatibility & Integration Notes

Connected Automation Data Flow

The 200157-08-CN sits at the origin of a sophisticated industrial data flow architecture. Once installed on a rotating asset, its output feeds directly into the Bently Nevada Trendmaster Pro Smart I/O Module, which handles signal conditioning and analog-to-digital conversion. The digitized vibration data is then routed through the Bently Nevada 3500 Rack to the plant’s distributed control system — typically a GE Vernova Mark VIe or Emerson DeltaV DCS — where it is processed alongside temperature, pressure, and flow signals from other field instruments.

For sites running OSIsoft PI (AVEVA PI System) as their operational historian, the 200157-08-CN data stream integrates natively via OPC-DA or OPC-UA connectors, enabling long-term trend analysis and alarm correlation across thousands of tags. In parallel, the vibration data can be surfaced on GE iFIX or Wonderware InTouch HMI panels on the plant floor, giving operators immediate visual feedback on machine health without leaving the production area.

Where remote I/O extension is required — for example, in geographically distributed compressor stations — the 200157-08-CN signal chain can be extended through Moxa NPort Serial Device Servers or Advantech ADAM-6000 series Ethernet I/O modules, converting the local vibration data into TCP/IP packets for transmission over the plant’s industrial Ethernet backbone. Edge computing nodes such as the Siemens SIMATIC IPC427E can then perform local FFT analysis and anomaly detection before forwarding summarized health indices to the central SCADA server — reducing bandwidth consumption while maintaining real-time responsiveness.

For drive-intensive applications where variable frequency drives (VFDs) such as the ABB ACS880 or Danfoss FC302 are in use, the 200157-08-CN provides the vibration baseline data necessary to correlate drive output frequency with mechanical resonance events, enabling engineers to tune drive parameters and avoid destructive vibration harmonics. This closed-loop integration between the accelerometer, the drive controller, and the SCADA alarm management system is a hallmark of mature smart factory deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of condition monitoring data from the broader plant information network. Legacy vibration monitoring systems often operate as standalone islands — collecting data locally but failing to share it with the PLC layer, the DCS historian, or the enterprise asset management (EAM) system. The Bently Nevada 200157-08-CN, deployed within the Trendmaster Pro architecture, directly addresses this problem.

By leveraging the Trendmaster Pro platform’s native support for open industrial protocols, the 200157-08-CN enables vibration data to flow freely into SAP PM (Plant Maintenance) or IBM Maximo asset management systems via OPC-UA or REST API bridges — transforming raw sensor readings into actionable work orders and maintenance schedules. This eliminates the manual data transcription that has historically created latency between a detected fault and a maintenance response.

For production line transparency, the 200157-08-CN data can be aggregated alongside energy consumption data from smart meters and quality data from vision inspection systems into a unified MES (Manufacturing Execution System) dashboard, giving plant managers a real-time, holistic view of production health. Remote monitoring capabilities allow off-site engineers to access live vibration spectra and alarm histories through secure VPN connections to the SCADA server, enabling remote diagnostics without the cost and delay of on-site visits.

System scalability is another key advantage. The Trendmaster Pro architecture supports incremental expansion — additional 200157-08-CN accelerometers can be added to the monitoring network without disrupting existing measurement points, and the network can grow from a single machine to a plant-wide condition monitoring system covering hundreds of assets. All units ship with full factory calibration certificates, and each 200157-08-CN is covered by a warranty terms confirmed during quotation with pre-shipment functional testing to ensure out-of-box reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 200157-08-CN support for SCADA integration?
The 200157-08-CN outputs an analog signal that is processed by the Trendmaster Pro I/O module and 3500 Rack, which support Modbus RTU, Modbus TCP/IP, and OPC-UA for upstream SCADA and DCS integration. This ensures compatibility with major platforms including Emerson DeltaV, Honeywell Experion, and Siemens PCS 7.

Q2: How does the 200157-08-CN perform in high-vibration or electrically noisy industrial environments?
The 200157-08-CN is engineered to Bently Nevada’s industrial-grade specifications, with shielded cabling recommendations and signal conditioning built into the Trendmaster Pro I/O module to reject common-mode electrical noise. This ensures stable, low-drift vibration readings even in environments with heavy VFD switching noise or high electromagnetic interference.

Q3: Can the Trendmaster Pro system with the 200157-08-CN be expanded to monitor additional machines without network reconfiguration?
Yes. The Trendmaster Pro architecture is designed for modular expansion. Additional accelerometers and I/O modules can be added to the existing network infrastructure without requiring changes to the SCADA communication configuration, making it straightforward to scale from a pilot installation to a plant-wide monitoring network.

Q4: What pre-shipment testing and warranty coverage is provided with the 200157-08-CN?
Every 200157-08-CN unit undergoes functional verification and calibration testing prior to shipment. A factory calibration certificate is included. The unit is covered by a warranty terms confirmed during quotation against manufacturing defects, with global logistics support via DHL and FedEx for rapid delivery to industrial sites worldwide.
