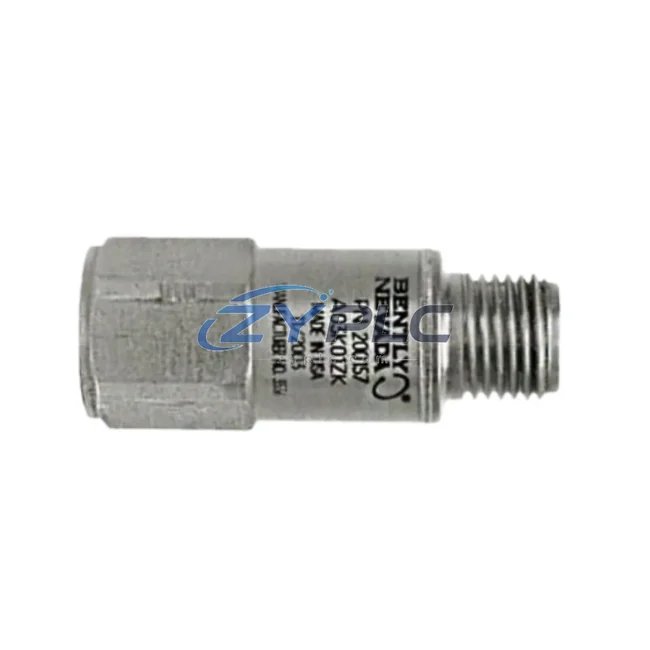

Bently Nevada 200157-14-05 Enveloping Accelerometer for Trendmaster Pro

Bently Nevada 200157-14-05 Enveloping Accelerometer for Trendmaster Pro

The Bently Nevada 200157-14-05 Enveloping Accelerometer is a precision vibration sensing component engineered for seamless integration within the Trendmaster Pro continuous monitoring architecture. Designed to detect high-frequency bearing defect signals through enveloping signal processing, this accelerometer occupies a critical position in the I/O and sensing layer of a layered industrial automation system. Its role extends beyond simple vibration measurement — it serves as the primary data acquisition node that feeds real-time mechanical health data into the broader condition monitoring and predictive maintenance framework.

In modern industrial control architectures, the reliability of rotating machinery monitoring depends on the coherent interaction between sensing elements, signal conditioning modules, data acquisition hardware, communication gateways, and supervisory control platforms. The 200157-14-05 is purpose-built to fulfill the sensing layer role within this hierarchy, delivering enveloped acceleration signals that are pre-processed for bearing fault frequency analysis before transmission to the Trendmaster Pro system processor. This system integration capability ensures that the accelerometer does not function as an isolated instrument but as a fully coordinated component within a unified condition monitoring architecture.

Within a complete Trendmaster Pro deployment, the 200157-14-05 operates alongside the Trendmaster Pro Smart I/O Module for signal acquisition, the 3500/42M Proximitor/Seismic Monitor for complementary vibration channel coverage, and the 3500/22M Transient Data Interface for transient event capture. The system architecture typically incorporates the Trendmaster Pro System Manager as the central data aggregation and communication hub, interfacing with plant-level DCS or SCADA platforms via Modbus TCP or OPC-DA/UA protocols. Power distribution to field-mounted sensors is managed through the Trendmaster Pro Power Supply Module, ensuring stable excitation voltage across all connected accelerometers and proximity probes. For installations requiring redundant monitoring coverage on critical rotating assets, the 200157-14-05 is frequently paired with a 330500 Proximity Transducer System to provide simultaneous radial vibration and high-frequency bearing defect monitoring on the same machine train.

The enveloping technique employed by the 200157-14-05 is particularly effective in detecting early-stage bearing defects, gear mesh anomalies, and lubrication degradation in high-speed rotating equipment. By filtering and demodulating the raw acceleration signal within a defined frequency band, the module isolates fault-related impulse energy that would otherwise be masked by broadband vibration noise. This processed signal is then transmitted to the Trendmaster Pro acquisition hardware, where it is trended, alarmed, and archived in accordance with the plant’s predictive maintenance strategy. Integration with the System 1 Condition Monitoring Software enables long-term trend analysis, alarm management, and maintenance workflow generation based on the accelerometer’s output data.

From a system architecture perspective, the 200157-14-05 supports the expansion scalability of the Trendmaster Pro platform. As plant monitoring requirements grow — adding new machine trains, extending monitoring to auxiliary equipment, or incorporating additional measurement parameters — the accelerometer’s standardized signal output and connector interface allow straightforward addition to existing I/O channel assignments without requiring architectural redesign. This modularity reduces engineering time during system expansion and minimizes the risk of signal incompatibility between new and existing monitoring channels.

Installation and commissioning of the 200157-14-05 follows Bently Nevada’s standard field wiring practices, with the accelerometer mounted directly on the machine bearing housing using a threaded stud or adhesive pad, depending on the application. Cable routing to the nearest Trendmaster Pro junction box or Smart I/O Module should follow shielded cable practices to minimize electromagnetic interference in electrically noisy industrial environments such as motor control centers, variable frequency drive panels, and high-voltage switchgear rooms. Proper grounding of the cable shield at a single point — typically at the monitoring system end — is essential to prevent ground loop interference that could corrupt the enveloped signal baseline.

Long-term maintenance of the 200157-14-05 within a Trendmaster Pro architecture is supported by the system’s built-in channel health diagnostics, which continuously verify sensor connectivity, signal level, and bias voltage within acceptable operating ranges. Out-of-range diagnostic readings trigger system-level alerts that allow maintenance teams to identify and replace faulty accelerometers before they result in monitoring gaps on critical assets. Maintaining a spare inventory of 200157-14-05 units at site level is recommended for facilities operating continuous process equipment where unplanned monitoring downtime is not acceptable.

All 200157-14-05 units supplied by ZYPLC are covered by a Warranty and support terms confirmed before quote, ensuring that each unit meets Bently Nevada’s original performance specifications for sensitivity, frequency response, and environmental sealing. Our global sourcing network and logistics network supports export shipping options after RFQ confirmation to industrial sites worldwide, minimizing procurement lead times for both planned maintenance replacements and emergency spare requirements.

Product Specification Table

System Compatibility Notes

The 200157-14-05 achieves its full monitoring potential when deployed as part of a coordinated Trendmaster Pro system architecture. A typical multi-machine monitoring installation integrates the following components across the control and sensing hierarchy:

At the sensing layer, the 200157-14-05 Enveloping Accelerometer works in parallel with 330730 Velomitor Piezo-Velocity Sensors for broadband vibration coverage and 330500 Proximity Transducer Systems for shaft displacement monitoring. These sensors collectively provide a complete vibration signature of the machine train across multiple measurement axes and frequency ranges. Signal conditioning and acquisition are handled by the Trendmaster Pro Smart I/O Module, which digitizes and pre-processes the enveloped acceleration signal before forwarding it to the system processor. The Trendmaster Pro Power Supply Module provides regulated excitation to all field-mounted sensors, maintaining stable operating conditions even under fluctuating plant power quality.

At the communication and supervisory layer, the Trendmaster Pro System Manager aggregates data from all connected I/O modules and transmits condition monitoring data to the plant DCS or SCADA system via Modbus TCP or OPC-DA/UA. Integration with System 1 Condition Monitoring Software enables advanced analytics, alarm rationalization, and maintenance workflow management. For installations requiring protection-grade monitoring in addition to condition monitoring, the 3500/42M Proximitor/Seismic Monitor and 3500/22M Transient Data Interface provide complementary protection and transient capture capabilities on the same machine train, operating within the 3500 Series rack-based protection architecture alongside the Trendmaster Pro continuous monitoring system.

Industrial Application Notes

The Bently Nevada 200157-14-05 is deployed across a wide range of heavy industrial applications where early bearing defect detection is critical to process continuity and asset reliability. In power generation facilities — including gas turbines, steam turbines, and large synchronous generators — the accelerometer provides continuous high-frequency monitoring of main and auxiliary bearings, enabling maintenance teams to detect and trend bearing defects months before they develop into functional failures. In petrochemical and refinery environments, the 200157-14-05 is applied to centrifugal compressors, pumps, and agitators operating in hazardous area classifications, where its robust environmental sealing and compatibility with Trendmaster Pro’s intrinsically safe I/O options support safe and reliable operation.

In mining and mineral processing plants, the accelerometer monitors crusher bearings, conveyor drive motors, and mill pinion bearings — assets subject to extreme shock loading and contamination that accelerate bearing wear. The enveloping technique’s ability to detect fault frequencies in the presence of high background vibration makes the 200157-14-05 particularly effective in these high-noise environments. In water and wastewater treatment facilities, the module supports predictive maintenance programs on pumping stations and blower trains, reducing downtime in critical infrastructure applications. Across pulp and paper, steel, and packaging production lines, the 200157-14-05 contributes to overall equipment effectiveness (OEE) improvement by enabling condition-based maintenance strategies that replace time-based overhaul schedules with data-driven intervention planning.

Product Compatibility FAQ

Q1: Is the 200157-14-05 compatible with existing Trendmaster Pro installations using older Smart I/O Module revisions?
A: The 200157-14-05 is designed for use within the Trendmaster Pro monitoring architecture and is compatible with the standard Smart I/O Module channel assignments used across Trendmaster Pro system generations. For installations with older hardware revisions, it is recommended to verify the I/O module firmware version and channel configuration against Bently Nevada’s compatibility documentation. ZYPLC’s technical team can assist with compatibility verification prior to procurement to ensure seamless integration with your existing system architecture.

Q2: Can the 200157-14-05 be used in a redundant monitoring architecture alongside protection-grade instruments?
A: Yes. The 200157-14-05 is frequently deployed in architectures where Trendmaster Pro continuous monitoring operates in parallel with 3500 Series protection monitors on the same machine train. In this configuration, the Trendmaster Pro system provides continuous trend data and early warning, while the 3500 Series provides API 670-compliant protection shutdown capability. The two systems operate independently, ensuring that a fault in the condition monitoring layer does not affect the protection layer’s availability. This dual-layer architecture is standard practice for critical rotating machinery in power generation and petrochemical applications.

Q3: What does the Warranty and support terms confirmed before quote cover, and what is the process for warranty claims?
A: All 200157-14-05 units supplied by ZYPLC are Warranty terms are confirmed during quotation. Warranty claims are processed through ZYPLC’s after-sales support team. Customers are required to provide the unit’s serial number, purchase documentation, and a description of the observed fault. ZYPLC will arrange replacement or repair at no additional cost for valid warranty claims. For urgent operational requirements, advance replacement units can be dispatched to minimize site downtime during the warranty resolution process.
