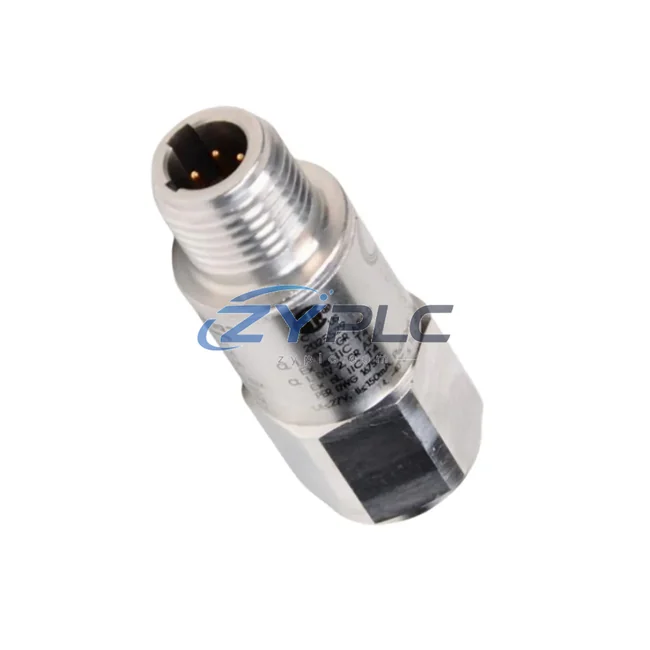

Bently Nevada 200157-16-05 Vibration Monitor for TrendMaster Pro

Bently Nevada 200157-16-05 Vibration Monitor for TrendMaster Pro Control System

The Bently Nevada 200157-16-05 is a precision vibration monitoring module engineered for seamless integration within the TrendMaster Pro distributed condition monitoring architecture. Rather than functioning as a standalone instrument, this module is designed to operate as a critical node within a layered industrial control system — interfacing with signal conditioning layers, data acquisition backplanes, communication gateways, and plant-level SCADA or DCS platforms. Its role within the control hierarchy is to deliver continuous, high-fidelity vibration data that feeds into predictive maintenance workflows, machinery protection logic, and process optimization strategies across rotating equipment-intensive industries.

In modern industrial facilities — whether in power generation, petrochemical processing, mining, or heavy manufacturing — machinery health monitoring is no longer a peripheral function. It is deeply embedded within the control architecture. The 200157-16-05 module supports this integration philosophy by providing standardized signal outputs compatible with the TrendMaster Pro system’s data concentrator units, enabling real-time vibration trend analysis without disrupting the primary control loop. Engineers deploying this module benefit from reduced wiring complexity, consistent signal integrity across long cable runs, and compatibility with the broader Bently Nevada ecosystem of transducers, proximitors, and monitoring racks.

System architects specifying the 200157-16-05 should consider its position within the full signal chain: from the proximity probe or accelerometer at the machine surface, through the signal conditioning stage handled by companion modules such as the Bently Nevada 3500/42M or 3500/45 position monitor, into the TrendMaster Pro data concentrator, and ultimately to the plant historian or DCS via Modbus, OPC, or proprietary Bently Nevada communication protocols. This end-to-end signal flow ensures that vibration anomalies are captured, timestamped, and transmitted to the control room with minimal latency — a critical requirement in machinery protection applications where milliseconds matter.

Product Specification Table

System Compatibility Notes

The 200157-16-05 achieves its full operational value when deployed within a coordinated system architecture. In a typical TrendMaster Pro installation, this module works in concert with the Bently Nevada 3500 Rack System, which serves as the primary machinery protection platform. The 3500 rack accepts I/O modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/45 Position Monitor, which handle raw transducer signal conditioning before data is passed upstream to the TrendMaster Pro concentrator layer where the 200157-16-05 operates.

At the network communication layer, the Bently Nevada 3500/92 Communication Gateway bridges the monitoring system to plant-level DCS or SCADA platforms, enabling the vibration data collected by the 200157-16-05 to be consumed by Honeywell Experion, Emerson DeltaV, or Siemens PCS 7 control systems. This integration ensures that machinery health data is not siloed within the condition monitoring subsystem but is instead available as a live process variable within the broader automation hierarchy.

Power integrity for the monitoring rack is maintained by the Bently Nevada 3500/15 Power Supply Module, which provides regulated DC power to all rack-mounted I/O modules including the 200157-16-05. In redundant architectures, dual power supply configurations are recommended to eliminate single points of failure in critical machinery protection applications. The Bently Nevada 3500/20 Rack Interface Module manages internal rack communication and provides the backplane connectivity that allows all modules within the 3500 chassis to share configuration and status data.

For human-machine interface requirements, the TrendMaster Pro system integrates with System 1 Evolution Software — Bently Nevada’s plant asset management and condition monitoring platform — which provides trend visualization, alarm management, and predictive analytics dashboards. Operators monitoring rotating equipment such as compressors, turbines, pumps, and fans can view real-time vibration spectra, overall vibration levels, and historical trend data from a centralized HMI workstation, with alarm thresholds configured to trigger protective shutdown logic through the 3500 rack’s relay output modules such as the 3500/32 4-Channel Relay Module.

Terminal block assemblies and field wiring accessories, including Bently Nevada I/O terminal modules and shielded instrumentation cables, complete the physical installation layer, ensuring signal integrity from the machine-mounted transducer through to the monitoring module. Proper grounding and shielding practices, as specified in Bently Nevada installation guidelines, are essential to maintaining measurement accuracy in electrically noisy industrial environments.

Industrial Application Notes

The 200157-16-05 finds application across a wide range of process industries where rotating machinery reliability is critical to operational continuity. In power generation facilities — including gas turbine plants, steam turbine stations, and hydroelectric installations — this module monitors shaft vibration, bearing condition, and rotor dynamics in real time, providing early warning of imbalance, misalignment, or bearing degradation before catastrophic failure occurs. The integration of vibration data into the plant DCS allows operators to correlate machinery health with process variables such as load, temperature, and flow rate, enabling condition-based maintenance scheduling that reduces unplanned downtime.

In petrochemical and refinery applications, the 200157-16-05 is deployed on critical rotating assets including centrifugal compressors, boiler feed pumps, and cooling tower fans. These assets operate continuously under demanding process conditions, and any unplanned outage can result in significant production losses and safety risks. The TrendMaster Pro architecture, anchored by modules like the 200157-16-05, provides the continuous monitoring infrastructure required to meet API 670 machinery protection standards, which mandate online vibration monitoring for critical rotating equipment in hydrocarbon processing facilities.

In mining and mineral processing operations, where equipment operates in harsh environments with high dust, vibration, and temperature extremes, the robustness of the TrendMaster Pro system and the 200157-16-05 module ensures reliable data acquisition even under challenging conditions. Conveyor drives, ball mills, crushers, and slurry pumps all benefit from integrated vibration monitoring, with alarm and trip setpoints configured to protect high-value assets and prevent cascading failures in continuous process lines.

Water and wastewater treatment facilities utilize the 200157-16-05 within pump station monitoring architectures, where the early detection of bearing wear or cavitation-induced vibration can prevent pump failures that would disrupt water supply or treatment capacity. The module’s compatibility with standard industrial communication protocols ensures seamless integration with SCADA systems managing distributed pump stations across large geographic areas.

In packaging and discrete manufacturing environments, the 200157-16-05 supports predictive maintenance programs on high-speed production machinery, where vibration-induced quality defects and unplanned stoppages directly impact throughput and product quality metrics. Integration with MES and ERP systems via the TrendMaster Pro communication layer enables maintenance work orders to be automatically generated when vibration thresholds are exceeded, closing the loop between condition monitoring data and maintenance execution workflows.

Product Compatibility FAQ

Q1: Is the Bently Nevada 200157-16-05 compatible with existing 3500 Series rack installations, and can it be added to an operational system without shutdown?

The 200157-16-05 is designed for integration within the TrendMaster Pro architecture, which operates alongside and communicates with the Bently Nevada 3500 Series rack system. Compatibility with specific 3500 rack configurations depends on the firmware version of the Rack Interface Module (3500/20) and the communication gateway in use. In most cases, adding a TrendMaster Pro monitoring node to an existing installation can be performed during a scheduled maintenance window with minimal disruption to the primary protection system. Our technical team can assist with compatibility verification prior to shipment. All units supplied carry a Warranty and support terms confirmed before quote covering functional performance and manufacturing defects.

Q2: What communication protocols does the 200157-16-05 support, and how does it integrate with third-party DCS or SCADA platforms?

The TrendMaster Pro system, including the 200157-16-05 monitoring module, supports Modbus RTU and Modbus TCP/IP as standard communication interfaces, enabling integration with virtually all major DCS and SCADA platforms including Honeywell Experion, Emerson DeltaV, ABB 800xA, Siemens PCS 7, and Yokogawa CENTUM VP. OPC DA/UA connectivity is available through the System 1 Evolution software layer, providing standardized data exchange with plant historians such as OSIsoft PI. For installations requiring Profibus or FOUNDATION Fieldbus connectivity, protocol conversion gateways can be specified as part of the system architecture. system integration with existing control infrastructure is a core design principle of the TrendMaster Pro platform.

Q3: What long-term maintenance and spare parts support is available for the 200157-16-05, and how does the Warranty and support terms confirmed before quote apply to refurbished units?

ZYPLC supports RFQ-based sourcing of the Bently Nevada 200157-16-05 and associated TrendMaster Pro system components to support long-term maintenance and emergency replacement requirements. All units — whether new or professionally refurbished — are supplied with a Warranty and support terms confirmed before quote that covers manufacturing defects, functional failure under normal operating conditions, and DOA (dead on arrival) scenarios. Refurbished units undergo full functional testing against OEM specifications prior to shipment, including signal output verification, communication interface testing, and environmental stress screening. For critical applications requiring extended warranty coverage or on-site spare parts programs, please contact our technical sales team to discuss customized support agreements.
