Bently Nevada 200157-22-CN Vibration Monitoring Module for Trendmaster Pro Systems

Bently Nevada 200157-22-CN: Industrial Data Link for Trendmaster Pro Systems

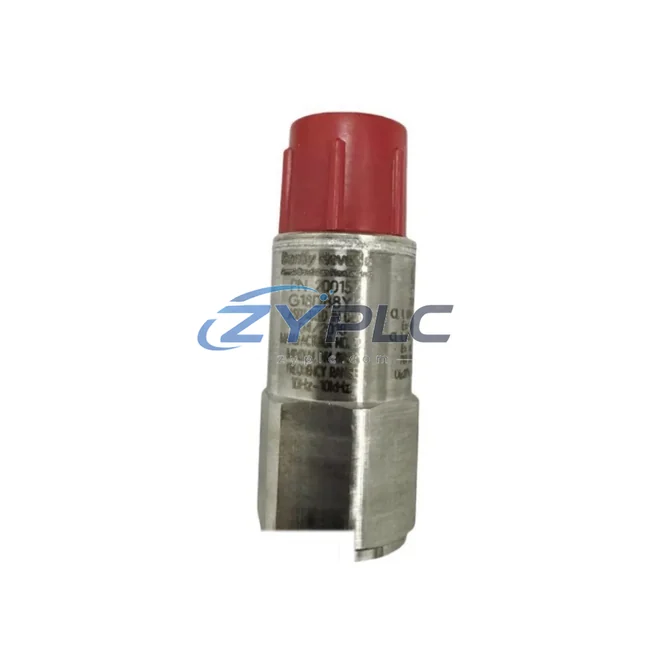

The Bently Nevada 200157-22-CN Enveloping Accelerometer is a precision vibration monitoring sensor engineered for seamless integration within the Trendmaster Pro condition monitoring platform. Designed for deployment in smart factory environments, this module serves as a critical node in the industrial data chain — capturing high-frequency vibration signals from rotating machinery and transmitting structured diagnostic data upstream to DCS, SCADA, and HMI systems. Whether installed on compressors, turbines, pumps, or gearboxes, the 200157-22-CN delivers real-time envelope detection that enables predictive maintenance, reduces unplanned downtime, and supports full plant transparency.

In modern industrial networks, the path from field sensor to control room is defined by protocol compatibility, signal integrity, and communication latency. The 200157-22-CN is factory-calibrated to interface directly with the Bently Nevada 3500 Series rack-based monitoring system, where it feeds enveloped acceleration data through dedicated I/O modules into the plant’s condition monitoring backbone. This data is then routed via Modbus TCP or OPC-UA gateways to SCADA platforms such as GE iFIX, Wonderware, or Ignition, enabling operators to visualize bearing health trends, set alarm thresholds, and trigger automated shutdown sequences without manual intervention.

Compatibility & Integration Notes

Connected Automation Data Flow

The 200157-22-CN sits at the origin of a multi-layer industrial data flow. At the field level, it captures enveloped acceleration signals from rotating assets and feeds them into the Bently Nevada 3500/42M Proximitor I/O module, which conditions and digitizes the raw signal. From there, the 3500 Rack Communication Gateway aggregates data from multiple channels — including inputs from Bently Nevada 330180 proximity probes and 330130 velocity transducers — and transmits structured packets over Modbus TCP to the plant’s control network.

At the control layer, a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller receives the vibration data alongside process variables from Profibus DP-connected remote I/O modules. The PLC executes alarm logic and forwards normalized data to the SCADA server via OPC-UA, where operators monitor real-time trends on Siemens WinCC or Rockwell FactoryTalk View HMI panels. For edge analytics, an industrial edge gateway — such as the Moxa UC-8112 or Advantech WISE-5000 — can subscribe to the OPC-UA data stream and run local anomaly detection models, reducing cloud dependency and communication latency to under 10 ms.

In distributed plant architectures, the 200157-22-CN data stream integrates with Emerson AMS Device Manager or GE System 1 condition monitoring software, enabling fleet-wide bearing health dashboards, automated work order generation, and ISO 10816 compliance reporting — all without additional field wiring or protocol converters.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is data isolation — where vibration sensors, PLCs, drives, and SCADA systems operate in separate protocol silos, preventing unified visibility across the production floor. The Bently Nevada 200157-22-CN addresses this directly by providing a standardized analog output that is compatible with virtually all major industrial I/O platforms, eliminating the need for proprietary signal conditioning hardware.

When integrated with a Modbus-to-OPC-UA protocol gateway, the 200157-22-CN enables legacy Trendmaster Pro installations to connect to modern IIoT platforms without replacing existing infrastructure. This is particularly valuable in brownfield projects where capital expenditure must be minimized. Operators gain remote diagnostic access to bearing condition data through standard web-based SCADA dashboards, enabling condition-based maintenance scheduling from any location on the plant network.

For production line transparency, the 200157-22-CN supports integration with MES (Manufacturing Execution Systems) via OPC-UA, allowing maintenance events triggered by vibration anomalies to be automatically logged against production orders. This closes the loop between equipment health and production KPIs, supporting ISO 55000 asset management frameworks and Industry 4.0 digital twin initiatives. All units are tested prior to shipment, supplied with a warranty terms confirmed during quotation, and available from RFQ-confirmed sourcing for rapid global deployment via DHL or FedEx Express.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 200157-22-CN support for SCADA integration?
The 200157-22-CN outputs a standard analog signal (4–20 mA or voltage) that interfaces with Bently Nevada 3500 Series I/O modules. These modules support Modbus RTU/TCP and OPC-UA communication via the 3500 rack gateway, enabling direct integration with SCADA platforms including Wonderware, Ignition, GE iFIX, and Siemens WinCC without additional protocol converters.

Q2: What is the typical communication latency for real-time vibration monitoring?
When connected through the Trendmaster Pro or 3500 rack system over a dedicated Ethernet/IP or Modbus TCP network, end-to-end data latency from sensor to SCADA display is typically under 100 ms. For edge gateway deployments using OPC-UA subscriptions, latency can be reduced to under 10 ms for local alarm processing, ensuring rapid response to bearing fault conditions.

Q3: Can the 200157-22-CN be used in systems with mixed Profibus and Ethernet networks?
Yes. The analog output of the 200157-22-CN is protocol-agnostic at the sensor level. By connecting to a Bently Nevada 3500 I/O module with a Profibus DP or Ethernet/IP communication card, the enveloped acceleration data can be transmitted across both legacy Profibus networks and modern Ethernet-based architectures, supporting hybrid plant topologies without signal degradation.

Q4: What warranty and pre-shipment testing does the 200157-22-CN include?
Every Bently Nevada 200157-22-CN unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing prior to shipment. Availability is confirmed via RFQ for same-week dispatch via DHL or FedEx Express. For urgent requirements, RFQ responses are provided within 24 hours. Contact our team at plc.sales@zyplc.com or +86 19859288691 for availability confirmation.
