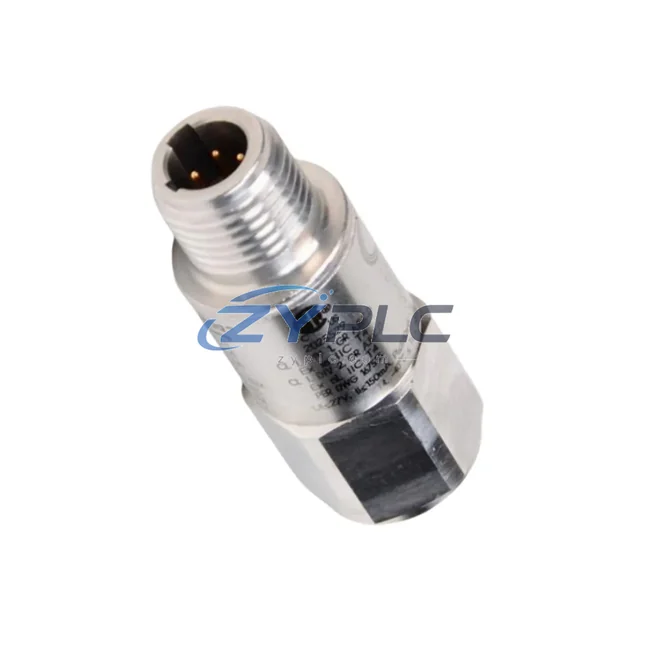

Bently Nevada 200157-23-CN Vibration Monitor for TrendMaster Pro

Bently Nevada 200157-23-CN Vibration Monitor for TrendMaster Pro

The Bently Nevada 200157-23-CN is a precision vibration monitoring module engineered for seamless integration within the TrendMaster Pro distributed condition monitoring architecture. Unlike standalone vibration sensors, this module is designed to function as a coordinated node within a multi-layer industrial control system, contributing to real-time machinery health data across the control layer, I/O layer, communication network, and human-machine interface. Its role extends beyond simple signal acquisition — it serves as a critical data source that feeds into the broader predictive maintenance and asset protection strategy of rotating machinery installations in power generation, petrochemical, mining, metallurgy, and heavy manufacturing environments.

In a complete TrendMaster Pro system architecture, the 200157-23-CN operates in conjunction with the TrendMaster Pro I/O Module Rack, which provides the physical backplane for housing multiple monitoring channels. The rack-based design allows engineers to scale the system by adding additional I/O modules — such as the 3500/42M Proximitor/Seismic Monitor or the 3500/45 Position Monitor — without disrupting existing signal chains. This modularity is essential for large installations where machinery trains include compressors, turbines, pumps, and gearboxes that each require dedicated vibration channels.

At the control layer, the 200157-23-CN interfaces with the TrendMaster Pro System Manager, which aggregates vibration data from all connected monitoring modules and applies configurable alarm thresholds, trend analysis, and alert escalation logic. The System Manager communicates upstream via Modbus TCP/IP or OPC DA/UA protocols, enabling integration with distributed control systems (DCS) such as the Emerson DeltaV or third-party SCADA platforms. This communication architecture ensures that vibration data is not siloed within the condition monitoring subsystem but is instead available to plant-wide control and historian platforms for cross-system correlation.

The I/O layer of the TrendMaster Pro architecture relies on the 200157-23-CN to deliver conditioned vibration signals from field-mounted accelerometers or proximity probes. The module supports both dynamic (AC) and static (DC) signal inputs, making it compatible with a wide range of transducer types including the Bently Nevada 330500 Proximity Transducer System and the 330100 Proximity Transducer. Signal conditioning within the module ensures that raw sensor outputs are filtered, amplified, and converted to engineering units before transmission to the system manager, reducing the processing burden on upstream controllers.

From a network layer perspective, the TrendMaster Pro architecture supports daisy-chain and star topology wiring configurations, allowing the 200157-23-CN to be deployed in geographically distributed machinery trains without requiring dedicated home-run cabling for each monitoring point. The system’s communication bus maintains data integrity even in electrically noisy industrial environments, which is critical in applications near variable frequency drives (VFDs), large motor starters, and high-voltage switchgear.

Power supply redundancy is a key consideration in any critical machinery protection system. The TrendMaster Pro architecture accommodates dual power supply modules, ensuring that a single power supply failure does not interrupt vibration monitoring continuity. The 200157-23-CN is designed to operate within the system’s specified power envelope, and its low power consumption profile supports high-density rack configurations without exceeding power budget constraints.

At the human-machine interface layer, vibration data collected by the 200157-23-CN is visualized through the System 1 Condition Monitoring Software, which provides trend plots, spectrum analysis, orbit displays, and alarm management dashboards. Maintenance engineers can configure alert and danger thresholds, review historical vibration trends, and generate compliance reports directly from the System 1 interface. This integration between the field monitoring module and the HMI layer is what transforms raw vibration data into actionable maintenance intelligence.

For long-term maintenance efficiency, the 200157-23-CN’s modular design allows hot-swap replacement without requiring system shutdown, minimizing production interruptions during corrective maintenance activities. Spare module inventory management is simplified by the module’s standardized form factor, which is compatible across multiple TrendMaster Pro rack generations. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional verification prior to shipment.

Product Specification Table

System Compatibility Notes

A complete TrendMaster Pro-based machinery protection system integrating the 200157-23-CN typically includes the following coordinated components: the TrendMaster Pro System Manager as the central data aggregation and alarm management controller; the TrendMaster Pro I/O Module Rack as the physical backplane hosting multiple monitoring channels; the Bently Nevada 330500 Proximity Transducer System for non-contact shaft vibration and position measurement; the Bently Nevada 330100 Proximity Transducer for radial and axial displacement monitoring; the 3500/42M Proximitor/Seismic Monitor for high-channel-density seismic and proximity monitoring in the 3500 Series rack; the 3500/45 Position Monitor for thrust position and differential expansion measurement; the System 1 Condition Monitoring Software as the HMI and analytics platform; a Dual Redundant Power Supply Module for continuous system availability; a Modbus TCP/IP Gateway for DCS and SCADA integration; and Bently Nevada Junction Boxes and Field Wiring Assemblies for organized transducer cable management in the field. Together, these components form a coherent, layered architecture that delivers machinery protection, condition monitoring, and predictive maintenance capability across the full asset lifecycle.

Industrial Application Notes

In power generation facilities, the 200157-23-CN is deployed on steam turbine-generator trains, gas turbines, and boiler feed pumps where continuous vibration monitoring is mandated by API 670 machinery protection standards. The module’s integration with the plant DCS allows turbine operators to correlate vibration trends with process variables such as load, steam flow, and bearing temperature, enabling condition-based maintenance scheduling that reduces unplanned outages.

In petrochemical and refinery applications, the module monitors critical rotating equipment including centrifugal compressors, reciprocating compressors, and process pumps. The TrendMaster Pro architecture’s ability to monitor multiple machinery trains from a centralized system manager reduces the number of dedicated monitoring panels required in the control room, simplifying operator workload and improving alarm management effectiveness.

In mining and mineral processing operations, the 200157-23-CN is applied to SAG mills, ball mills, conveyor drive systems, and slurry pumps. The harsh electrical environment of mining facilities — characterized by high-power motor drives and ground loops — demands the robust signal conditioning and noise rejection capabilities built into the TrendMaster Pro monitoring architecture.

In water and wastewater treatment plants, the module supports continuous monitoring of large vertical turbine pumps, centrifugal blowers, and dewatering equipment. The system’s low maintenance requirements and remote monitoring capability via OPC UA are particularly valuable in unmanned or remotely operated pump stations.

In packaging and discrete manufacturing lines, the TrendMaster Pro system with the 200157-23-CN provides early warning of bearing degradation and imbalance in high-speed production machinery, supporting lean maintenance strategies and reducing the frequency of unscheduled production stops.

Product Compatibility FAQ

Q1: Is the Bently Nevada 200157-23-CN compatible with existing 3500 Series rack infrastructure?
A: The 200157-23-CN is a TrendMaster Pro series module and is not directly interchangeable with 3500 Series rack modules, which use a different backplane and communication architecture. However, both systems can coexist within the same plant network when integrated through a common OPC DA/UA or Modbus TCP/IP communication layer connected to a shared DCS or SCADA platform. If your facility operates a mixed Bently Nevada architecture, ZYPLC can advise on system integration strategies to ensure data continuity across both monitoring platforms.

Q2: What are the installation and commissioning requirements for the 200157-23-CN in a new TrendMaster Pro system?
A: Installation requires mounting the module into a compatible TrendMaster Pro I/O Module Rack, connecting field transducer cables to the module’s input terminals, and configuring channel parameters (transducer type, measurement range, alarm thresholds) via the System Manager software interface. Commissioning involves verifying signal integrity from each connected transducer, confirming communication with the System Manager, and validating alarm setpoints against machinery baseline vibration data. ZYPLC recommends retaining the original Bently Nevada configuration documentation for reference during commissioning to ensure parameter settings align with the original system design intent.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
A: All Bently Nevada 200157-23-CN modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are initiated by contacting ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the observed fault. ZYPLC will arrange for module inspection, repair, or replacement as appropriate. The warranty does not cover damage resulting from incorrect installation, operation outside specified environmental limits, or unauthorized modification of the module.
