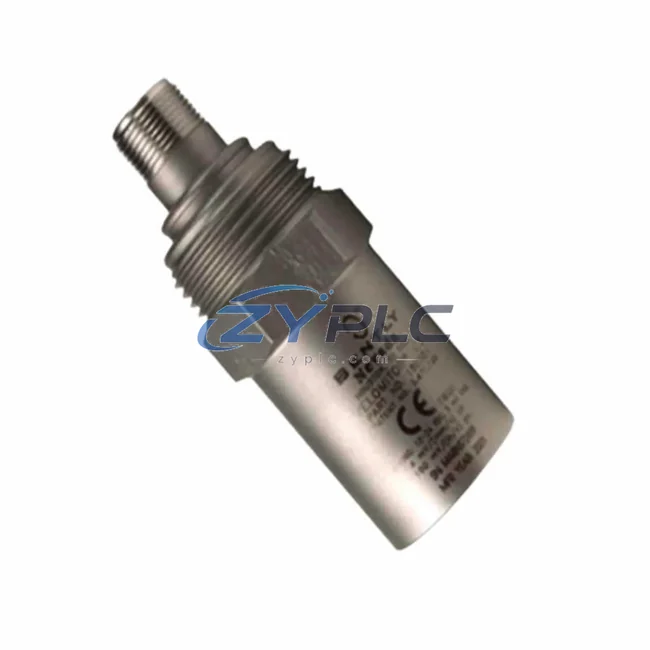

Bently Nevada 21000-16-10-15-102-03-02 Proximity Probe Housing Assembly for 21000 Series

Bently Nevada 21000-16-10-15-102-03-02: Industrial Data Link for 21000 Series Vibration Monitoring Systems

The Bently Nevada 21000-16-10-15-102-03-02 is a precision-engineered Proximity Probe Housing Assembly designed for the Bently Nevada 21000 Series vibration monitoring platform. In modern smart factory environments, reliable signal acquisition at the field device level is the foundation of every industrial data chain. This housing assembly ensures that eddy-current proximity probes maintain stable, interference-free positioning against rotating shafts, enabling continuous, high-fidelity vibration and displacement data to flow from the machine level upward through the entire automation network.

From the moment a rotating machine begins operation, the 21000-16-10-15-102-03-02 housing secures the probe tip at the precise gap distance required for accurate signal generation. That raw analog signal is then conditioned by a compatible Bently Nevada 3300 XL Proximitor Sensor, which converts the eddy-current response into a calibrated voltage output. This voltage is fed directly into a Bently Nevada 3500 Series Rack — the backbone of most plant-wide machinery protection systems — where it is digitized, processed against alarm setpoints, and made available for upstream communication.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding how the 21000-16-10-15-102-03-02 fits into a connected automation architecture reveals its true value in industrial network design. At the field level, the probe housing positions the sensing element against the shaft of a turbine, compressor, pump, or motor. The eddy-current signal generated is routed through a matched extension cable to a Bently Nevada 3300 XL 8mm Proximitor, which provides the signal conditioning and power supply needed for stable, long-distance transmission.

That conditioned signal enters the Bently Nevada 3500/40M Proximitor Monitor installed in the 3500 Series rack. Within the rack, the 3500/22M Communication Gateway acts as the critical protocol bridge — translating the proprietary Bently Nevada data format into Modbus RTU or Modbus TCP, making vibration amplitude, phase, and gap data readable by any standard Siemens S7-300 PLC or Allen-Bradley ControlLogix controller on the plant network. This is where the data transitions from a machine-level signal into a plant-wide network asset.

From the PLC layer, the vibration data is aggregated alongside process variables from Yokogawa CENTUM VP DCS or similar distributed control systems, then forwarded to a Kepware KEPServerEX OPC-UA Server. This OPC-UA layer provides the standardized, secure data highway that feeds both the plant SCADA system — such as Wonderware InTouch or Ignition by Inductive Automation — and the HMI panels on the machine skid. Operators can view real-time shaft vibration trends, gap voltages, and alarm states directly on the HMI without any manual data entry or polling delay.

For facilities implementing IIoT strategies, the OPC-UA data stream can be further routed through an industrial edge gateway — such as a Moxa UC-8112 or Advantech WISE-5000 — to cloud-based predictive maintenance platforms. This enables remote diagnostics, trend analysis, and early fault detection without requiring on-site personnel, dramatically reducing unplanned downtime on critical rotating assets.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data. Vibration sensors, temperature transmitters, flow meters, and pressure transducers each speak different protocols and connect to different systems, creating data silos that prevent a unified view of plant performance. The Bently Nevada 21000-16-10-15-102-03-02, as part of the 21000 Series ecosystem, directly addresses this problem by providing a mechanically stable, electrically reliable signal source that integrates cleanly with the 3500 Series communication infrastructure.

When the 3500/22M gateway bridges Bently Nevada data to Modbus TCP, it eliminates the need for custom protocol converters or proprietary middleware. Plant engineers can configure alarm thresholds, danger setpoints, and OK relay outputs directly within the 3500 rack, then expose those states to the SCADA system as standard digital or analog tags. This means a single operator workstation can display compressor shaft vibration, motor bearing temperature, and pump flow rate on the same screen — with consistent alarm management and audit trails.

For facilities expanding their monitoring scope, the 21000 Series housing assemblies are available in multiple probe lengths, cable configurations, and thread specifications, allowing the same communication architecture to scale across dozens of machine trains without redesigning the network. Remote diagnostics become straightforward: maintenance engineers can query gap voltage trends, check probe sensitivity, and verify OK status from the SCADA historian without entering the machine hall, improving both safety and efficiency.

Production line transparency is further enhanced when vibration data is correlated with process data in the DCS or MES layer. Abnormal vibration signatures can trigger automatic work orders in SAP PM or Maximo, closing the loop between condition monitoring and maintenance execution. This level of integration — from a precision probe housing at the field level to an enterprise maintenance system — represents the full value of a well-designed industrial connectivity architecture built around reliable components like the 21000-16-10-15-102-03-02.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 21000 Series support when integrated with a SCADA or DCS system?
The 21000 Series proximity probe system outputs an analog voltage signal that is processed by the Bently Nevada 3500 Series rack. The 3500/22M Communication Gateway supports Modbus RTU, Modbus TCP, and OPC-DA/OPC-UA interfaces, enabling direct integration with most SCADA platforms (Wonderware, Ignition, iFIX) and DCS systems (Yokogawa, Honeywell, Emerson) without additional protocol converters.

Q2: How is network stability and signal integrity maintained over long cable runs from the probe to the monitor rack?
The 21000-16-10-15-102-03-02 housing is designed to work with Bently Nevada matched extension cables and Proximitor sensors, which are calibrated as a system to maintain signal accuracy over cable lengths up to 9 meters (standard) or longer with extended-range configurations. The eddy-current signal is a low-impedance voltage output, inherently resistant to electromagnetic interference common in industrial environments with VFDs, motors, and high-voltage switchgear nearby.

Q3: Can the 21000 Series proximity probe data be accessed remotely for predictive maintenance and diagnostics?
Yes. Once the vibration data is available on the plant network via the 3500/22M gateway, it can be accessed by any OPC-UA-compatible client, including cloud-based predictive maintenance platforms and edge computing gateways. Remote engineers can monitor shaft vibration trends, gap voltages, and alarm states in real time without on-site access, enabling proactive maintenance scheduling and reducing unplanned downtime.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 21000-16-10-15-102-03-02?
Every Bently Nevada 21000-16-10-15-102-03-02 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. Units undergo pre-shipment functional verification to confirm mechanical integrity and dimensional accuracy. Availability is confirmed via RFQ for shipment arranged after confirmation, with worldwide shipping supported. For technical verification or application-specific questions, contact our team directly.
