Bently Nevada 21000-34-05-15-056-04-02 Probe 21000

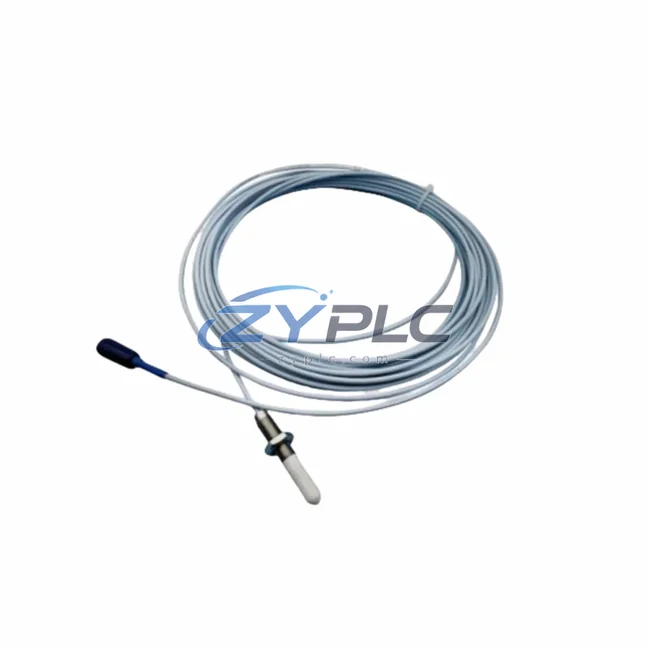

Bently Nevada 21000-34-05-15-056-04-02 Proximity Probe for 21000 Series

The Bently Nevada 21000-34-05-15-056-04-02 is a precision eddy-current proximity probe engineered for seamless system integration within the Bently Nevada 21000 Series machinery protection and condition monitoring architecture. Designed to deliver continuous, non-contact displacement and vibration measurements, this probe serves as a foundational sensing element across multi-layered industrial automation systems — from rotating machinery protection in power generation to critical compressor train monitoring in petrochemical facilities.

In modern industrial control architectures, the proximity probe does not operate in isolation. It functions as the primary signal source at the field sensing layer, feeding real-time shaft displacement data upward through the signal conditioning layer, into the monitoring and protection layer, and ultimately into the supervisory control and data acquisition (SCADA) or distributed control system (DCS) environment. The 21000-34-05-15-056-04-02 is specifically dimensioned and calibrated to interface directly with the Bently Nevada 3300 XL proximitor/seismic transducer system and the 3500 Series machinery protection system, ensuring signal fidelity and architectural consistency across the entire measurement chain.

System engineers specifying this probe for new installations or replacement applications benefit from its compatibility with the broader Bently Nevada ecosystem, including the 3500/42M proximitor I/O module, the 3500/22M transient data interface, and the System 1 condition monitoring software platform. This system integration capability means that the probe’s output can be directly correlated with process variables from the DCS, enabling advanced diagnostic workflows such as orbit plot analysis, Bode plot generation, and cascade spectrum trending — all without signal conversion or protocol bridging overhead.

Product Specification Table

System Compatibility Notes

The 21000-34-05-15-056-04-02 proximity probe achieves its full architectural value when deployed as part of a coordinated, multi-component machinery protection system. At the signal conditioning layer, the probe pairs with the Bently Nevada 3300 XL proximitor, which provides the -24 VDC excitation voltage and converts the raw eddy-current signal into a calibrated DC output suitable for downstream monitoring hardware. This proximitor-probe pairing is the fundamental building block of any Bently Nevada-based vibration monitoring architecture.

At the monitoring and protection layer, the conditioned signal feeds into the Bently Nevada 3500 Series rack — specifically the 3500/42M proximitor I/O module for radial vibration, or the 3500/46M position monitor for axial thrust measurement applications. The 3500 rack’s modular backplane architecture allows engineers to combine multiple I/O modules — including the 3500/22M transient data interface and the 3500/15 power supply module — within a single 19-inch rack enclosure, minimizing panel space while maximizing channel density.

For redundant protection architectures required in API 670-compliant installations, the 21000-34-05-15-056-04-02 can be deployed in dual-probe configurations, with each probe feeding an independent monitoring channel within the 3500 rack. This redundancy eliminates single points of failure at the sensing layer and ensures continuous protection even during scheduled probe maintenance or replacement cycles. The 3500/20 rack interface module manages communication between the protection rack and the plant DCS or SCADA system via Modbus TCP or OPC-DA/UA protocols, enabling seamless system integration with higher-level control platforms such as Emerson DeltaV or Honeywell Experion PKS.

At the human-machine interface layer, vibration data from this probe is visualized through System 1 Evolution condition monitoring software, which aggregates proximity probe signals alongside process data from the DCS to generate comprehensive machine health dashboards. Engineers can configure alarm setpoints, trend historical data, and generate compliance reports — all within a unified software environment that treats the 21000-34-05-15-056-04-02 as a named, calibrated asset within the plant asset registry.

For field wiring and termination, the probe’s integral cable terminates at a Bently Nevada 3300 XL extension cable junction, which connects to the proximitor via a standard coaxial connector. Terminal blocks within the control cabinet — typically DIN-rail mounted Phoenix Contact or Weidmuller barrier terminal strips — provide the intermediate connection points that allow field cables to be disconnected for maintenance without disturbing the rack wiring. This architecture supports hot-swap maintenance procedures and reduces mean time to repair (MTTR) during unplanned outages.

Industrial Application Notes

The Bently Nevada 21000-34-05-15-056-04-02 proximity probe is deployed across a wide range of heavy industrial sectors where rotating machinery protection is mission-critical.

In power generation — including gas turbine, steam turbine, and hydro turbine plants — this probe monitors shaft radial vibration and eccentricity at bearing locations, providing the early warning signals that prevent catastrophic rotor failures. Combined with the 3500 Series protection rack and System 1 software, it enables condition-based maintenance programs that extend turbine overhaul intervals and reduce unplanned downtime.

In petrochemical and refinery applications, the probe is installed on centrifugal compressors, pumps, and gearboxes operating in hazardous area classifications. Its non-contact measurement principle eliminates wear and eliminates the need for periodic recalibration under normal operating conditions, making it well-suited for continuous operation in environments where access for maintenance is restricted.

In steel and metallurgical plants, the probe monitors rolling mill drive trains and large induction motor shafts, where high ambient temperatures and electromagnetic interference demand robust signal conditioning — a requirement met by the 3300 XL proximitor’s differential input architecture.

In water and wastewater treatment facilities, the probe is applied to large vertical pump motors and blower trains, where axial and radial vibration monitoring supports predictive maintenance programs aligned with utility asset management frameworks.

In mining and mineral processing, the probe monitors SAG mill pinion bearings and large slurry pump shafts, providing the continuous vibration data needed to optimize grinding circuit availability and prevent unplanned shutdowns that carry significant production cost penalties.

Product Compatibility FAQ

Q1: Is the 21000-34-05-15-056-04-02 directly compatible with the Bently Nevada 3500 Series rack without additional signal conditioning?
A: The 21000-34-05-15-056-04-02 proximity probe requires a compatible Bently Nevada proximitor — such as the 3300 XL 8 mm proximitor — to provide excitation voltage and signal conditioning before the output can be accepted by the 3500/42M I/O module. The probe, extension cable, and proximitor together form the complete transducer system. Ensure that the proximitor’s calibration range matches the probe tip diameter and target material specified for your application. Our technical team can confirm the correct proximitor part number for your specific installation.

Q2: Can this probe be used in a redundant dual-probe architecture for API 670 compliance, and how does this affect the 3500 rack configuration?
A: Yes. API 670 radial vibration protection typically requires two proximity probes mounted 90° apart (X and Y planes) at each bearing location. Each probe feeds an independent channel within the 3500/42M module, and the rack’s voting logic can be configured for 1-of-2 or 2-of-2 alarm/trip logic depending on the machinery criticality classification. The 3500/20 rack interface module handles the communication of both channel states to the plant DCS simultaneously, maintaining full system integration across the protection and control layers. Our engineering team can assist with rack configuration and channel mapping documentation.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty replacement if a probe fails in service?
A: The warranty terms confirmed during quotation covers manufacturing defects in materials and workmanship from the date of shipment. In the event of a probe failure within the warranty period, contact our technical support team with the original order reference and a description of the failure mode. We will arrange expedited replacement shipment to minimize system downtime. For critical applications where probe replacement lead time is a concern, we recommend maintaining a site spare — our inventory supply program ensures consistent stock availability for the 21000 Series product family, supporting long-term maintenance planning and reducing the risk of extended machinery outages due to parts unavailability.
