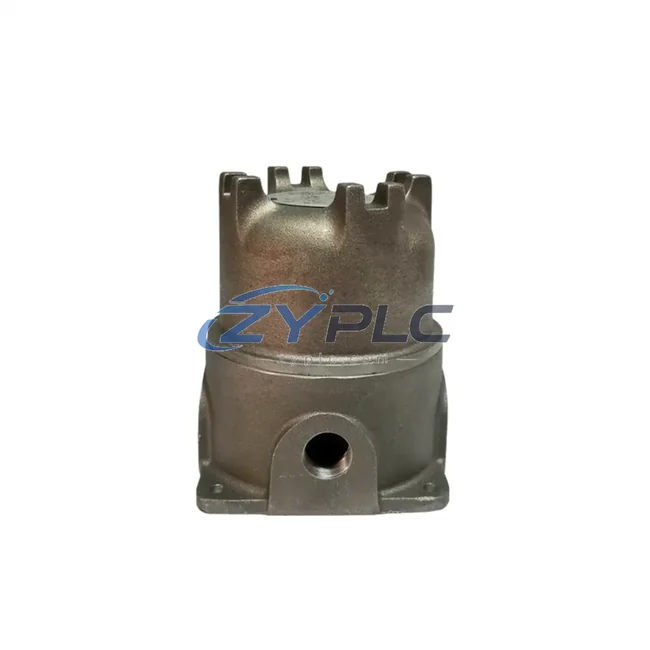

Bently Nevada 21022-00-00-017-00 Probe Housing for 21000 Series Automation
The Bently Nevada 21022-00-00-017-00 is a precision-engineered Dual Axial Probe Housing designed for the 21000 Series continuous vibration monitoring platform. In modern industrial facilities where unplanned downtime and excessive operating load directly erode profitability, this probe housing plays a foundational role in sustaining efficient, data-driven machine health management. By ensuring accurate, low-noise signal transmission from proximity probes to the monitoring system, the 21022-00-00-017-00 enables plant engineers to detect mechanical anomalies early, reduce unnecessary motor load, and optimize the overall energy footprint of rotating equipment.
Industrial facilities operating large rotating machinery — including turbines, compressors, pumps, and motors — face a persistent challenge: energy is wasted not only through mechanical inefficiency but also through reactive maintenance cycles that force equipment to run in degraded states. The 21022-00-00-017-00 addresses this by providing a stable, shielded housing environment for eddy-current proximity probes, preserving signal integrity across the full operating range of the 21000 Series monitoring rack. When paired with the Bently Nevada 3500/42M Proximitor I/O Module and the 3500/22M Transient Data Interface, the system delivers real-time shaft displacement data that feeds directly into maintenance planning decisions at the control layer.
Product Specification Table
| Parameter |
Specification / Value |
| SKU |
21022-00-00-017-00 |
| Series |
Bently Nevada 21000 Series |
| Product Type |
Dual Axial Probe Housing Assembly |
| Signal Transmission Efficiency |
Low-loss coaxial signal path, minimizing measurement error |
| Compatible Monitoring Systems |
Bently Nevada 3500 Series, 21000 Series Racks |
| Compatible Probes |
3300 XL 8mm, 3300 5mm Proximity Probes |
| Application Environment |
Turbines, Compressors, Pumps, Motors — Heavy Industrial |
| Maintenance Value |
Enables early fault detection → reduces reactive unplanned downtime and unplanned downtime |
| Origin |
United States |
| Inventory Status |
RFQ Available — shipment arranged after confirmation |
| Warranty |
warranty terms confirmed during quotation |
| Pre-shipment Testing |
Full functional and signal integrity test performed before dispatch |
System Compatibility and Application
Effective industrial maintenance planning is never the result of a single component — it emerges from a tightly integrated architecture where sensing, control, drive regulation, and data feedback operate in concert. The Bently Nevada 21022-00-00-017-00 Probe Housing sits at the sensing layer of this architecture, providing the mechanical and electrical foundation for reliable shaft vibration measurement.
In a typical high-efficiency drive train monitoring setup, the 21022-00-00-017-00 houses proximity probes that feed raw displacement signals into the Bently Nevada 3500/40M Proximitor I/O Module. These signals are processed by the 3500/15 Power Supply Module within the monitoring rack, which is engineered for low self-consumption to minimize auxiliary energy draw. The processed vibration data is then transmitted via Modbus TCP or FOUNDATION Fieldbus protocols to the plant’s distributed control system (DCS) or SCADA layer — for example, a Rockwell Automation ControlLogix L85E PLC — where maintenance planning algorithms can adjust motor speed references in real time.
On the drive side, variable frequency drives such as the ABB ACS880 or Siemens SINAMICS G120 receive speed correction signals derived from vibration trend data. When the 21000 Series monitoring system detects rising vibration amplitude — often an early indicator of bearing wear or rotor imbalance — the control system can proactively reduce motor speed or redistribute load across parallel drive trains, preventing the energy spike associated with running degraded equipment at full load. This closed-loop interaction between the probe housing assembly, the monitoring rack, the PLC, and the VFD is the core mechanism through which the 21022-00-00-017-00 contributes to measurable operational stability.
For facilities requiring granular power consumption visibility, the monitoring architecture is further enhanced by integrating Schneider Electric PowerLogic ION9000 power quality meters at the motor control center (MCC) level. These meters capture real-time kW, kVAR, and power factor data, which — when correlated with vibration trends from the 21000 Series rack — allow energy engineers to distinguish between electrical inefficiency and mechanical degradation as root causes of excess consumption. The Bently Nevada TDXnet data acquisition system can aggregate both vibration and power data streams, providing a unified dashboard for maintenance-focused predictive maintenance decisions.
At the I/O and field communication layer, Bently Nevada 3500/92 Communication Gateway Modules enable seamless data exchange between the 21000 Series rack and higher-level control platforms, ensuring that vibration-derived energy insights are available to plant-wide maintenance planning systems without latency or data loss.
Maintenance and Replacement Notes
In continuous process industries — petrochemical, power generation, pulp and paper, and heavy manufacturing — rotating equipment accounts for 60–70% of total facility operating load. The majority of this energy is consumed by motors driving compressors, pumps, fans, and turbines, all of which are subject to mechanical degradation that progressively increases energy demand while reducing useful output.
The Bently Nevada 21022-00-00-017-00 Probe Housing enables a proactive maintenance planning strategy by ensuring that the proximity probes monitoring these critical machines deliver clean, accurate displacement signals at all times. A misaligned or poorly housed probe introduces measurement noise that can mask early-stage faults, forcing maintenance teams to rely on lagging indicators — vibration alarms, temperature excursions, or outright failures — rather than the leading indicators that enable energy-efficient intervention.
Consider a centrifugal compressor train in a gas processing facility. When the 21022-00-00-017-00 is correctly installed and the 21000 Series monitoring system is operating at full sensitivity, shaft orbit plots and gap voltage trends can reveal developing rotor rub or bearing degradation weeks before the fault becomes critical. Maintenance teams can schedule corrective action during planned downtime windows, avoiding the energy-intensive restart cycles associated with emergency shutdowns. More importantly, the compressor can be operated at its optimal efficiency point — rather than being derated as a precaution — because the monitoring system provides confidence in the machine’s actual mechanical condition.
On production lines with multiple parallel drive systems, the vibration data collected through the 21022-00-00-017-00 and processed by the 21000 Series rack can be used to balance load distribution across machines, ensuring that no single unit operates in an inefficient high-vibration state while others run underloaded. This load balancing, coordinated through the plant DCS, directly reduces aggregate operating load and extends mean time between maintenance (MTBM) for the entire drive train fleet.
Pre-shipment testing of the 21022-00-00-017-00 includes full signal path verification and mechanical integrity checks, ensuring that the unit performs to specification from the moment of installation. Combined with a warranty terms confirmed during quotation, this testing protocol reduces the risk of early-life failures that would otherwise disrupt production schedules and trigger unplanned energy-intensive restart sequences.
Product Sourcing FAQ
Q1: How does the 21022-00-00-017-00 contribute to measurable operational stability in rotating equipment applications?
The probe housing ensures signal integrity for the proximity probes monitoring shaft displacement. Accurate, low-noise vibration data enables early fault detection, allowing plant operators to maintain rotating equipment at its optimal efficiency point rather than running degraded machines at elevated operating load. By enabling proactive maintenance scheduling, the 21022-00-00-017-00 helps eliminate the unplanned downtime associated with reactive maintenance cycles and emergency restarts.
Q2: Is the 21022-00-00-017-00 compatible with existing 3500 Series monitoring racks and modern DCS platforms?
Yes. The 21022-00-00-017-00 is designed for use within the Bently Nevada 21000 Series monitoring architecture and is compatible with 3300 XL 8mm and 3300 5mm proximity probes. The 21000 Series rack integrates with major DCS and SCADA platforms via standard industrial communication protocols including Modbus TCP and FOUNDATION Fieldbus, making it suitable for both greenfield installations and retrofit projects on existing control infrastructure.
Q3: What is the recommended replacement and testing procedure for this probe housing?
Replacement should be performed during scheduled maintenance windows to avoid production disruption. Prior to installation, verify probe gap voltage and signal output against the 21000 Series calibration specifications. Each 21022-00-00-017-00 unit supplied by ZYPLC undergoes full functional and signal integrity testing before shipment, reducing commissioning time and ensuring immediate operational readiness upon installation.
Q4: What warranty and after-sales support is provided with the 21022-00-00-017-00?
All 21022-00-00-017-00 units are covered by a warranty terms confirmed during quotation from the date of shipment. ZYPLC maintains RFQ-confirmed sourcing for rapid dispatch, minimizing lead times for critical maintenance requirements. Technical support is available to assist with installation verification, system compatibility questions, and replacement planning.
