Bently Nevada 21474-075-00 Probe Extension Cable 3300

Bently Nevada 21474-075-00 Probe Extension Cable 3300: Precision Vibration Monitoring for Industrial Automation

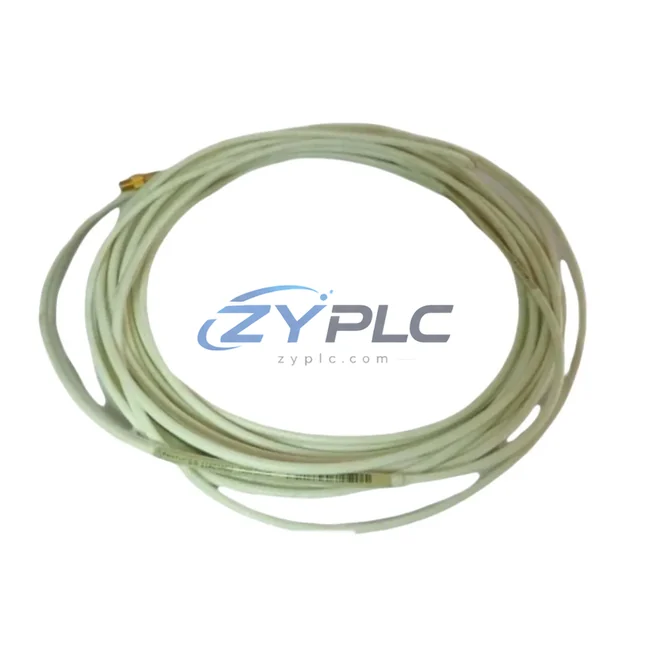

In modern industrial facilities where uptime directly translates to profitability, the Bently Nevada 21474-075-00 Probe Extension Cable plays a foundational role in sustaining maintenance-focused machine health monitoring across rotating equipment. Designed specifically for the 3300 Series vibration monitoring system, this extension cable ensures that proximity probes maintain accurate, low-loss signal transmission between the sensing tip and the proximitor — a critical link in any condition-based maintenance strategy aimed at reducing downtime risk and unplanned downtime.

The 21474-075-00 is engineered to deliver consistent impedance-matched performance across its full operating length, minimizing signal attenuation that could otherwise cause false readings, trigger unnecessary shutdowns, or mask developing faults in turbines, compressors, pumps, and motors. By maintaining signal integrity, the cable directly supports the ability of the 3300 Series system to detect early-stage mechanical anomalies — enabling maintenance teams to intervene before a minor imbalance escalates into a catastrophic failure that wastes both energy and production capacity.

Product Specification Table

System Compatibility and Application

The 21474-075-00 extension cable does not operate in isolation — it is a precision component within a tightly integrated vibration monitoring and machine protection architecture. In a typical energy-optimized plant configuration, the cable connects a 3300 XL 8mm Proximity Probe mounted on a turbine shaft to a 3300 XL Proximitor Sensor, which converts the raw eddy-current signal into a calibrated voltage output readable by the 3300/16 Monitor. This monitor, in turn, feeds shaft displacement data into the plant’s distributed control system or safety instrumented system, where it informs decisions about load balancing and drive speed adjustment.

When integrated with a Bently Nevada System 1 Condition Monitoring Software platform, the signal chain anchored by the 21474-075-00 becomes part of a real-time asset performance management loop. Vibration trends captured through the extension cable feed into predictive algorithms that flag bearing wear, rotor unbalance, and misalignment weeks before they cause efficiency losses. This allows operations teams to schedule corrective maintenance during planned outages rather than reacting to emergency stops — a shift that can reduce downtime associated with uncontrolled restarts and thermal cycling by a measurable margin.

On the drive side, plants running Bently Nevada monitoring alongside variable frequency drives — such as those in the Allen-Bradley PowerFlex 755 series or ABB ACS880 series — benefit from closed-loop feedback that adjusts motor speed based on actual mechanical load rather than fixed setpoints. The vibration data flowing through the 21474-075-00 cable helps validate that speed reductions are not introducing resonance conditions, enabling more aggressive operational-efficiency drive profiles without compromising machine integrity.

For facilities using Profibus DP or Modbus RTU communication backbones, the 3300 Series monitor outputs can be mapped to SCADA or PLC platforms — including Siemens S7-300 or Rockwell ControlLogix systems — where vibration thresholds are used to trigger automated load shedding or equipment rotation sequences. This level of integration transforms the humble extension cable into a data conduit that actively participates in plant-wide maintenance planning strategies.

Power quality monitoring instruments, such as the Fluke 435-II Power Quality Analyzer, are often deployed alongside vibration monitoring systems to correlate electrical anomalies with mechanical events. When a motor drawing excessive current is also showing elevated vibration via the 3300 Series system, the combined data set provides a far more actionable picture of energy inefficiency than either instrument could deliver alone. The 21474-075-00 is the physical link that makes this cross-domain correlation possible.

Maintenance and Replacement Notes

Consider a petrochemical facility running a bank of centrifugal compressors in continuous service. Each compressor is monitored by a 3300 Series system using 3300 NSv Proximity Probes connected via 21474-075-00 extension cables to proximitor sensors mounted in junction boxes outside the hazardous area. The monitors feed shaft gap voltage and vibration amplitude data to a Rockwell ControlLogix PLC, which uses this information to modulate the speed of the compressor drive through a variable frequency drive.

Without reliable signal transmission through the extension cable, the control loop degrades. A corroded or improperly terminated cable introduces noise that the monitor interprets as vibration, causing the control system to reduce drive speed unnecessarily — wasting energy by running the compressor below its optimal efficiency point, or triggering spurious shutdowns that require energy-intensive restarts. The 21474-075-00, with its factory-terminated connectors and shielded coaxial construction, eliminates this failure mode and ensures the control loop operates on clean, accurate data.

In power generation applications, where turbine efficiency is measured in fractions of a percent, the ability to detect and correct rotor bow, bearing wear, or seal degradation early — enabled by accurate vibration data flowing through the 21474-075-00 — can translate directly into heat rate improvements and reduced fuel consumption. Maintenance teams using Bently Nevada System 1 software can trend shaft centerline position over months, identifying gradual bearing wear that, if left unaddressed, would force the turbine to operate at reduced load to avoid vibration trips — a significant source of energy inefficiency in baseload generation.

For discrete manufacturing lines running high-speed spindles or conveyor drive motors, the 3300 Series monitoring system connected via 21474-075-00 cables provides the vibration baseline data needed to implement condition-based lubrication schedules. Over-lubrication and under-lubrication are both sources of downtime and accelerated wear; by monitoring bearing vibration signatures in real time, maintenance intervals can be optimized to match actual equipment condition rather than fixed calendar schedules, reducing both lubricant consumption and the energy overhead of friction-induced losses.

All units supplied by ZYPLC undergo outgoing functional testing to verify cable continuity, shield integrity, and connector termination quality before shipment. This pre-shipment inspection process ensures that the 21474-075-00 arrives ready for installation without requiring on-site troubleshooting that delays commissioning and extends the period during which monitoring coverage is absent. Combined with a warranty and support terms confirmed before quote covering manufacturing defects, this testing protocol gives procurement and maintenance teams confidence in the reliability of every cable supplied.

Product Sourcing FAQ

Q1: How does the 21474-075-00 extension cable contribute to operational stability in a rotating equipment application?
By ensuring accurate, low-noise vibration signal transmission to the 3300 Series monitor, the cable enables the control system to make precise, data-driven decisions about drive speed and load. This prevents both over-speed operation (which wastes energy) and unnecessary shutdowns (which waste energy through restart thermal cycling), directly supporting a more efficient operating profile for motors and drives.

Q2: Is the 21474-075-00 compatible with all 3300 Series proximity probes and proximitor sensors?
Yes. The 21474-075-00 is designed for use within the Bently Nevada 3300 Series system and is compatible with 3300 XL 8mm, 3300 5mm, and 3300 NSv proximity probes when used with the corresponding 3300 XL Proximitor Sensor. Always verify the total system length (probe + extension cable) matches the proximitor’s calibrated range to ensure measurement accuracy.

Q3: What is the recommended replacement interval, and how can I assess whether the cable needs replacement?
There is no fixed calendar-based replacement interval for the 21474-075-00 under normal operating conditions. Replacement is recommended when the 3300 Series monitor shows elevated noise floor readings, erratic gap voltage, or when physical inspection reveals jacket damage, connector corrosion, or shield continuity loss. ZYPLC recommends keeping a spare cable in inventory to minimize monitoring downtime during replacement.

Q4: What warranty and testing does ZYPLC provide with the 21474-075-00?
Every 21474-075-00 supplied by ZYPLC is Warranty terms are confirmed during quotation. Prior to shipment, each cable undergoes outgoing inspection including continuity testing and connector verification. This ensures the cable is fully functional upon arrival and prepared for installation after site verification into your 3300 Series monitoring system.

—
