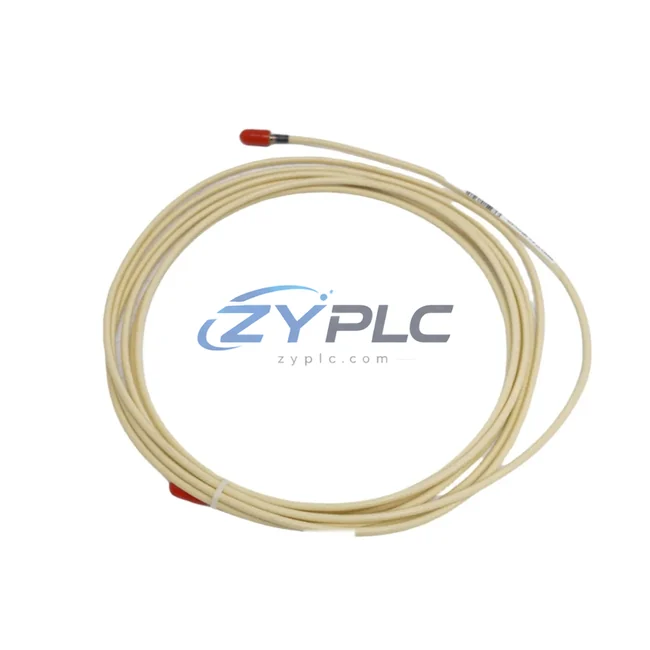

The Bently Nevada 21747-075-00 Proximitor Probe Extension is a precision-engineered signal transmission component designed to extend the reach of eddy-current proximity sensing within industrial rotating machinery monitoring networks. As a critical link in the data acquisition chain, this extension cable connects field-mounted proximity probes to Proximitor sensors, enabling continuous, real-time vibration and position data to flow from rotating shafts and bearing housings into the broader plant automation and condition monitoring infrastructure.

In modern smart factory environments, reliable signal integrity at the field level is the foundation of every data-driven decision. The 21747-075-00 ensures that raw displacement signals captured at the machine are transmitted without degradation to the Proximitor sensor, which then converts them into industry-standard voltage outputs compatible with the Bently Nevada 3300 XL monitoring system. From there, digitized vibration data is routed through the plant’s industrial Ethernet backbone or serial communication links into SCADA platforms, historian databases, and HMI dashboards — giving operators and engineers a complete, real-time picture of machine health across the entire facility.

Compatibility & Integration Notes

Connected Automation Data Flow

The 21747-075-00 extension cable sits at the very beginning of the industrial data chain. A Bently Nevada 3300 XL 8mm Proximity Probe is mounted adjacent to the rotating shaft, generating a continuous eddy-current field. The 21747-075-00 extension transmits this raw signal over the required installation distance to the Bently Nevada 3300 XL Proximitor Sensor, which conditions and converts it into a ±24 VDC analog output proportional to the gap distance.

This conditioned signal feeds directly into the Bently Nevada 3500/42M Proximitor Monitor — a rack-mounted module within the 3500 Series machinery protection system. The 3500 rack aggregates data from multiple channels, including inputs from 3500/40M Proximitor Monitors for radial vibration and 3500/45 Position Monitor modules for axial thrust, creating a comprehensive machine protection layer. Alarm and trip relay outputs from the 3500 rack are wired to the plant’s safety PLC or DCS, ensuring automated protective shutdowns when vibration thresholds are exceeded.

Simultaneously, the 3500 system communicates over Modbus TCP or OPC-UA to the plant’s SCADA gateway — often a Bently Nevada System 1 Evolution software platform — where vibration trends, spectrum data, and alarm histories are stored and visualized. Operators monitoring the control room HMI can observe real-time shaft centerline plots, orbit diagrams, and trend graphs sourced directly from the 21747-075-00’s signal path. For facilities running the Bently Nevada ADRE 408 DSPi portable data acquisition system, the same probe and extension infrastructure supports detailed diagnostic analysis during commissioning or troubleshooting campaigns.

In larger plant architectures, the 3500 rack’s data is further aggregated by an edge gateway running Trendmaster Pro distributed monitoring nodes, which consolidate vibration data from multiple machines across the facility and push it to enterprise asset management (EAM) or predictive maintenance platforms. This end-to-end connectivity — from the 21747-075-00 extension cable at the machine to the enterprise dashboard in the control room — is what defines the modern industrial IoT data flow for rotating equipment health management.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plants is data isolation: critical machine health information trapped at the field level, unable to reach the systems where it can drive decisions. The Bently Nevada 21747-075-00 directly addresses this by ensuring that proximity probe signals are transmitted reliably over the full installation distance, eliminating signal attenuation or noise pickup that would otherwise corrupt the data before it even reaches the monitoring system.

Protocol fragmentation is another common barrier. Many older plants operate with a mix of 4–20 mA analog loops, Modbus RTU serial links, and newer OPC-UA Ethernet connections. The 21747-075-00, as part of the 3300/3500 ecosystem, bridges the analog field layer to the digital monitoring layer, where the 3500 system’s built-in communication modules handle protocol conversion and data normalization before forwarding structured data to SCADA and historian systems.

Remote monitoring and diagnostics are increasingly essential as plants reduce on-site staffing. With the 21747-075-00 maintaining signal integrity at the source, remote engineers accessing the System 1 Evolution platform can perform full spectral analysis, review historical trends, and configure alarm setpoints without being physically present at the machine. This capability is critical for facilities managing geographically distributed assets such as pipeline compressor stations, offshore platforms, or multi-site power generation plants.

Production line transparency — knowing the real-time health status of every critical rotating machine — is achievable only when every link in the data chain is reliable. The 21747-075-00 ensures that the first and most fundamental link, the probe-to-sensor connection, never becomes the weak point that undermines the entire monitoring architecture. Combined with the 3500 system’s redundant communication paths and the System 1 platform’s advanced analytics, plants can achieve the level of asset visibility required for true predictive maintenance programs.

Industrial Connectivity FAQ

Q1: What is the signal transmission delay introduced by the 21747-075-00 extension cable?
The 21747-075-00 is a passive coaxial extension cable with negligible signal delay. The eddy-current signal propagates at near-light speed through the cable, and the total system latency is determined by the Proximitor sensor’s response time and the 3500 monitor’s sampling rate — typically sub-millisecond for vibration monitoring applications.

Q2: Is the 21747-075-00 compatible with non-Bently Nevada monitoring systems?
The 21747-075-00 is designed for use within the Bently Nevada 3300 XL probe and Proximitor ecosystem. Its connectors and impedance characteristics are matched to Bently Nevada Proximitor sensors. While the analog output of the Proximitor sensor (±24 VDC) can interface with third-party monitors and SCADA systems via standard analog input cards, the extension cable itself is intended for use with Bently Nevada-compatible sensors.

Q3: How does this component contribute to network stability in a continuous monitoring system?
Signal integrity is the foundation of network stability in vibration monitoring. The 21747-075-00’s shielded coaxial construction minimizes electromagnetic interference (EMI) from adjacent power cables, VFDs, and motor drives — common sources of noise in industrial environments. A stable, clean signal at the input of the Proximitor sensor ensures that the 3500 monitor’s alarm and trip logic operates on accurate data, preventing nuisance trips or missed fault detections that could destabilize the plant’s protection network.

Q4: What warranty and quality assurance does ZYPLC provide for the 21747-075-00?
Every Bently Nevada 21747-075-00 supplied by ZYPLC is covered by a warranty and support terms confirmed before quote from the date of shipment. Each unit undergoes pre-shipment functional testing to verify connector integrity and signal continuity. ZYPLC maintains Availability confirmed by RFQ inventory for fast global dispatch via DHL or FedEx, with typical lead times of 3–7 business days. Our technical team is available to support installation, compatibility verification, and system integration queries.
