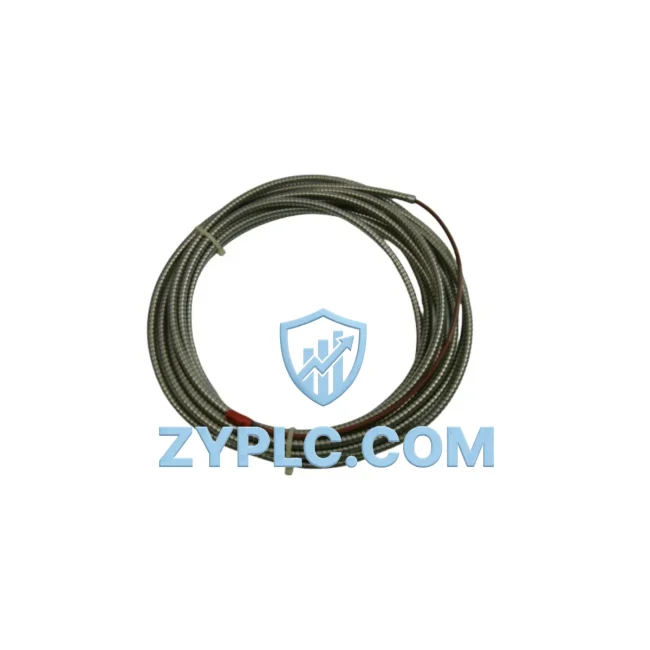

Bently Nevada 24710-080-01 Extension Cable for 3500 Series

Bently Nevada 24710-080-01: Industrial Data Link for 3500 Series Vibration Monitoring Systems

The Bently Nevada 24710-080-01 is a precision-engineered extension cable designed to serve as a critical physical link within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern smart factory environments, reliable signal transmission between field-mounted transducers and rack-based monitoring modules is not optional — it is the foundation upon which real-time vibration data, proximity probe outputs, and dynamic pressure signals are delivered without degradation to the 3500 Series rack processors. The 24710-080-01 fulfills this role with shielded, low-noise construction that preserves signal integrity across the full data acquisition chain.

From the moment a proximity probe detects shaft displacement at a rotating machine, the signal must travel through a precisely matched extension cable before reaching the 3500/42M Proximitor I/O Module or the 3500/40M Proximitor Seismic Monitor. Any impedance mismatch, ground loop, or cable length deviation at this stage introduces measurement error that cascades into false alarms, missed fault detection, and ultimately unplanned downtime. The 24710-080-01 is factory-calibrated to integrate seamlessly with Bently Nevada’s coaxial transducer system, ensuring that the signal arriving at the monitor module is a true representation of the mechanical condition being measured.

In a fully networked plant, the 3500 Series rack communicates upstream via the 3500/22M Transient Data Interface (TDI) or the 3500/92 Communication Gateway Module, which bridges the rack’s internal data bus to plant-level networks including Modbus TCP, PROFIBUS DP, and OPC DA/UA. The 24710-080-01 extension cable is the first physical segment in this data chain — connecting the transducer in the field to the I/O module in the rack, which then feeds processed vibration vectors, gap voltages, and alarm states to the gateway module, and from there to the plant’s System 1 Evolution condition monitoring software or third-party SCADA platforms such as GE iFIX, Wonderware AVEVA, or OSIsoft PI.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding where the Bently Nevada 24710-080-01 sits within the broader automation architecture helps engineers specify the correct cable length and configuration for their installation. In a typical turbine or compressor protection loop, a Bently Nevada 3300 XL 8mm Proximity Transducer is mounted at the bearing housing, its output traveling through the 24710-080-01 extension cable to the 3500/42M Proximitor I/O Module installed in the 3500 Series rack. The rack’s backplane distributes power and data to adjacent modules including the 3500/40M Proximitor Seismic Monitor for combined radial vibration and seismic measurement, and the 3500/25 Enhanced Keyphasor Module for phase reference and speed tracking.

Once the 3500 rack has processed the raw transducer signals into engineering-unit vibration vectors and alarm states, the 3500/22M Transient Data Interface captures high-speed waveform data for transient analysis during machine startups and shutdowns. This data is simultaneously available to the 3500/92 Communication Gateway Module, which publishes real-time process values to the plant DCS or SCADA system over Modbus TCP or PROFIBUS DP. At the SCADA layer, operators monitoring a Yokogawa CENTUM VP or Emerson DeltaV distributed control system receive continuous vibration trend data, overall vibration levels, and direct alarm relay states — all originating from the signal path that begins at the 24710-080-01 extension cable.

For facilities integrating condition monitoring data into an enterprise asset management platform, the OPC UA server embedded in the 3500/92 gateway publishes structured data objects that can be consumed by System 1 Evolution software running on a plant historian server. Remote diagnostic engineers accessing the system through a secure VPN connection can review waveform snapshots, orbit plots, and trend histories without being physically present at the machine — a capability that depends entirely on the unbroken signal chain from transducer through extension cable to network gateway.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy plant environments is the existence of data silos — islands of measurement information that cannot be accessed by the plant’s central monitoring infrastructure. Older vibration monitoring installations often relied on standalone panel meters or chart recorders with no network connectivity, leaving maintenance teams dependent on manual rounds and periodic data downloads. The Bently Nevada 3500 Series, equipped with the correct extension cables such as the 24710-080-01, addresses this isolation problem at the physical layer by ensuring that transducer signals are transmitted with sufficient fidelity to support both local protection functions and remote data acquisition simultaneously.

Protocol fragmentation is another common barrier. A plant may operate Modbus RTU devices on the field bus, PROFIBUS DP on the process network, and OPC DA on the historian interface — three separate communication layers that historically required manual data reconciliation. The 3500/92 Communication Gateway Module resolves this by acting as a multi-protocol bridge, and the 24710-080-01 extension cable ensures that the analog signal quality entering the rack is sufficient to produce accurate digital process values at the gateway output. Poor cable selection or incorrect cable length at the transducer level directly degrades the quality of data available at every downstream network layer.

For production line transparency and predictive maintenance programs, the ability to monitor shaft vibration, bearing temperature, and rotor position in real time — and to deliver that data to both local HMI panels and remote SCADA dashboards — requires a fully integrated signal chain. The 24710-080-01 is a verified component in that chain, supplied with a 12-month warranty and function-tested prior to shipment to ensure it meets Bently Nevada’s original performance specifications. Facilities managing multiple machine trains can standardize on this cable across their 3500 Series installations, simplifying spare parts inventory and reducing the risk of incorrect substitutions during emergency maintenance.

Industrial Connectivity FAQ

Q1: What is the maximum cable length supported by the Bently Nevada 24710-080-01, and does cable length affect communication latency?
The 24710-080-01 is rated for a specific extension length within the Bently Nevada coaxial transducer system. Exceeding the rated length introduces signal attenuation that degrades the DC gap voltage and AC vibration signal amplitude, which in turn affects the accuracy of the processed values delivered to the 3500 Series monitor module. While the extension cable itself does not introduce digital communication latency — it carries an analog signal — signal degradation at this stage can cause the monitor’s alarm processing to respond to noise rather than true machine events, effectively increasing false-alarm rates. Always verify the total system cable length (armored cable + extension cable) against the transducer system’s specification sheet.

Q2: Is the 24710-080-01 compatible with all modules in the Bently Nevada 3500 Series rack?
The 24710-080-01 is designed for use with Bently Nevada’s proximity transducer systems and is compatible with I/O modules that accept standard coaxial transducer inputs, including the 3500/42M and 3500/40M. Compatibility with specific rack configurations should be confirmed against the transducer system datasheet, as cable system matching (transducer + extension cable + monitor module) is critical for accurate measurement. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q3: How does ZYPLC ensure the 24710-080-01 meets original Bently Nevada performance specifications?
Every Bently Nevada 24710-080-01 supplied by ZYPLC is function-tested before shipment to verify electrical continuity, shielding integrity, and connector condition. Units are sourced from verified supply channels and stored under controlled conditions to prevent connector corrosion or cable jacket degradation. A 12-month warranty is provided on all units, covering defects in materials and workmanship. Customers requiring documentation of test results or traceability records should contact the ZYPLC sales team at the time of order.

Q4: Can the 3500 Series system using this extension cable be integrated with modern SCADA and cloud-based monitoring platforms?
Yes. The Bently Nevada 3500 Series supports network integration through the 3500/92 Communication Gateway Module, which provides Modbus TCP, PROFIBUS DP, and OPC DA/UA interfaces. Once the analog signal from the field transducer is correctly transmitted via the 24710-080-01 extension cable and processed by the rack monitor module, the resulting digital process values are available to any SCADA, DCS, or historian platform that supports these standard industrial protocols. Integration with cloud-based asset performance management platforms is achievable through OPC UA connectivity or via intermediate edge gateway devices.
