Bently Nevada 323174-1 Industrial Network Interface for 3701/55 Systems

Bently Nevada 323174-1 Industrial Network Interface for 3701/55 Systems: Precision Data Links for Smart Factory Connectivity

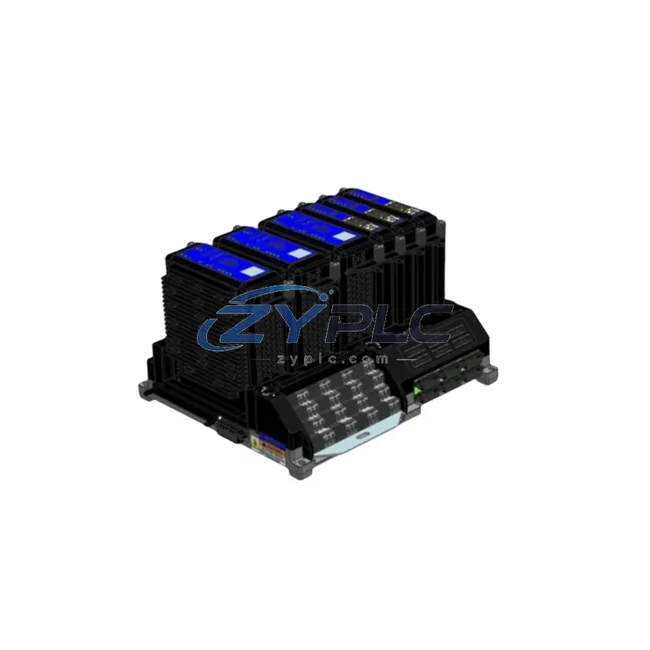

The Bently Nevada 323174-1 is a high-performance industrial network interface module engineered for the 3701/55 ADAPT Series machinery protection and condition monitoring platform. Designed to bridge the gap between field-level rotating equipment sensors and plant-wide supervisory systems, this module delivers reliable, real-time data transmission across complex industrial network architectures. Whether deployed in oil & gas, power generation, petrochemical, or heavy manufacturing environments, the 323174-1 serves as a critical communication backbone — enabling seamless integration between vibration monitoring hardware, PLC controllers, SCADA platforms, and enterprise-level data historians.

In modern smart factories, data isolation is one of the most persistent challenges. Field devices generate enormous volumes of process data — vibration amplitudes, phase angles, gap voltages, temperature readings — yet this information often remains trapped at the sensor level, inaccessible to the control room or remote operations center. The Bently Nevada 323174-1 resolves this by acting as a protocol-aware gateway, translating proprietary machinery protection signals into standardized industrial communication formats that upstream systems can consume directly. The result is a transparent, low-latency data pipeline from rotating equipment to SCADA dashboards, historian databases, and predictive maintenance analytics engines.

Compatibility & Integration Notes

Connected Automation Data Flow

The 323174-1 sits at the heart of a multi-layer industrial data architecture. At the field level, proximity probes such as the Bently Nevada 330104-10-20-05-02-00 and 330103-00-10-10-02-05 continuously measure shaft vibration and displacement on rotating machinery. These analog signals are conditioned by Proximitor sensors — including the Bently Nevada 400100-100-02 — and fed into the 3701/55 ADAPT rack, where the 323174-1 module digitizes and packages the data for network transmission.

Seismic and velocity measurements from the Bently Nevada 177230-02-01-05 Seismic Transmitter and the 330500 Velomitor Piezoelectric Velocity Sensor are simultaneously ingested, providing a comprehensive picture of machine health across both radial and axial planes. The 323174-1 aggregates these multi-channel inputs and transmits structured data packets upstream via Modbus TCP/IP or OPC-UA, depending on the target system’s protocol requirements.

At the control layer, the data stream interfaces directly with PLC platforms and DCS controllers, enabling automated alarm responses and interlock logic based on real-time vibration thresholds. The Bently Nevada 350800-01-180-00 Gas Sensor Module within the 3500 Series rack can be monitored in parallel, with the 323174-1 consolidating both mechanical and process safety data into a unified network payload. Extension cables such as the 330130-080-00-CN ensure signal integrity across long cable runs between field sensors and the monitoring rack, while the 16710-32 Interconnect Cable maintains reliable backplane connectivity within the chassis.

At the supervisory level, SCADA systems and HMI workstations receive live data feeds from the 323174-1, enabling operators to visualize vibration trends, set dynamic alarm thresholds, and initiate remote diagnostics without physical access to the machine train. Historian servers log time-stamped data for long-term trend analysis and regulatory compliance reporting. The Bently Nevada 991-01-XX-01-05 Vibration Transmitter and MOD 288865-01 Thrust Transmitter contribute additional process variables to this data stream, ensuring that both radial vibration and axial thrust are represented in the SCADA dashboard in real time.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with legacy machinery protection systems that were never designed for network connectivity. Vibration data remains siloed within standalone monitors, alarm events are logged locally without propagation to the control room, and maintenance teams must physically visit each monitoring rack to retrieve diagnostic information. The Bently Nevada 323174-1 directly addresses these challenges by retrofitting the 3701/55 ADAPT platform with modern industrial communication capabilities.

Protocol Unification: Plants running mixed-protocol environments — where some systems speak Modbus and others require OPC-UA or Ethernet/IP — no longer need separate gateway hardware for each protocol. The 323174-1 supports multiple communication standards simultaneously, allowing a single module to serve both legacy PLC networks and modern IIoT-ready platforms.

Breaking Down Data Silos: By connecting the 3701/55 rack directly to the plant network, the 323174-1 makes vibration and machinery health data available to any authorized system on the network — from the DCS in the control room to the ERP system in the corporate office. Predictive maintenance platforms can subscribe to live OPC-UA data feeds and trigger work orders automatically when vibration levels exceed baseline thresholds.

Remote Monitoring and Diagnostics: With the 323174-1 in place, remote operations centers can monitor critical rotating equipment in real time, receive alarm notifications instantly, and perform remote diagnostics without dispatching field technicians. This capability is particularly valuable for offshore platforms, remote compressor stations, and unmanned substations where physical access is costly or time-consuming.

Production Line Transparency: The module enables full production line transparency by feeding machinery health data into MES and SCADA systems, where it can be correlated with process variables such as flow rates, pressures, and temperatures. This holistic view allows operations teams to identify the root cause of production anomalies faster and with greater confidence.

System Scalability: As plant networks expand, the 323174-1 scales with them. Additional monitoring racks can be added to the network without reconfiguring the communication architecture, and the module’s support for standard industrial protocols ensures compatibility with future control system upgrades.

Industrial Connectivity FAQ

Q: What communication protocols does the Bently Nevada 323174-1 support?
A: The 323174-1 supports Modbus RTU, Modbus TCP/IP, OPC-UA, and Ethernet/IP, making it compatible with the majority of industrial PLC, DCS, SCADA, and HMI platforms currently deployed in process industries. RS-232 and RS-485 serial interfaces are also available for legacy system integration.

Q: How does the 323174-1 handle communication latency in time-critical machinery protection applications?
A: The module is optimized for low-latency data transmission, with scan cycle times designed to meet the real-time requirements of rotating equipment protection. Alarm and trip signals are prioritized in the data stream to ensure that critical events reach the control system within the response time required by the protection logic.

Q: Is the 323174-1 compatible with existing 3701/55 ADAPT Series racks and backplane configurations?
A: Yes. The 323174-1 is designed as a native module for the 3701/55 ADAPT Series platform and is fully compatible with existing rack configurations, backplane buses, and power supply arrangements. No additional hardware adapters are required for installation.

Q: What warranty and pre-shipment testing does ZYPLC provide for the 323174-1?
A: Every Bently Nevada 323174-1 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing prior to shipment. Our quality control process verifies communication interface integrity, backplane connectivity, and module initialization to ensure that the unit arrives ready for installation. For procurement inquiries, contact our team at +86 19859288691 or plc.sales@zyplc.com.
