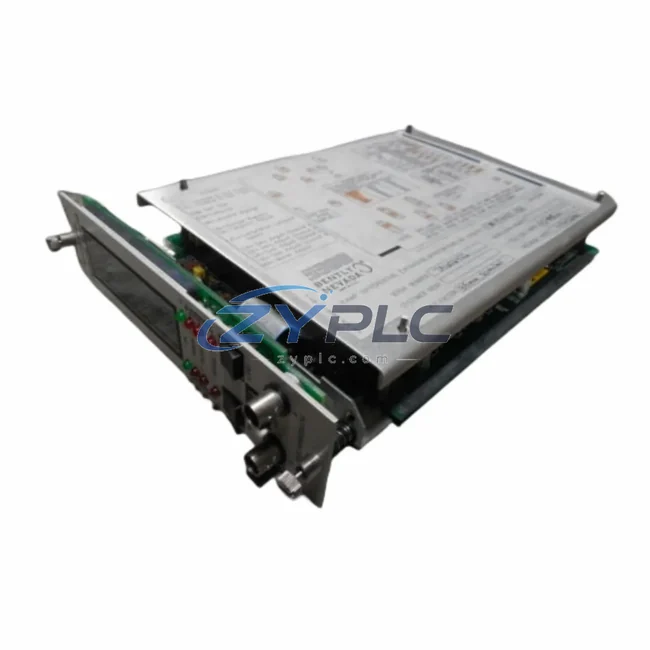

Bently Nevada 3300/46 Ramp Differential Expansion Monitor | 3300 Series

Bently Nevada 3300/46 Ramp Differential Expansion Monitor: Industrial Data Link for Smart Factory Connectivity

The Bently Nevada 3300/46 Ramp Differential Expansion Monitor is a precision industrial measurement module engineered for continuous shaft and casing differential expansion monitoring in rotating machinery environments. As a core component of the Bently Nevada 3300 Series condition monitoring platform, the 3300/46 serves as a critical data node within the industrial network architecture — bridging field-level sensor signals with plant-wide SCADA, DCS, and HMI systems to deliver real-time machinery health intelligence across the entire automation data chain.

In modern smart factory deployments, the 3300/46 does not operate in isolation. It functions as an integrated link in a layered industrial communication network, where signal acquisition at the transducer level must be reliably transmitted through protocol-compliant pathways to supervisory control systems. The module accepts inputs from Bently Nevada 3300 XL 8mm proximity transducers and compatible eddy-current sensors, converting raw displacement signals into calibrated engineering units that are immediately actionable by upstream control and monitoring platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

The Bently Nevada 3300/46 sits at the intersection of field instrumentation and plant-level data infrastructure. In a typical turbine protection architecture, Bently Nevada 3300 XL proximity probes mounted on the turbine casing feed raw displacement signals into the 3300/46 monitor card. The module processes these signals in real time, applying configurable alert and danger setpoints before transmitting 4–20 mA analog outputs to the plant DCS — commonly a GE Mark VIe turbine control system or an ABB 800xA distributed control system.

For facilities requiring digital protocol integration, the analog output of the 3300/46 is typically routed through a Bently Nevada 3500/92 Communication Gateway or a third-party Modbus RTU-to-Ethernet gateway, enabling the expansion data to be published onto the plant Ethernet backbone. From there, OSIsoft PI System historians or Honeywell Experion PKS SCADA platforms can subscribe to the data stream, enabling long-term trend analysis, predictive maintenance scheduling, and remote diagnostics from the control room or enterprise network.

Within the 3300 Series rack, the 3300/46 operates alongside complementary modules such as the Bently Nevada 3300/20 Proximitor I/O Module for transducer signal conditioning, the 3300/25 Keyphasor Module for rotational speed reference, and the 3300/55 Overspeed Detection Module for turbine trip protection. This modular architecture ensures that all vibration, position, and expansion data from a single machine train is consolidated within one rack, reducing wiring complexity and simplifying network integration.

At the supervisory layer, operators interact with the 3300/46 data through Bently Nevada System 1 Condition Monitoring Software, which aggregates signals from multiple 3300 Series racks across the plant network. System 1 provides waveform analysis, trend visualization, and alarm management — all delivered over standard industrial Ethernet to operator workstations and mobile HMI terminals. For remote sites, edge gateway devices running OPC-UA or MQTT protocols can forward critical expansion alarms to cloud-based asset management platforms, completing the data chain from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery monitoring is data isolation — where critical expansion and vibration data remains trapped within proprietary monitoring systems, invisible to the broader plant control and business intelligence infrastructure. The Bently Nevada 3300/46 directly addresses this challenge through its multi-output architecture and compatibility with standard industrial communication pathways.

In legacy plant environments, differential expansion monitors often operate as standalone instruments with no integration into the plant DCS or SCADA network. Operators must physically visit the monitoring rack to read values or acknowledge alarms, creating dangerous blind spots during transient operating conditions such as turbine startup ramps or load rejection events. The 3300/46 eliminates this isolation by providing continuous 4–20 mA outputs that can be wired directly into any DCS analog input card, immediately making expansion data visible on the operator’s main control display.

For plants pursuing digital transformation and production line transparency, the 3300/46’s compatibility with Modbus gateway devices enables full integration into modern SCADA architectures. Expansion trend data can be logged at sub-second intervals, enabling operations teams to correlate thermal growth patterns with process variables such as steam temperature, load, and speed — insights that are impossible to obtain from isolated monitoring systems. This level of data integration supports predictive maintenance programs, reduces unplanned downtime, and provides the operational transparency required for ISO 55000 asset management compliance.

System scalability is another key advantage. As plant monitoring requirements grow, additional 3300 Series modules can be added to existing racks without disrupting the network architecture. The 3300/46 supports seamless expansion of the monitoring system, whether adding new machine trains, integrating additional sensor types, or upgrading to higher-bandwidth communication gateways — all without requiring changes to the upstream SCADA or DCS configuration.

Every Bently Nevada 3300/46 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output accuracy, alarm relay operation, and communication integrity. Units are shipped with full documentation and are backed by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for shipment arranged after confirmation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3300/46 support for SCADA integration?
The 3300/46 provides 4–20 mA analog outputs and relay contact outputs as its native communication interfaces. For digital protocol integration — including Modbus RTU, Modbus TCP/IP, or OPC-UA — the module’s analog outputs are connected to a compatible protocol gateway such as the Bently Nevada 3500/92 or a third-party Modbus gateway. This approach ensures compatibility with virtually all modern DCS and SCADA platforms without requiring firmware changes to the monitor itself.

Q2: How does the 3300/46 perform during high-speed turbine startup ramps where expansion rates change rapidly?
The 3300/46 is specifically designed for ramp differential expansion monitoring, with a fast response time that captures rapid thermal growth events during turbine startup and shutdown sequences. The module’s configurable alert and danger setpoints can be tuned to match the specific thermal characteristics of each machine train, ensuring that alarm thresholds are appropriate for both steady-state operation and transient ramp conditions. Communication latency to the DCS via the 4–20 mA loop is negligible, ensuring that alarm states are reflected on the operator display within the system’s scan cycle.

Q3: Can the 3300/46 be integrated into an existing 3300 Series rack alongside other monitor modules?
Yes. The 3300/46 is fully compatible with the standard 3300 Series rack and backplane architecture. It can be installed alongside other 3300 Series modules — including vibration monitors, Keyphasor modules, and overspeed detection cards — without requiring rack reconfiguration. The modular design allows plant engineers to expand or reconfigure the monitoring system as machine train requirements evolve, supporting long-term system scalability.

Q4: What does the warranty terms confirmed during quotation cover, and how quickly can units be shipped?
All Bently Nevada 3300/46 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing is performed on every unit to verify output accuracy and alarm relay functionality before dispatch. Availability is confirmed via RFQ for shipment arranged after confirmation via international express freight, with global delivery typically completed within 3–7 business days depending on destination. For urgent requirements, expedited shipping options are available upon request.
