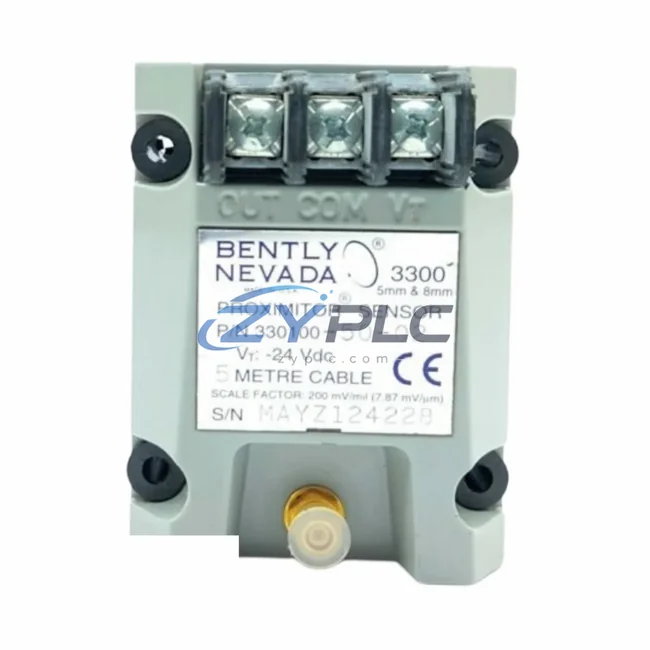

Bently Nevada 330100-50-02 Proximity Sensor for 3300 Series Systems

Bently Nevada 330100-50-02: Industrial Data Link for 3300 Series Vibration Monitoring Systems

The Bently Nevada 330100-50-02 is a precision eddy current proximity sensor engineered for continuous, real-time vibration and position monitoring in demanding industrial environments. As a core component of the Bently Nevada 3300 Series monitoring architecture, this sensor serves as the critical signal acquisition node that feeds live shaft displacement, radial vibration, and axial position data into the plant’s broader automation and condition monitoring network. Whether integrated into a turbine protection system, a compressor train, or a rotating machinery health management platform, the 330100-50-02 delivers the raw analog signal integrity that underpins every downstream data decision.

In modern smart factory deployments, the value of a proximity sensor is not measured by its output alone — it is measured by how cleanly and reliably that signal travels through the entire data chain: from the probe tip, through the extension cable and Bently Nevada 3300 XL 8mm Proximitor Sensor signal conditioner, into the 3500 Series Machinery Protection System rack, and ultimately to the SCADA historian and DCS control layer. The 330100-50-02 is designed to operate within this full-chain architecture without signal degradation, ensuring that every micron of shaft movement is captured, conditioned, and transmitted with sub-millisecond latency.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330100-50-02 sits at the very beginning of the industrial data chain. Mounted at the bearing housing of a high-speed rotating machine, the probe tip generates a continuous eddy current field that responds to the conductive target surface of the rotating shaft. This raw analog displacement signal is then routed through a matched Bently Nevada 330130-045-00-00 Extension Cable to the 3300 XL 8mm Proximitor Sensor, which conditions the signal into a calibrated DC voltage output proportional to the gap distance.

From the Proximitor, the conditioned signal enters the Bently Nevada 3500/42M Proximitor Monitor module seated within the 3500 Series Rack. This rack-based system performs real-time alarm processing — comparing live vibration amplitude against configured danger and alert setpoints — and simultaneously outputs the processed data via the rack’s communication backplane. The 3500 rack communicates upstream through its 3500/92 Communication Gateway Module, which supports Modbus TCP, enabling seamless integration with plant-level SCADA systems such as Emerson Ovation, Honeywell Experion PKS, or Wonderware System Platform.

At the SCADA layer, real-time vibration trends from the 330100-50-02 are displayed on HMI operator stations running Bently Nevada’s System 1 Condition Monitoring Software, where maintenance engineers can view waveform data, trend historical baselines, and configure predictive maintenance alerts. The data is simultaneously archived to an OSIsoft PI Historian for long-term trend analysis and compliance reporting. For facilities deploying edge computing architectures, the 3500 rack data can also be forwarded to an industrial edge gateway — such as a Moxa MGate or Advantech ADAM series — for local pre-processing before transmission to cloud-based asset performance management platforms.

In multi-machine train configurations — such as a gas turbine driving a centrifugal compressor — multiple 330100-50-02 probes are deployed at each bearing position, with all signals converging into a single 3500 rack system. The rack’s internal bus ensures synchronized, time-stamped data acquisition across all channels, eliminating the latency mismatches that would otherwise corrupt cross-channel phase analysis. This synchronized data flow is essential for accurate orbit plot generation and rotor dynamic diagnostics within System 1 software.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is the fragmentation of machine health data across incompatible systems. Older vibration monitoring installations often rely on standalone panel meters or proprietary monitoring racks that cannot communicate with modern DCS or SCADA platforms. The result is a data island: critical shaft vibration information exists at the machine level but never reaches the control room or the enterprise asset management system.

The Bently Nevada 330100-50-02, when deployed within the 3300/3500 Series ecosystem, directly addresses this isolation problem. By pairing the sensor with the 3500/92 Communication Gateway, plant engineers can bridge the gap between the machine protection layer and the plant automation network. Modbus TCP connectivity allows the 3500 rack to appear as a standard data source to any SCADA or DCS platform, enabling operators to view real-time vibration alarms alongside process variables — flow, pressure, temperature — on a unified HMI dashboard.

For plants undergoing digital transformation, this integration capability is foundational. Production line transparency — knowing the health state of every rotating machine in real time — is only achievable when the sensor signal chain is unbroken from probe to historian. The 330100-50-02 ensures that the first link in that chain is reliable, accurate, and compatible with the full range of industrial communication architectures in use today. Remote diagnostics become possible: a condition monitoring engineer in a central facility can access live waveform data from a compressor running at a remote site, diagnose an emerging bearing defect, and schedule maintenance before an unplanned shutdown occurs — all without leaving the control room.

System expansion is equally straightforward. As plant capacity grows and new machines are added to the monitoring network, additional 330100-50-02 probes and Proximitor assemblies can be integrated into existing 3500 racks or new rack segments without disrupting the communication architecture. The modular design of the 3500 Series means that the data network scales with the plant, preserving the investment in the existing SCADA and historian infrastructure.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330100-50-02 support for SCADA integration?
The 330100-50-02 itself outputs an analog DC voltage signal. When paired with the Bently Nevada 3500 Series rack and the 3500/92 Communication Gateway Module, the system supports Modbus RTU and Modbus TCP protocols, enabling direct integration with SCADA platforms, DCS systems, and OPC-DA/UA servers. This makes the sensor’s data accessible to any standard industrial automation network without additional protocol converters.

Q2: How is network stability and signal integrity maintained over long cable runs?
The 3300 Series eddy current system is designed for cable runs up to 9 meters (standard) using matched extension cables such as the 330130 series. The Proximitor sensor actively conditions the signal, compensating for cable capacitance and ensuring a stable, low-impedance analog output regardless of environmental electrical noise. For installations in high-EMI environments — near variable frequency drives or large motor starters — shielded coaxial cable assemblies and proper grounding practices are recommended to maintain signal integrity.

Q3: Can the 330100-50-02 be integrated into an existing SCADA or HMI system without replacing the entire monitoring rack?
Yes. If an existing 3500 Series rack is already installed, the 330100-50-02 can be added as a replacement or additional probe without rack reconfiguration. The 3500/92 Communication Gateway, if already present, will automatically include the new channel’s data in its Modbus register map. For legacy installations without a communication gateway, the 3500/92 module can be added to the rack to enable SCADA connectivity without replacing the existing monitor modules.
