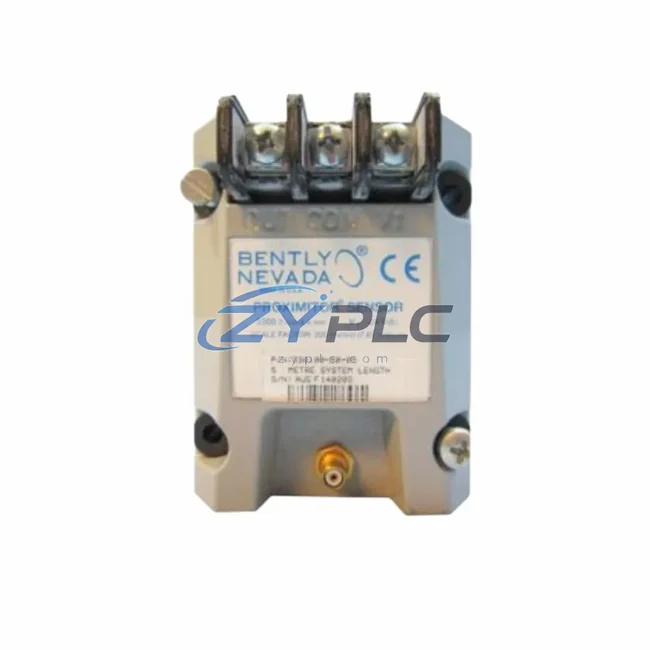

Bently Nevada 330100-50-05 Proximitor Sensor for 3300 XL

Bently Nevada 330100-50-05 Proximitor Sensor for 3300 XL

The Bently Nevada 330100-50-05 Proximitor Sensor is a precision eddy-current proximity transducer engineered for seamless integration within the 3300 XL Series machinery protection architecture. In modern industrial control environments — spanning power generation, petrochemical processing, mining, and heavy manufacturing — vibration and position monitoring are not standalone functions. They are embedded layers within a multi-tier automation hierarchy that connects field-level sensing to control-layer decision-making, and ultimately to plant-wide supervisory systems. The 330100-50-05 is designed to serve exactly this role: a reliable, calibrated signal source that feeds critical machinery data into the broader control ecosystem with minimal latency and maximum consistency.

Unlike generic proximity sensors, the 330100-50-05 is factory-matched to the 3300 XL signal conditioning infrastructure. When paired with a compatible 3300 XL Monitor Module and a 330130 or 330180 extension cable, the system delivers a precisely linearized output voltage proportional to the gap between the probe tip and the observed shaft or target surface. This signal integrity is foundational — any drift or miscalibration at the sensor level propagates through the entire monitoring chain, affecting alarm setpoints, trip thresholds, and ultimately machine availability.

Product Specification Table

System Compatibility Notes

The 330100-50-05 does not operate in isolation. Its value is fully realized when considered within the layered architecture of a complete machinery protection and process control system. At the control layer, a Bently Nevada 3500/22M Transient Data Interface or a 3500/42M Proximitor I/O Module receives the conditioned signal from the 330100-50-05 and converts it into digital alarm and trip outputs. These outputs are then passed to a plant DCS or safety PLC — such as a Rockwell Automation ControlLogix L7x series controller or a Siemens S7-400H redundant CPU — via hardwired relay contacts or a digital fieldbus interface.

At the I/O layer, the 3300 XL monitor rack typically houses multiple channel cards, each accepting inputs from a matched probe-and-proximitor pair. The 330100-50-05, when installed alongside a 330130-045-00-00 extension cable and a 330180-X0-05 Proximitor housing, forms a complete sensing chain. Multiple such chains can be aggregated within a single 3500 rack, enabling simultaneous monitoring of radial vibration, axial position, and differential expansion across an entire rotating machine train — such as a steam turbine-generator set or a centrifugal compressor with multiple bearing journals.

At the network layer, the 3500 rack communicates upstream via Modbus RTU, Modbus TCP/IP, or Profibus DP, depending on the installed communication gateway card (e.g., 3500/92 Communication Gateway). This allows the vibration data collected by the 330100-50-05 to be visible in real time on a GE iFIX or Wonderware InTouch SCADA HMI, enabling operators to trend shaft centerline plots, orbit diagrams, and Bode plots without leaving the control room.

At the power layer, the 3300 XL and 3500 racks require stable, isolated -24 VDC supplies. A dedicated Bently Nevada 3500/15 Power Supply Module or an equivalent redundant DC power distribution unit ensures that sensor excitation voltage remains within specification even during plant-wide power disturbances. Voltage sags at the sensor excitation level directly affect the output linearity of the 330100-50-05, making power layer stability a prerequisite for accurate vibration measurement.

At the HMI and execution layers, the alarm outputs from the 3500 monitor — driven by the 330100-50-05 signal — can trigger automated shutdown sequences via a Safety Instrumented System (SIS) such as a Triconex Tricon or a Hima HIMax, or initiate speed reduction commands to a variable frequency drive (VFD) controlling the machine’s driver motor. This closed-loop response — from sensor signal to protective action — is the essence of system integration: every component in the chain is aware of its role and communicates its state to adjacent layers without ambiguity.

Industrial Application Notes

Power Generation: In steam turbine and gas turbine applications, the 330100-50-05 is typically installed at each bearing journal to monitor radial shaft vibration. Turbine OEMs and power plant operators rely on the 3300 XL system’s proven accuracy to detect rotor imbalance, misalignment, and oil whirl conditions before they escalate to catastrophic failure. The sensor’s wide frequency response (DC to 10 kHz) ensures that both low-speed runout and high-frequency subsynchronous instabilities are captured with equal fidelity.

Petrochemical and Refinery Processing: Centrifugal compressors and process pumps in refinery service operate continuously under high differential pressure and variable load conditions. The 330100-50-05, installed in ATEX-rated configurations, provides continuous shaft position and vibration data to the plant’s DCS, enabling predictive maintenance scheduling and reducing unplanned downtime. Integration with a Honeywell Experion PKS or ABB System 800xA DCS is achieved via the 3500/92 gateway, ensuring that vibration alarms appear alongside process variables on the same operator console.

Mining and Mineral Processing: Large ball mills, SAG mills, and conveyor drive systems in mining operations subject rotating components to extreme mechanical loads and environmental contamination. The 330100-50-05’s robust construction and wide operating temperature range make it suitable for these demanding environments. Paired with a 3500 rack mounted in a climate-controlled MCC room, the sensor provides continuous health monitoring of mill pinion bearings and drive shaft assemblies, feeding data to a plant historian for long-term trend analysis.

Water and Wastewater Treatment: High-speed centrifugal pumps and blower units in water treatment facilities benefit from continuous vibration monitoring to prevent bearing failures that could interrupt critical infrastructure services. The 330100-50-05, integrated into a compact 3300 XL monitoring system, provides the necessary sensitivity to detect early-stage bearing defects at the low vibration amplitudes typical of well-maintained pump installations.

Packaging and Discrete Manufacturing: In high-speed packaging lines and precision machining centers, the 330100-50-05 can be applied for non-contact position measurement of rotating spindles and feed axes, providing real-time feedback to the machine controller for dynamic balancing and runout compensation.

Product Compatibility FAQ

Q1: Is the 330100-50-05 directly compatible with the Bently Nevada 3500 Series monitoring rack, or is it limited to the 3300 XL platform?
The 330100-50-05 is natively calibrated for the 3300 XL Proximitor system. However, it can also be used with the 3500 Series rack when paired with a 3500/42M Proximitor I/O Module, provided the probe-to-proximitor gap and cable length are within the specified calibration range. Always verify the system sensitivity setting (-7.87 V/mm) matches the monitor channel configuration before commissioning.

Q2: What extension cable and housing are required for a complete sensing chain, and how does cable length affect system accuracy?
A complete sensing chain requires the 330100-50-05 probe, a 330130 or 330180 series extension cable (available in standard lengths from 0.5 m to 9 m), and a compatible Proximitor housing. Total cable length — probe integral cable plus extension — must fall within the calibrated range specified in the 3300 XL system documentation. Exceeding the maximum cable length introduces capacitance that shifts the output sensitivity and zero-gap voltage, requiring field recalibration. ZYPLC supplies matched probe-and-cable sets with calibration certificates to eliminate this risk.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance and spare parts supply?
The warranty terms confirmed during quotation covers all manufacturing defects, including coil winding integrity, connector reliability, and factory calibration accuracy. It does not cover damage resulting from installation errors, mechanical impact, or operation outside the specified environmental limits. For long-term maintenance, ZYPLC maintains a dedicated inventory of 330100-50-05 units and compatible extension cables, enabling rapid replacement to minimize machine downtime. Our technical team provides pre-sales architecture consultation and post-sales commissioning support to ensure correct system integration. Contact us at +86 19859288691 or plc.sales@zyplc.com for availability and lead time confirmation.
