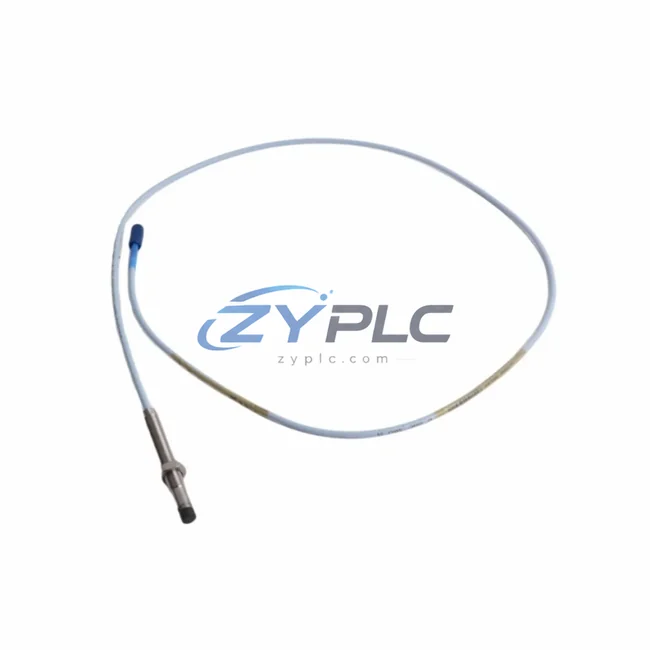

Bently Nevada 330101-00-13-15-12-CN 3300 XL Proximity Transducer

Bently Nevada 330101-00-13-15-12-CN 3300 XL Proximity Transducer for Optimized Automation

In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, the Bently Nevada 330101-00-13-15-12-CN proximity transducer stands as a precision sensing component that directly contributes to both. As part of the renowned Bently Nevada 3300 XL Series, this 8mm eddy-current proximity transducer delivers continuous, non-contact shaft vibration and position measurement — enabling plant engineers to detect mechanical anomalies before they escalate into costly failures or unplanned shutdowns that waste energy and production capacity.

The 330101-00-13-15-12-CN is engineered for demanding rotating machinery environments including steam turbines, gas compressors, centrifugal pumps, and large induction motors. By providing real-time radial vibration data to the control system, it allows operators to maintain machines at their optimal operating point — reducing mechanical losses, minimizing bearing wear, and ensuring that variable-speed drives and motor control systems are not compensating for undetected imbalance or misalignment through excess power draw.

Product Specification Table

System Compatibility and Application

The 330101-00-13-15-12-CN does not operate in isolation — it is a critical sensing node within a broader industrial automation system. In a typical high-efficiency plant configuration, this transducer feeds vibration signals into a Bently Nevada 3300/16 Dual Voting Trip Module or a 3300/20 Proximitor I/O Module, which processes the raw proximity data and forwards it to the plant’s distributed control system (DCS) or safety instrumented system (SIS).

When integrated with a Bently Nevada System 1 Condition Monitoring Platform, the vibration data from the 330101-00-13-15-12-CN becomes part of a continuous asset health dashboard. Engineers can correlate shaft displacement trends with energy consumption data captured by power monitoring modules or Siemens SENTRON PAC power meters installed on the motor control center (MCC). This correlation reveals whether a machine is drawing excess current due to mechanical degradation — a direct link between vibration health and energy efficiency.

On the drive side, the proximity transducer’s output can inform the setpoint adjustments of ABB ACS880 variable frequency drives or Siemens SINAMICS G120 drives controlling the motor speed. When vibration amplitude increases beyond a defined threshold, the control logic can automatically reduce motor speed or trigger a maintenance alert — preventing the drive from pushing a mechanically compromised machine harder than necessary, which would otherwise spike energy consumption and accelerate wear.

For I/O integration, the transducer signal is typically routed through Bently Nevada 3500/42M Proximitor/Seismic Monitor cards housed in a 3500 Rack, which communicate via Modbus TCP or OPC-UA to the plant historian or SCADA system. This architecture ensures that every vibration event is timestamped, logged, and available for energy trend analysis — supporting ISO 13373 condition monitoring standards and enabling data-driven maintenance scheduling.

In facilities running Allen-Bradley ControlLogix PLCs or Siemens S7-1500 PLCs as the primary automation controller, the 3300 XL system integrates seamlessly via hardwired relay outputs or fieldbus communication, allowing the PLC to act on vibration alarms and adjust process parameters — such as reducing pump flow rate or compressor load — to protect both the machine and the energy budget.

Maintenance and Replacement Notes

Consider a petrochemical plant running a bank of centrifugal compressors 24 hours a day. Each compressor is driven by a 500 kW induction motor controlled by a variable frequency drive. Without continuous vibration monitoring, operators tend to run machines conservatively — at lower speeds with wider safety margins — to avoid unexpected failures. This conservative approach wastes energy and reduces throughput.

With the Bently Nevada 330101-00-13-15-12-CN installed on each compressor shaft, the plant gains real-time visibility into bearing clearance, rotor balance, and shaft centerline position. When the data confirms that a machine is running within tight mechanical tolerances, operators can confidently push it closer to its design operating point — extracting more throughput per kilowatt-hour consumed. Conversely, when the transducer detects early-stage imbalance or misalignment, the maintenance team can schedule a targeted intervention during a planned production window rather than reacting to an emergency shutdown.

Emergency shutdowns are among the most energy-intensive events in industrial operations. The sudden stop and restart cycle of large rotating equipment — including the inrush current drawn by motors during restart — can represent a significant energy spike. By enabling predictive maintenance through continuous proximity measurement, the 330101-00-13-15-12-CN directly reduces the frequency of these high-energy restart events.

On production lines where cycle time and line takt are critical, vibration-induced slowdowns are a hidden source of inefficiency. A compressor or pump running with elevated vibration may trigger automatic speed reductions in the drive system, extending process cycle times and reducing overall equipment effectiveness (OEE). The 330101-00-13-15-12-CN provides the data needed to distinguish between a machine that needs maintenance and one that is performing optimally — ensuring that production pace decisions are based on real mechanical health rather than conservative assumptions.

All units are tested prior to shipment and backed by a warranty terms confirmed during quotation, ensuring that your investment in precision vibration monitoring delivers reliable, uninterrupted performance from day one. Stock is maintained for fast dispatch, minimizing lead times and keeping your maintenance schedules on track.

Product Sourcing FAQ

Q1: How does the 330101-00-13-15-12-CN contribute to operational stability in rotating machinery applications?
By providing continuous, high-accuracy shaft vibration and position data, this transducer enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear. Identifying these issues early allows maintenance teams to correct them before they cause the machine to draw excess current or require emergency shutdown and restart — both of which are significant sources of unplanned downtime in industrial facilities.

Q2: Is the 330101-00-13-15-12-CN compatible with existing Bently Nevada 3300 XL monitor systems and third-party DCS platforms?
Yes. The 330101-00-13-15-12-CN is fully compatible with the Bently Nevada 3300 XL monitor system family, including the 3300/16 and 3300/20 modules. Its standard output signal (voltage proportional to gap) is also compatible with third-party condition monitoring systems and DCS platforms from Emerson, Honeywell, ABB, and Siemens when interfaced through appropriate signal conditioning modules.

Q3: What is the recommended replacement or upgrade path if my current proximity transducer is showing degraded sensitivity?
If your existing 3300 XL transducer shows reduced sensitivity, increased noise floor, or non-linearity in the output signal, the 330101-00-13-15-12-CN is a direct drop-in replacement. No recalibration of the monitor system is required provided the extension cable and proximitor remain within the qualified system configuration. We recommend replacing the full transducer system (probe, extension cable, and proximitor) as a matched set to ensure optimal performance.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330101-00-13-15-12-CN unit undergoes functional testing prior to shipment, including gap voltage linearity verification and frequency response checks. The warranty terms confirmed during quotation covers manufacturing defects and performance deviations from published specifications under normal operating conditions. Our technical team provides pre-sales application support and post-sales troubleshooting assistance to ensure correct installation and system integration.
