Bently Nevada 330101-00-15-20-12-05 3300 XL Proximity Transducer

Bently Nevada 330101-00-15-20-12-05 3300 XL Proximity Transducer: Precision Vibration Sensing for Industrial Data Links and Smart Factory Integration

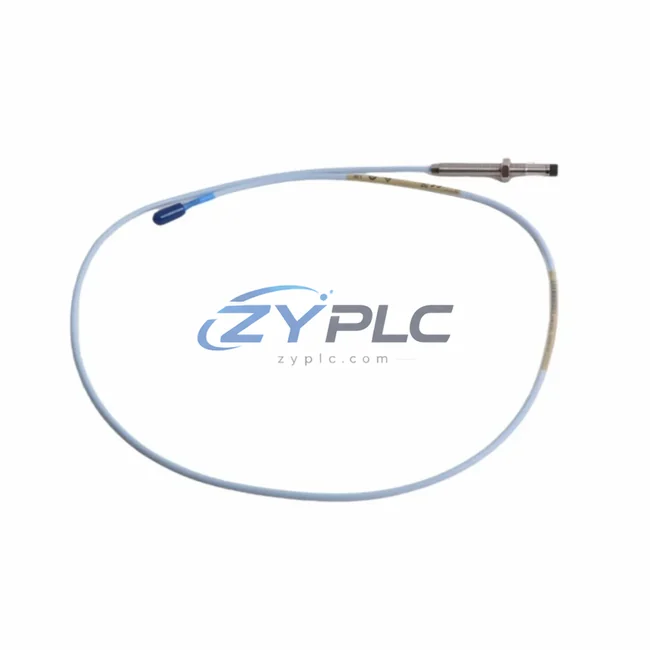

The Bently Nevada 330101-00-15-20-12-05 is an 8mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered for continuous, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery. In modern industrial environments where real-time data integrity and system connectivity are paramount, this transducer serves as a critical front-end sensing node — converting mechanical motion into precise electrical signals that feed directly into plant-wide condition monitoring, SCADA, and predictive maintenance architectures.

At ZYPLC, every 330101-00-15-20-12-05 unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation. Global inventory is maintained to support urgent replacement and MRO procurement needs across oil & gas, power generation, petrochemical, and heavy manufacturing sectors.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330101-00-15-20-12-05 proximity transducer operates as the primary sensing element in a layered industrial data architecture. Installed adjacent to the shaft of a rotating machine, it continuously transmits gap voltage signals to the Bently Nevada 3300 XL Proximitor® Sensor — the signal conditioning module that converts raw eddy-current output into a calibrated analog voltage proportional to shaft displacement.

This conditioned signal is then routed into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module, where it is processed against configurable alert and danger setpoints. The 3500 Series rack communicates over Modbus TCP or OPC-UA to plant-level SCADA systems — such as GE iFIX, Wonderware System Platform, or Emerson DeltaV — enabling operators to visualize shaft orbit plots, trend vibration amplitude, and receive alarm notifications in real time.

For facilities integrating vibration data into a broader IIoT framework, the analog output of the Proximitor® can be wired into a Rockwell Automation 1756-IF16 ControlLogix analog input module, allowing the PLC to execute logic-based protective actions — such as initiating a controlled shutdown sequence via a Siemens SINAMICS G120 variable frequency drive — when vibration thresholds are exceeded. This closed-loop response dramatically reduces the risk of catastrophic bearing failure and unplanned downtime.

In distributed plant topologies, the Moxa NPort 5150A serial-to-Ethernet device server can bridge legacy Bently Nevada serial communication outputs to modern Ethernet-based SCADA backbones, while Advantech ADAM-6717 intelligent I/O gateways aggregate multi-point sensor data and publish it via MQTT to edge computing nodes or cloud-based asset performance management platforms. Remote I/O expansion — using modules such as the Phoenix Contact Axioline F AXL E ETH — allows additional transducer channels to be added without rewiring the central monitoring cabinet.

HMI visualization is typically handled by panels such as the Siemens SIMATIC HMI TP1200 Comfort, where vibration trends, alarm histories, and machine health dashboards are presented to operators on the plant floor. For facilities running OSIsoft PI System (now AVEVA PI), the 3500 rack’s OPC-UA server feeds time-series vibration data directly into the PI Data Archive, enabling long-term trend analysis, KPI dashboards, and integration with enterprise asset management systems.

Power supply stability for the monitoring rack and associated signal conditioning equipment is ensured by units such as the Phoenix Contact QUINT-PS/1AC/24DC/20 DIN-rail power supply, which provides regulated 24 VDC with active power boost and diagnostic signaling — critical for maintaining uninterrupted sensor operation in high-availability plant environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is the fragmentation of machine health data across incompatible systems. Older vibration monitoring installations often rely on standalone panel meters or proprietary software that cannot export data to modern SCADA or ERP platforms — creating data silos that prevent plant-wide visibility and informed maintenance decision-making.

The Bently Nevada 330101-00-15-20-12-05, when deployed within a properly architected 3300 XL or 3500 Series monitoring system, directly addresses this isolation problem. Its analog output is universally compatible with standard 4–20 mA input cards, Modbus RTU/TCP gateways, and OPC-UA servers — making it straightforward to integrate into both greenfield smart factory deployments and brownfield retrofit projects.

Protocol unification is achieved by pairing the Proximitor® output with industrial protocol converters or edge gateways that translate analog signals into digital data streams consumable by SCADA, MES, and cloud platforms. This eliminates the need for manual data collection rounds, reduces human error in condition assessment, and enables alarm-driven maintenance workflows that respond to actual machine behavior rather than fixed time intervals.

Remote diagnostics capability is another key benefit. With the vibration data accessible over Ethernet-based protocols, maintenance engineers can monitor machine health from a central control room or even remotely via VPN-secured connections — reducing the need for physical inspections in hazardous or hard-to-access areas. Trend analysis over weeks and months allows maintenance teams to detect developing faults — such as rotor imbalance, misalignment, or bearing wear — well before they escalate to failure, supporting a shift from reactive to predictive maintenance strategies.

Production line transparency is further enhanced when vibration data is correlated with process variables — flow rates, temperatures, pressures — from other field instruments. This multi-variable view, aggregated in a SCADA or historian platform, gives operations teams the context needed to distinguish between normal process variation and genuine mechanical degradation, improving both uptime and product quality consistency.

Industrial Connectivity FAQ

Q1: What communication protocols does the 330101-00-15-20-12-05 support for SCADA integration?
The transducer itself outputs an analog voltage signal. Integration with SCADA systems is achieved through the Bently Nevada 3500 Series monitoring rack, which supports Modbus TCP, OPC-UA, and 4–20 mA analog outputs — enabling seamless connection to virtually any modern SCADA, DCS, or historian platform.

Q2: Is the 330101-00-15-20-12-05 compatible with both 3300 XL and 3500 Series systems?
Yes. The 330101-00-15-20-12-05 is designed for use with the Bently Nevada 3300 XL Proximitor® Sensor and is fully compatible with 3500 Series rack-based monitoring systems. It can also be used with the System 1 Evolution software platform for advanced diagnostics and trending.

Q3: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every unit undergoes full functional testing — including output voltage verification, sensitivity calibration check, and cable continuity — prior to shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions, with replacement or repair support provided by ZYPLC.

Q4: Can the system be expanded to monitor additional measurement points without replacing existing infrastructure?
Yes. The 3500 Series rack architecture is modular — additional monitor cards can be inserted to expand channel count. For distributed installations, remote I/O gateways and serial-to-Ethernet converters allow new transducer channels to be added to the network without major rewiring, supporting scalable system expansion as monitoring requirements grow.
