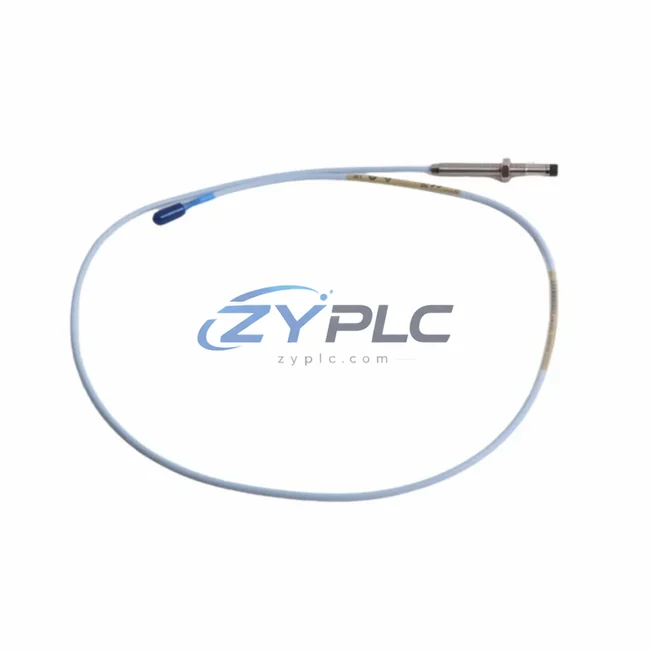

Bently Nevada 330101-00-17-20-12-05 Proximity Transducer

Bently Nevada 330101-00-17-20-12-05 Proximity Transducer: Replacement and Sourcing Information for 3300 XL Automation

In high-demand industrial environments, energy efficiency and equipment reliability are inseparable. The Bently Nevada 330101-00-17-20-12-05 is a precision eddy-current proximity transducer within the 3300 XL Series machinery protection system, engineered to deliver continuous, non-contact shaft displacement and vibration measurements across rotating equipment platforms. By feeding real-time positional data into the protection and control layer, this transducer enables drive systems, protection monitors, and supervisory controllers to respond dynamically to mechanical load changes — reducing unplanned downtime risk, preventing unplanned downtime, and optimizing production line throughput.

The 330101-00-17-20-12-05 operates as part of a three-component measurement chain: the transducer itself, a compatible Bently Nevada extension cable, and a 3300 XL Proximitor/Driver. Its non-contact sensing principle eliminates friction-based energy losses at the measurement point and ensures long-term signal integrity without mechanical wear — a critical advantage in high-speed turbine, compressor, pump, and motor applications where continuous operation and minimal maintenance intervention are essential to sustaining energy-efficient production cycles.

Product Specification Table

System Compatibility and Application

The 330101-00-17-20-12-05 delivers its full energy-optimization value when integrated into a layered automation architecture where sensing, protection, drive control, and data monitoring operate in concert. At the sensing layer, this transducer feeds shaft displacement and vibration data to a Bently Nevada 3300 XL Proximitor — such as the 3300/16-02-01-01-00-00 — which conditions the raw eddy-current signal into a calibrated DC voltage output readable by the protection monitor. This conditioned signal flows into a Bently Nevada 3500/42M or 3500/40M proximity monitor module, where alarm and danger thresholds are evaluated in real time against configurable setpoints.

At the control execution layer, the 3500 Series protection system communicates machine health status to a supervisory PLC — commonly an Allen-Bradley ControlLogix L7x or Siemens S7-400 — via hardwired relay outputs or digital fieldbus interfaces including Modbus TCP or OPC-UA. When vibration levels approach alarm thresholds, the PLC issues speed reduction commands to a connected variable frequency drive such as an ABB ACS880 or Rockwell PowerFlex 755, reducing motor speed and energy draw before a fault condition escalates. This closed-loop response between the transducer signal and the drive system is one of the most direct and measurable mechanisms for operational stability in rotating equipment applications.

At the data monitoring and feedback layer, vibration trend data from the 3300 XL system is aggregated by Bently Nevada System 1 software or transmitted to a plant historian or maintenance planning system (EMS). This enables operations teams to correlate vibration signatures with power consumption trends — identifying inefficient operating conditions such as resonance, misalignment, or bearing degradation that cause motors to draw abnormal load. Corrective action guided by this data can reduce operating load by several percentage points across a fleet of rotating machines. Supporting components including Bently Nevada 3300 XL extension cables, 3500 rack power supplies, and 3500/20 rack interface modules complete the measurement chain, ensuring signal integrity from transducer tip to control room display.

Maintenance and Replacement Notes

In petrochemical refining and gas processing facilities, the 330101-00-17-20-12-05 is installed on centrifugal compressor shafts where continuous vibration monitoring maintains optimal rotor balance and bearing clearance. A misaligned or unbalanced rotor can increase motor current draw by 5–15%, representing substantial unplanned downtime over a continuous operation cycle. By detecting these conditions early, the 3300 XL system enables maintenance teams to schedule corrective action during planned shutdowns rather than reacting to emergency trips — each of which wastes both the energy stored in the process system and the power required to restart and restabilize the unit.

In power generation — including gas turbines, steam turbines, and hydro generators — the transducer supports protection systems that prevent catastrophic failures. A single unplanned turbine trip not only wastes stored thermal or mechanical energy but also requires significant power input to restart and re-synchronize to the grid. Continuous, reliable vibration monitoring with the 330101-00-17-20-12-05 directly reduces the frequency of such events, improving overall plant heat rate and capacity factor. In water treatment and pumping stations, proximity transducers on vertical turbine pumps and horizontal split-case pumps provide early warning of cavitation, bearing wear, and impeller imbalance — conditions that cause pumps to consume more power to deliver the same flow rate. Integration of 3300 XL monitoring data with a SCADA system or plant DCS allows pump speed to be adjusted via VFD control, maintaining operation at the best efficiency point (BEP) and minimizing specific operating load per unit of water processed.

Across all these applications, the 330101-00-17-20-12-05 supports a predictive maintenance strategy that replaces reactive, energy-intensive repair cycles with planned, data-driven interventions. Reduced emergency maintenance, fewer unplanned shutdowns, and optimized equipment operating points collectively deliver measurable reductions in both operating load and total cost of ownership. All units supplied by ZYPLC undergo pre-shipment functional testing and are covered by a warranty terms confirmed during quotation, ensuring reliable performance from installation through the first major maintenance interval. ZYPLC maintains inventory stock of the 330101-00-17-20-12-05 and compatible 3300 XL system components to support rapid deployment and minimize procurement lead times.

Product Sourcing FAQ

Q1: How does the 330101-00-17-20-12-05 directly contribute to operational stability in rotating equipment?
By providing continuous, accurate shaft vibration and displacement data, this transducer enables the control system to detect developing mechanical faults — imbalance, misalignment, bearing wear — before they cause significant efficiency losses. Early detection allows corrective action while the machine still operates near its design efficiency point, avoiding the increased power consumption associated with degraded mechanical condition. Integration with VFD-controlled drives allows motor speed to be reduced automatically when vibration thresholds are approached, further cutting energy draw during fault development.

Q2: Is the 330101-00-17-20-12-05 compatible with existing 3300 XL and 3500 Series monitoring infrastructure?
Yes. This is a standard Bently Nevada 3300 XL proximity transducer designed to operate with the full range of 3300 XL proximitors and 3500 Series monitor modules, including the 3500/40M, 3500/42M, and 3500/45 proximity monitor cards, as well as legacy 3300 XL monitors. The transducer must be paired with a compatible Bently Nevada extension cable and proximitor to complete the measurement chain. ZYPLC can advise on compatible system components to ensure a complete, validated installation.

Q3: What is the recommended replacement and pre-shipment testing procedure?
Replacement should be performed during a planned maintenance window with the machine at rest. The transducer should be installed at the correct gap distance per Bently Nevada specifications — typically 1.0–2.0 mm for standard steel targets — verified using a calibrated gap voltage measurement at the proximitor output. ZYPLC performs a pre-shipment functional test on each unit to confirm output linearity and sensitivity within factory specifications. Post-installation, a slow-roll vibration check should establish a baseline before returning the machine to full-speed operation.

Q4: What does the warranty terms confirmed during quotation cover, and what support is available?
All Bently Nevada 330101-00-17-20-12-05 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. ZYPLC provides technical support for installation, commissioning, and system compatibility throughout the warranty period. For applications requiring extended coverage or spare parts inventory management, ZYPLC offers stocking agreements to ensure rapid replacement availability and minimize production downtime risk.
