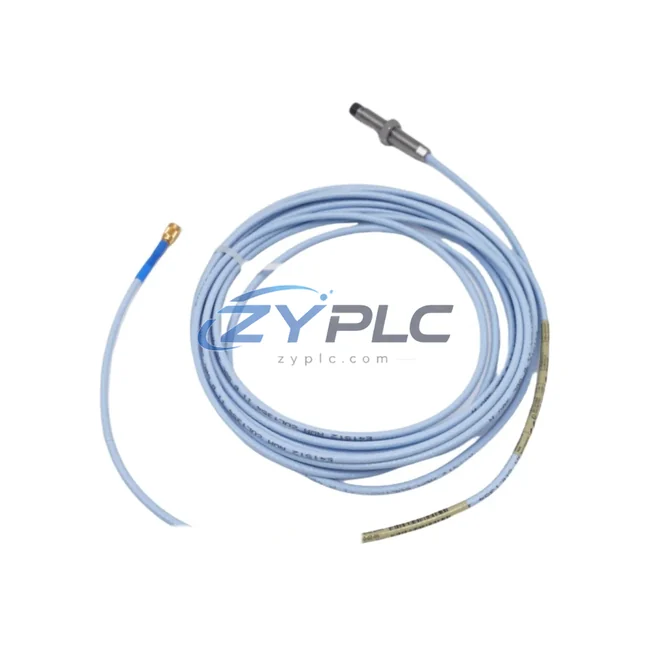

Bently Nevada 330101-00-20-05-02-05 Industrial Proximity Sensor for 3300 Systems

Bently Nevada 330101-00-20-05-02-05: Industrial Data Link and Smart Factory Connectivity for 3300 Series Systems

The Bently Nevada 330101-00-20-05-02-05 is a high-precision eddy-current proximity probe engineered for continuous, non-contact vibration and position measurement in rotating machinery environments. As a core sensing node within the Bently Nevada 3300 Series architecture, this probe forms the foundation of an industrial data chain that spans from raw signal acquisition at the machine shaft to real-time analytics at the SCADA and DCS level. In smart factory deployments, the 330101-00-20-05-02-05 does not operate in isolation — it is the first link in a structured network of condition monitoring, protocol conversion, and remote diagnostics that defines modern industrial connectivity.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated condition monitoring architecture, the 330101-00-20-05-02-05 proximity probe connects to the 330130-045-00-00 extension cable, which routes the eddy-current signal to a 330180-X1-05 proximity driver (proximitor). The driver converts the raw displacement signal into a calibrated voltage output that feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed within the 3500 Series rack. The 3500 rack, powered by the 3500/15 Power Supply module, aggregates data from multiple sensing channels — including the 3300/16 Vibration Monitor and the 3500/22M Transient Data Interface (TDI) — and transmits structured condition data upstream via Modbus TCP or OPC-UA to the plant SCADA system.

At the HMI layer, operators interfacing with Wonderware InTouch or GE iFIX receive live vibration trend data, alarm states, and shaft position readings sourced directly from the 330101-00-20-05-02-05 measurement chain. The 3500/22M TDI module captures high-resolution transient waveforms during machine startup and shutdown events, enabling engineers to perform spectral analysis without interrupting production. For facilities running Emerson AMS Machinery Manager or similar asset management platforms, the 3300 XL Series probes and their associated monitor racks expose condition data through OPC-UA endpoints, allowing seamless integration with enterprise-level predictive maintenance workflows.

In gas turbine and compressor train applications, the 330101-00-20-05-02-05 is often deployed alongside the 1900/65A General Purpose Equipment Monitor, which provides an additional layer of vibration and temperature monitoring for auxiliary machinery. Edge gateways — such as those running Kepware KEPServerEX — bridge the 3500 rack’s Modbus output to cloud-based IIoT platforms, enabling remote diagnostics and long-term trend analysis from any location. This end-to-end data flow, from the probe tip at the bearing journal to the cloud analytics dashboard, exemplifies the connectivity value that the 330101-00-20-05-02-05 delivers within a smart factory environment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring equipment often operates on proprietary analog protocols that cannot communicate directly with modern DCS or SCADA platforms, creating data silos that obscure the true health status of critical rotating assets. The Bently Nevada 330101-00-20-05-02-05, when integrated within the 3500 Series monitor rack, resolves this isolation by providing a standardized, protocol-agnostic signal path that can be mapped to Modbus, OPC-UA, or PROFIBUS DP depending on the gateway module selected.

For facilities undergoing digital transformation, the ability to retrofit existing machinery with 3300 Series probes and connect them to modern SCADA and MES platforms without replacing the underlying mechanical infrastructure represents significant cost savings. The 330101-00-20-05-02-05 supports production line transparency by delivering continuous, real-time shaft displacement data that feeds alarm management systems, enabling operators to detect developing faults — such as rotor imbalance, misalignment, or bearing wear — before they escalate to unplanned downtime. Remote monitoring capabilities, enabled through OPC-UA and edge computing nodes, allow maintenance engineers to diagnose machine anomalies from the control room or remotely, reducing the need for physical inspections in hazardous areas. System scalability is inherent in the 3500 rack architecture: additional monitor modules can be added to the same rack backplane to expand coverage to new measurement points without rewiring the field instrumentation layer.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330101-00-20-05-02-05 support for SCADA integration?
The 330101-00-20-05-02-05 proximity probe outputs an analog voltage signal that is processed by the 3500 Series monitor rack. The rack supports Modbus RTU/TCP, OPC-UA, and PROFIBUS DP communication via dedicated gateway modules, enabling direct integration with major SCADA and DCS platforms including Emerson DeltaV, Honeywell Experion, and Siemens PCS 7. Communication latency is typically sub-100ms for alarm-critical data paths.

Q2: Is the 330101-00-20-05-02-05 compatible with existing 3300 Series and 3500 Series infrastructure?
Yes. The 330101-00-20-05-02-05 is fully compatible with the Bently Nevada 3300 Series probe system, including 330130 extension cables and 330180 proximitor drivers. It integrates seamlessly with 3500/42M monitor modules and the broader 3500 rack architecture, making it suitable for both new installations and retrofit projects on existing machinery.

Q3: How does the system ensure network stability and data integrity in high-vibration industrial environments?
The eddy-current sensing technology used in the 330101-00-20-05-02-05 is inherently immune to electromagnetic interference and does not require physical contact with the target surface, ensuring stable signal output even in high-vibration, high-temperature environments. The coaxial cable system and shielded extension cables minimize signal noise, while the 3500 Series monitor rack provides hardware-level signal conditioning and fault detection to maintain data integrity across the network.

Q4: What warranty and pre-shipment testing does the 330101-00-20-05-02-05 include?
Every 330101-00-20-05-02-05 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes pre-shipment functional testing to verify signal output, sensitivity, and cable integrity. Units are inspected against Bently Nevada factory specifications before dispatch, and documentation including test records is available upon request. Global shipping is supported with lead times confirmed at the time of order.
