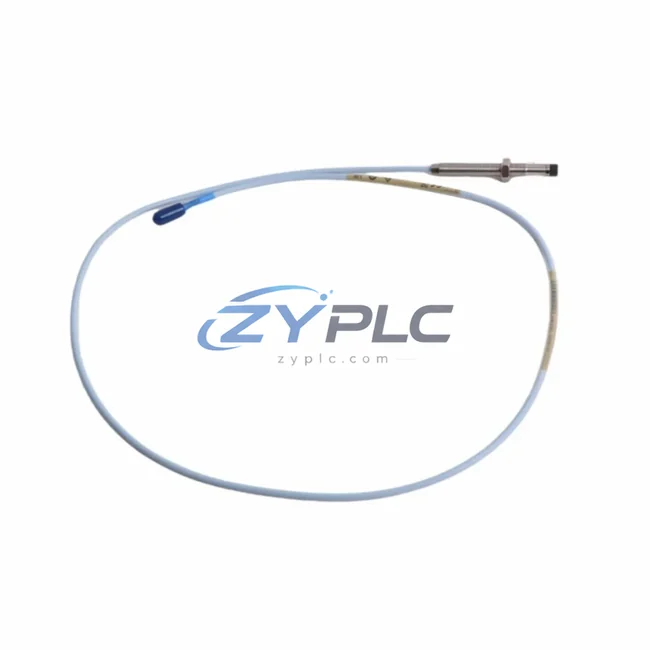

Bently Nevada 330101-00-20-20-02-00 Proximity Transducer

Bently Nevada 330101-00-20-20-02-00 Proximity Transducer: Precision Energy-Efficient Machine Health Control

The Bently Nevada 330101-00-20-20-02-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL continuous machinery monitoring system. In industrial environments where unplanned downtime translates directly into wasted energy and lost production throughput, this transducer serves as the critical sensing front-end that enables real-time shaft vibration and position measurement. By delivering accurate, low-noise displacement signals to the monitoring rack, it empowers plant engineers to make data-driven decisions that reduce unnecessary motor run time, optimize drive loading, and extend mean time between failures across rotating equipment assets.

Designed for demanding applications including steam turbines, gas compressors, centrifugal pumps, and large induction motors, the 330101-00-20-20-02-00 operates with a 5-metre integral cable and is calibrated for use with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor® Sensor. Together, these three components form a complete eddy-current measurement chain that feeds shaft dynamic data into the 3500 Series Machinery Protection System or the System 1 condition monitoring software platform, where operating load trends, vibration spectra, and bearing health indices are continuously tracked.

Product Specification Table

System Compatibility and Application

Maximizing energy efficiency in a modern production facility requires more than simply upgrading individual components — it demands a tightly integrated measurement and control architecture. The Bently Nevada 330101-00-20-20-02-00 proximity transducer sits at the sensing layer of this architecture, converting mechanical shaft motion into precise electrical signals that flow upstream into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor module. This monitor card processes raw gap and vibration data and issues alert or danger setpoints that can be wired directly into a GE Fanuc Series 90-30 PLC or a Siemens S7-300 programmable logic controller to trigger load-shedding routines or controlled shutdowns before catastrophic bearing failure occurs — preventing the enormous energy spike associated with emergency restarts and mechanical damage repair.

On the drive side, vibration data from the 330101-00-20-20-02-00 can be used to fine-tune the speed reference of an ABB ACS880 variable frequency drive or a Siemens SINAMICS G120 drive connected to the monitored motor. When the transducer detects sub-synchronous vibration indicative of oil whirl or bearing instability, the control system can automatically reduce motor speed via the VFD, lowering both mechanical stress and active power draw simultaneously. This closed-loop interaction between the proximity measurement chain and the drive system is one of the most effective strategies for reducing specific operating load per unit of production output.

For facilities running distributed I/O architectures, the monitor rack output can be integrated through a Bently Nevada 3500/92 Communication Gateway using Modbus TCP or PROFIBUS DP, feeding real-time vibration and gap data into a Rockwell Automation ControlLogix L7x PLC or a Schneider Electric Modicon M340 controller. The controller can then correlate machinery health data with production scheduling data displayed on a Siemens SIMATIC HMI TP1200 Comfort Panel, giving operators a unified view of both process efficiency and equipment condition — enabling smarter decisions about when to run equipment at full load versus reduced load to minimize unplanned downtime during low-demand periods.

Power quality monitoring is another dimension where the 330101-00-20-20-02-00 contributes indirectly. By enabling early detection of rotor imbalance or misalignment through shaft orbit analysis, the transducer helps prevent the increased reactive power draw that accompanies mechanical degradation in large motors. Integrating the 3500 system output with a Schneider Electric PowerLogic ION7650 power meter allows energy managers to correlate vibration events with power factor dips, building a comprehensive picture of how mechanical health affects electrical energy efficiency across the plant.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a petrochemical facility running multiple centrifugal compressor trains — the Bently Nevada 330101-00-20-20-02-00 proximity transducer is installed on the compressor shaft to monitor radial vibration and shaft centerline position. When the transducer detects a gradual increase in 1X vibration amplitude over a period of weeks, the System 1 software trends this data and generates a predictive maintenance work order before the alert setpoint is reached. Maintenance teams can then schedule a bearing inspection and rebalancing during a planned production window rather than responding to an emergency trip.

The energy impact of this predictive approach is substantial. An unplanned compressor trip in a continuous process plant typically requires 4–8 hours of restart time, during which upstream and downstream equipment continues to consume standby power while producing nothing. By contrast, a planned 2-hour maintenance window during a scheduled low-demand period eliminates this wasted standby energy entirely. Over a 12-month period, a single avoided emergency trip can save tens of thousands of operating-hours of standby and restart energy, supporting earlier maintenance decisions and reducing unplanned downtime risk.

On motor-driven pump systems, the proximity transducer’s shaft position data enables detection of impeller wear and cavitation-induced vibration long before efficiency degradation becomes visible in flow or pressure readings. By catching these conditions early, plant engineers can maintain pump hydraulic efficiency within 2–3% of the design point, avoiding the 10–15% increase in motor power consumption that accompanies severe impeller wear. Combined with variable frequency drive speed optimization based on actual process demand, this approach delivers measurable reductions in motor load across the entire pumping system.

Every unit of the 330101-00-20-20-02-00 supplied by ZYPLC undergoes full functional testing prior to shipment, including gap sensitivity verification, cable continuity check, and output linearity validation across the full measurement range. This ensures that the transducer performs to Bently Nevada factory specifications from the moment it is installed, eliminating the risk of measurement errors that could lead to false alarms, unnecessary shutdowns, or — worse — missed fault conditions that result in catastrophic equipment failure and the associated energy and production losses.

Product Sourcing FAQ

Q1: How does the 330101-00-20-20-02-00 contribute to reducing operating load in rotating machinery applications?
By providing continuous, high-accuracy shaft vibration and position data to the 3300 XL or 3500 Series monitoring system, this transducer enables predictive maintenance strategies that keep rotating equipment operating at peak mechanical efficiency. Well-balanced, properly aligned machinery draws significantly less motor current than degraded equipment, directly reducing operating load per unit of output. Early fault detection also prevents the energy-intensive emergency restart cycles associated with unplanned trips.

Q2: Is the 330101-00-20-20-02-00 compatible with modern PLC and DCS control platforms?
Yes. The transducer outputs a standard DC voltage signal through the 3300 XL Proximitor® Sensor, which can be interfaced to virtually any PLC or DCS platform via the 3500/92 Communication Gateway using Modbus TCP, PROFIBUS DP, or OPC-UA. This makes it straightforward to integrate machinery health data into existing Siemens, Rockwell, Schneider, or GE control architectures without additional signal conditioning hardware.

Q3: What is the recommended replacement interval, and how should the transducer be tested before installation?
Bently Nevada recommends replacing proximity transducers when sensitivity drift exceeds ±5% of the nominal scale factor, typically assessed during scheduled turnaround maintenance every 2–4 years depending on operating environment severity. Before installation, each ZYPLC-supplied unit is tested for gap sensitivity, output linearity, and cable integrity. Customers are advised to perform a bench calibration check using a Bently Nevada TK-3 calibration kit against a known target material to confirm the transducer meets the 3300 XL system’s calibration requirements.

Q4: What warranty coverage is provided, and what does it include?
All Bently Nevada 330101-00-20-20-02-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, sensitivity out-of-specification conditions, and cable integrity failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded at ZYPLC’s discretion. For warranty claims or technical support, contact our team at plc.sales@zyplc.com or +86 19859288691.
