Bently Nevada 330101-00-40-20-12-05 3300 XL Proximity Transducer

Bently Nevada 330101-00-40-20-12-05 3300 XL Proximity Transducer: Precision Energy-Efficient Vibration Control for Industrial Automation

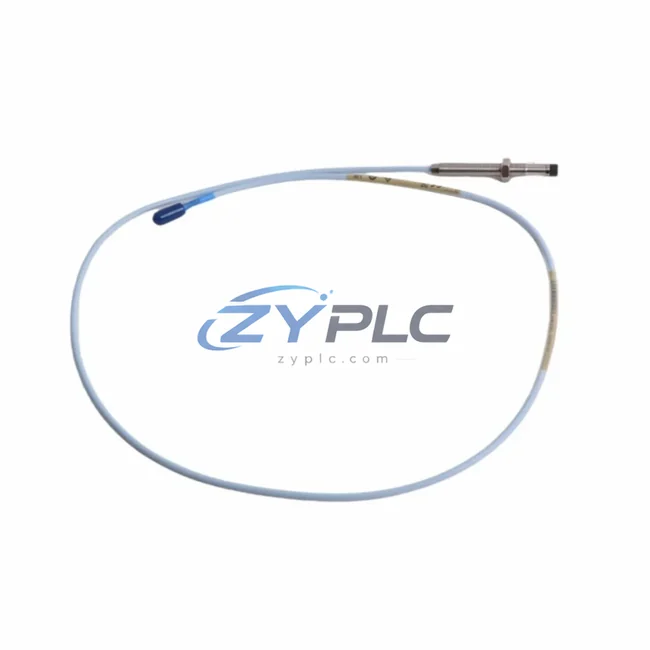

The Bently Nevada 330101-00-40-20-12-05 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Monitoring System. In high-demand industrial environments — rotating machinery, turbines, compressors, and pump trains — undetected shaft vibration and displacement anomalies translate directly into wasted energy, unplanned downtime, and accelerated mechanical wear. This transducer delivers the real-time positional feedback that allows control systems to intervene before inefficiency becomes failure.

Every unit shipped from ZYPLC inventory undergoes full functional testing and is backed by a warranty terms confirmed during quotation, ensuring you receive a verified, field-ready component with documented performance baselines.

Product Specification Table

System Compatibility and Application

The 330101-00-40-20-12-05 does not operate in isolation — it is a precision sensing node within a broader industrial automation system. In a typical rotating machinery protection system, this transducer feeds shaft displacement data to a Bently Nevada 3500/42M Proximitor I/O Module, which conditions the signal and passes it to the 3500 Rack Monitor for threshold evaluation. When vibration trends approach alarm limits, the rack communicates via Modbus TCP or FOUNDATION Fieldbus to the plant DCS or PLC — commonly a Rockwell Automation ControlLogix L7x or Siemens SIMATIC S7-400H — triggering load reduction or controlled shutdown sequences that prevent catastrophic energy spikes from bearing failure events.

On the drive side, variable-speed assets monitored by this transducer are frequently paired with ABB ACS880 industrial drives or Siemens SINAMICS S120 servo drive systems, where shaft feedback from the 3300 XL system informs speed reference corrections in real time. This closed-loop interaction between vibration sensing and drive control is one of the most effective mechanisms for reducing motor load — eliminating the excess torque and heat generation that occur when a drive operates against a mechanically stressed load.

Power quality at the measurement layer is maintained through dedicated Bently Nevada 3300 XL Power Conditioner modules, which isolate the transducer signal chain from bus noise introduced by nearby Schneider Electric Altivar Process ATV900 drives or high-current switching equipment. For facilities running PROFIBUS DP or EtherNet/IP backbones, the 3500 rack’s communication cards integrate seamlessly, allowing vibration data to flow into OSIsoft PI System historians or GE Digital APM platforms for long-term energy and reliability trending.

At the HMI layer, operators monitoring assets instrumented with the 330101-00-40-20-12-05 typically view real-time Bode plots, orbit diagrams, and trend charts on Bently Nevada System 1 Evolution software, enabling maintenance teams to correlate vibration signatures with operating load patterns — identifying, for example, whether a compressor’s rising 1X vibration amplitude corresponds to an increase in motor current draw that signals impeller fouling rather than a process load change.

Maintenance and Replacement Notes

In petrochemical and power generation facilities, the energy cost of undetected mechanical degradation is rarely visible on a single meter — it accumulates across dozens of assets running slightly out of tolerance. A compressor train with 15 µm of excess shaft runout may draw 3–5% more motor current than its design baseline, an inefficiency that compounds across thousands of operating hours. The Bently Nevada 330101-00-40-20-12-05, installed at the drive-end and non-drive-end bearing positions, provides the continuous displacement data needed to detect this condition before it escalates.

When integrated with a 3500 Series protection rack and connected to the plant historian, vibration trend data enables predictive maintenance scheduling that replaces calendar-based overhauls with condition-based interventions. This shift eliminates unnecessary maintenance energy expenditure — the energy consumed by premature disassembly, cleaning, re-alignment, and recommissioning — while also reducing the frequency of production interruptions that force downstream equipment into inefficient partial-load operation.

For production lines where throughput rate (line takt) is a key performance indicator, shaft vibration data from the 3300 XL system feeds into overall equipment effectiveness (OEE) calculations. A machine running with elevated vibration is typically derated by operators to protect mechanical integrity, reducing its contribution to line throughput. By maintaining vibration within specification through early detection and corrective action, facilities can sustain rated production speeds, maximizing the energy-per-unit-output ratio across the entire line.

ZYPLC maintains ready inventory of the 330101-00-40-20-12-05 and associated 3300 XL system components to support rapid deployment in both planned upgrade projects and emergency replacement scenarios. All units are dispatch-tested, with test records available upon request, and covered by a warranty terms confirmed during quotation from the date of shipment.

Product Sourcing FAQ

Q1: How does the 330101-00-40-20-12-05 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables the 3300 XL monitoring system to detect mechanical inefficiencies — such as misalignment, imbalance, and bearing wear — at their earliest stages. Early detection allows corrective action before these conditions force drives and motors to compensate with abnormal load draw, directly reducing unplanned downtime at the asset level.

Q2: Is the 330101-00-40-20-12-05 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330101-00-40-20-12-05 is designed for the Bently Nevada 3300 XL system and is also compatible with 3500 Series rack monitors when used with the appropriate Proximitor I/O module. Always verify the driver/extension cable combination matches your installed rack configuration before ordering.

Q3: What is the recommended replacement procedure, and how does ZYPLC support the process?
Replacement involves de-energizing the monitoring channel, removing the existing probe and extension cable assembly, installing the new 330101-00-40-20-12-05 with gap set to the midpoint of the linear range (approximately 1.27 mm / 50 mil), and verifying output voltage at the Proximitor before returning the channel to service. ZYPLC provides tested units with documented gap voltage verification, reducing commissioning time and the risk of incorrect installation.

Q4: What warranty coverage applies, and what does the pre-shipment testing include?
Every 330101-00-40-20-12-05 shipped by ZYPLC carries a warranty terms confirmed during quotation covering functional defects under normal operating conditions. Pre-shipment testing includes sensitivity verification (7.87 V/mm ± 10%), linear range confirmation, and cable continuity check. Test documentation is available upon request for quality assurance and incoming inspection purposes.
