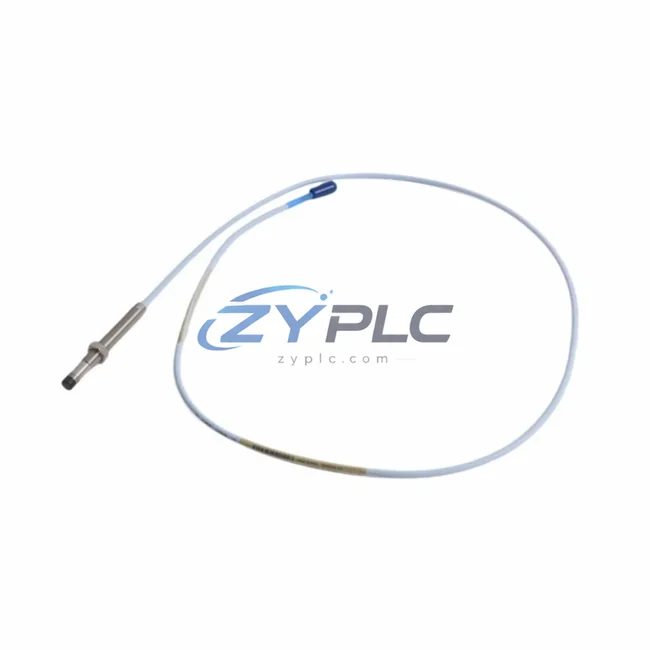

The Bently Nevada 330101-00-41-15-12-05 is an 8mm eddy-current proximity transducer engineered for the 3300 XL continuous machinery monitoring system. Designed for high-demand industrial environments, this transducer delivers real-time shaft displacement and vibration data that enables plant engineers to make proactive decisions — reducing unplanned downtime, optimizing motor drive efficiency, and cutting unplanned downtime risk across rotating equipment. With a warranty terms confirmed during quotation and verified pre-shipment testing, it is a reliable cornerstone of any maintenance-focused predictive maintenance strategy.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
330101-00-41-15-12-05 |
| Probe Diameter |
8 mm |
| Cable Length |
1.5 m (standard) |
| Extension Cable |
3.0 m (system-matched) |
| Compatible System |
Bently Nevada 3300 XL Monitoring System |
| Measurement Type |
Radial shaft vibration, axial position, differential expansion |
| Operating Temperature |
-35°C to +177°C |
| Power Consumption |
Low-draw eddy-current circuit; minimal auxiliary power demand |
| Output Signal |
-18 VDC nominal (linear range) |
| Maintenance Value |
Enables early fault detection → reduces motor overload, bearing failure, and reactive energy spikes |
| Application Environment |
Turbines, compressors, pumps, motors, gearboxes |
| Inventory Status |
RFQ Available — Ships within 1–3 business days |
| Warranty |
warranty terms confirmed during quotation |
System Compatibility and Application
In a modern industrial plant, energy efficiency is not achieved by a single device — it is the result of a tightly integrated measurement and control architecture. The 330101-00-41-15-12-05 proximity transducer serves as the primary sensing element within the Bently Nevada 3300 XL monitoring framework, feeding continuous vibration and position data into the plant’s condition monitoring loop.
At the field level, the transducer works in conjunction with the Bently Nevada 3300/16 Dual Voting Trip module and the 3300/20 Proximitor I/O Module to convert raw displacement signals into actionable process variables. These signals are then routed to the 3500/42M Proximitor/Seismic Monitor, which provides alarm and trip outputs that protect high-value rotating assets from catastrophic failure — a failure mode that typically results in significant reactive operating load during emergency restarts and equipment replacement cycles.
On the drive side, the vibration data captured by the 330101-00-41-15-12-05 can be used to fine-tune the setpoints of variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120, ensuring that motor speed is dynamically adjusted to match actual load demand rather than running at fixed speed. This integration between vibration monitoring and drive control is one of the most effective strategies for reducing motor load in pump and compressor applications.
For data aggregation and visualization, the transducer’s output integrates with GE System 1 asset performance management software, enabling plant operators to trend shaft centerline plots, orbit diagrams, and spectrum data over time. When combined with a Rockwell Automation ControlLogix PLC or a Siemens S7-1500 PLC via Modbus TCP or PROFIBUS communication, the monitoring data can trigger automated load-shedding routines that prevent energy-intensive fault recovery cycles.
Power quality monitoring devices such as the Schneider Electric PowerLogic ION9000 can be deployed alongside the 3300 XL system to correlate vibration anomalies with power factor degradation — providing a complete picture of how mechanical imbalance translates into electrical unplanned downtime. This multi-layer approach to condition monitoring ensures that every operating-hour is accounted for and that corrective action is taken before inefficiency becomes failure.
Maintenance and Replacement Notes
In continuous process industries — petrochemical, power generation, pulp and paper, and heavy manufacturing — rotating machinery accounts for the majority of total facility operating load. A single misaligned shaft or worn bearing can increase motor current draw by 10–25%, translating directly into higher electricity costs and accelerated equipment degradation.
The Bently Nevada 330101-00-41-15-12-05 addresses this challenge at the source. By providing micron-level shaft displacement measurements at sampling rates sufficient to detect sub-synchronous instability, the transducer enables maintenance teams to identify developing faults — such as oil whirl in journal bearings, rotor rub, or coupling misalignment — weeks or months before they manifest as unplanned shutdowns.
In practical terms, this means a plant running a 500 kW centrifugal compressor can detect a developing bearing fault early enough to schedule a planned outage during a low-demand production window, rather than suffering an emergency trip that forces the entire line to restart from cold — a process that can consume 3–5 times the normal startup energy and disrupt production schedules for hours or days.
Beyond fault detection, the continuous position data from the 330101-00-41-15-12-05 supports dynamic balancing programs that reduce vibration-induced energy losses in rotating assemblies. When shaft runout is minimized and rotor balance is maintained within specification, motor efficiency improves, bearing temperatures decrease, and lubricant consumption is reduced — all of which contribute to a lower total cost of operation and a measurable reduction in facility energy intensity.
Every unit shipped undergoes full functional testing and output verification prior to dispatch, ensuring that the transducer performs to specification from the moment it is installed. Combined with a warranty terms confirmed during quotation and reliable inventory availability, the 330101-00-41-15-12-05 represents a low-risk, high-return investment in plant maintenance planning.
Product Sourcing FAQ
Q1: How does the 330101-00-41-15-12-05 contribute to operational stability in rotating equipment applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables early detection of mechanical faults that cause motors to draw abnormal load. Identifying and correcting these faults before they escalate reduces reactive operating load, lowers motor operating temperatures, and extends the interval between energy-intensive maintenance shutdowns.
Q2: Is the 330101-00-41-15-12-05 compatible with existing 3300 XL system installations?
Yes. The 330101-00-41-15-12-05 is a direct-fit replacement for standard 8mm probes in the Bently Nevada 3300 XL monitoring system. It is compatible with the full range of 3300 XL Proximitor signal conditioners and I/O modules, and requires no recalibration of the monitoring system when used with the correct extension cable and driver combination.
Q3: What is the recommended replacement interval, and how does timely replacement reduce unplanned downtime?
Bently Nevada recommends replacing proximity transducers as part of a scheduled predictive maintenance program rather than waiting for failure. A degraded transducer that provides inaccurate displacement readings can mask developing faults, allowing machinery to operate in an inefficient state for extended periods. Proactive replacement ensures that the monitoring system continues to deliver accurate data for maintenance planning decisions.
Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
The warranty terms confirmed during quotation covers manufacturing defects and functional performance failures under normal operating conditions. Prior to shipment, each 330101-00-41-15-12-05 unit undergoes output linearity verification, sensitivity testing, and connector integrity inspection to confirm compliance with Bently Nevada specifications. This ensures that the transducer is fully operational upon arrival and ready for immediate installation.
