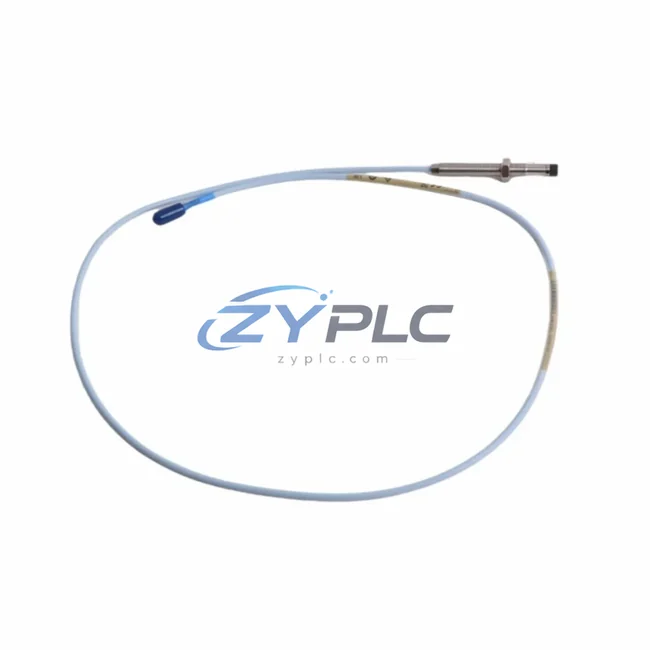

The Bently Nevada 330101-00-59-15-12-05 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed to deliver precise, real-time shaft vibration and position data, this transducer plays a central role in reducing unplanned downtime risk across rotating equipment — from turbines and compressors to pumps and motors. By providing accurate displacement measurements with minimal signal noise, the 330101-00-59-15-12-05 enables plant engineers to make data-driven decisions that directly improve equipment utilization rates, reduce unplanned downtime, and optimize the energy footprint of critical production assets.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to monitor shaft behavior in real time is not merely a reliability function — it is an maintenance planning strategy. When a rotating machine begins to exhibit abnormal vibration patterns, it typically draws more current, generates excess heat, and accelerates wear on bearings and seals. The 330101-00-59-15-12-05 detects these deviations early, allowing maintenance teams to intervene before unplanned downtime compounds into equipment failure.

Product Specification Table

System Compatibility and Application

The 330101-00-59-15-12-05 transducer does not operate in isolation — it is a precision sensing node within a broader industrial automation system. In a typical deployment, the transducer connects to a Bently Nevada 3300 XL proximitor/oscillator, which conditions the raw eddy-current signal into a calibrated voltage output. This signal is then fed into a Bently Nevada 3500/42M Proximitor I/O Module housed within the 3500 Series rack, where it is processed alongside data from other channel inputs including temperature, speed, and thrust position.

At the control layer, the 3500 rack communicates with plant DCS or SCADA systems via Modbus TCP or FOUNDATION Fieldbus protocols, enabling the vibration data to be integrated into maintenance planning dashboards. When paired with a Bently Nevada System 1 Condition Monitoring Software, operators gain trend analysis and predictive maintenance capabilities that allow them to schedule maintenance during planned shutdowns rather than reacting to emergency failures — a practice that significantly reduces unplanned downtime from uncontrolled startups and restarts.

On the drive side, the vibration data captured by the 330101-00-59-15-12-05 can be used to inform the setpoints of variable frequency drives (VFDs) such as the Allen-Bradley PowerFlex 755 or Siemens SINAMICS G120, which regulate motor speed in response to actual load conditions. When vibration levels indicate that a machine is running under light load, the VFD can reduce motor speed — directly cutting operating load without sacrificing process output. This closed-loop interaction between vibration sensing and drive control is one of the most effective maintenance planning strategies available in modern industrial automation.

For facilities using Rockwell Automation ControlLogix PLCs or Siemens S7-300/S7-400 controllers, the 3500 rack’s digital outputs can trigger alarm states or interlock sequences that prevent machines from operating in high-vibration, high-energy-waste conditions. Combined with power quality analyzers and energy metering modules at the MCC level, the data from the 330101-00-59-15-12-05 becomes part of a comprehensive condition monitoring loop that spans from the sensor to the enterprise maintenance planning system.

Maintenance and Replacement Notes

Consider a petrochemical plant operating a bank of centrifugal compressors running 24/7. Without continuous vibration monitoring, operators rely on periodic manual checks — a practice that allows developing faults to go undetected for days or weeks. During this window, a compressor with a developing bearing defect may draw 8–15% more current than its rated load, generating excess heat and consuming thousands of additional operating-hours before the fault is identified.

With the Bently Nevada 330101-00-59-15-12-05 installed on each compressor shaft, the 3300 XL monitoring system continuously tracks radial vibration, axial position, and shaft eccentricity. When vibration amplitude begins to trend upward — even before it reaches alarm threshold — the System 1 software flags the anomaly and generates a maintenance work order. The maintenance team can then schedule a bearing replacement during the next planned outage, avoiding both the unplanned downtime of degraded operation and the catastrophic energy spike associated with an uncontrolled shutdown and emergency restart.

In a paper mill or steel rolling application, where production line rhythm (takt time) is critical, the 330101-00-59-15-12-05 helps maintain consistent shaft alignment and balance across drive trains. Misalignment and imbalance are among the leading causes of excess operating load in rotating machinery — studies consistently show that correcting these conditions can reduce motor energy draw by 5–15%. By providing the continuous, high-resolution displacement data needed to detect and correct these conditions proactively, the 330101-00-59-15-12-05 directly contributes to production line energy efficiency.

From a maintenance cost perspective, the warranty terms confirmed during quotation on the 330101-00-59-15-12-05 provides procurement teams with cost certainty during the initial deployment phase. Combined with ZYPLC’s pre-shipment testing protocol — which verifies sensitivity, linearity, and output signal integrity before dispatch — customers can be confident that the transducer will perform to specification from day one, without the energy and productivity losses associated with early-life failures.

Product Sourcing FAQ

Q1: How does the 330101-00-59-15-12-05 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft vibration and position data, the 330101-00-59-15-12-05 enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear — all of which cause motors to draw abnormal load. Early intervention based on this data can help restore stable operation when a compatible replacement is required.

Q2: Is the 330101-00-59-15-12-05 compatible with the Bently Nevada 3500 Series monitoring rack?
Yes. The 330101-00-59-15-12-05 is designed for use within the Bently Nevada 3300 XL system and is fully compatible with the 3500 Series rack when used with the appropriate 3300 XL proximitor/oscillator. It can also interface with legacy 3300 Series monitors, making it suitable for both new installations and system upgrades.

Q3: What is the recommended replacement interval, and how does proactive replacement reduce unplanned downtime?
Bently Nevada recommends replacing proximity transducers as part of a scheduled maintenance program rather than waiting for failure. A degraded transducer with reduced sensitivity or signal drift can cause the monitoring system to miss developing faults, allowing machinery to operate in an energy-inefficient state for extended periods. ZYPLC supports RFQ sourcing for the 330101-00-59-15-12-05 to support rapid replacement with minimal lead time.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Prior to shipment, each 330101-00-59-15-12-05 unit undergoes functional testing that verifies output sensitivity (7.87 V/mm), signal linearity across the measurement range, and connector integrity. This pre-shipment testing protocol ensures that every unit delivered by ZYPLC is ready for immediate installation and reliable operation.

—
