Bently Nevada 330101-00-77-15-12-05: Industrial Vibration Data Link for Smart Factory Condition Monitoring

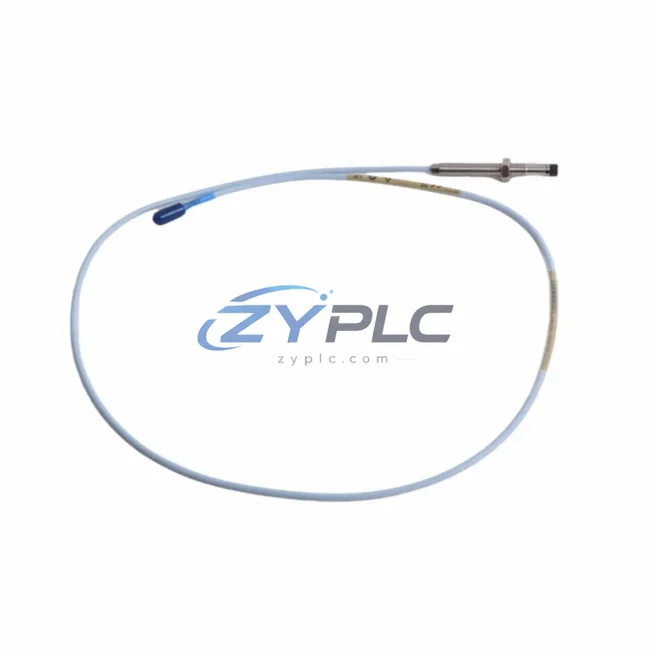

The Bently Nevada 330101-00-77-15-12-05 is a high-precision eddy-current proximity transducer system from the renowned 3300 XL Series, engineered to deliver continuous, real-time vibration and position data across the most demanding industrial environments. As rotating machinery becomes increasingly integrated into smart factory architectures, the ability to capture accurate shaft displacement, radial vibration, and axial position data — and transmit it seamlessly into plant-wide monitoring networks — is no longer optional. The 330101-00-77-15-12-05 is purpose-built for exactly this role, forming the critical sensing layer between physical rotating assets and the digital intelligence of modern SCADA, DCS, and condition monitoring platforms.

Deployed across turbines, compressors, pumps, motors, and gearboxes in oil & gas, power generation, petrochemical, and heavy manufacturing facilities, this proximity transducer system provides the foundational vibration signal that feeds upstream monitoring and protection systems. Its non-contact eddy-current sensing principle ensures zero mechanical wear, long service life, and consistent signal integrity even in high-temperature, high-vibration, or chemically aggressive plant environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory condition monitoring architecture, the Bently Nevada 330101-00-77-15-12-05 proximity transducer system sits at the very beginning of the vibration data chain. The transducer probe, extension cable, and proximitor/driver assembly work together to convert physical shaft displacement into a precise analog DC voltage signal. This signal is then routed directly into a Bently Nevada 3300 XL Monitor — such as the 3300/16 or 3300/20 series rack-mounted monitor modules — where it is conditioned, scaled, and evaluated against configurable alarm and danger setpoints.

From the 3300 XL monitor rack, vibration data is transmitted via the Bently Nevada TDI (Transient Data Interface) or through standard analog 4–20 mA outputs into plant DCS systems — including platforms such as the GE Mark VIe turbine control system or Emerson DeltaV DCS — where it becomes part of the broader process control data stream. Simultaneously, the Bently Nevada System 1 condition monitoring and diagnostics software aggregates vibration waveforms, trend data, and alarm histories from multiple 3300 XL monitor channels, providing maintenance engineers with a unified view of rotating machinery health across the entire plant.

For facilities requiring protocol conversion into modern industrial Ethernet networks, a Modbus RTU-to-Modbus TCP gateway or an OPC-UA server — such as those provided by Kepware or Matrikon — bridges the analog and serial data from the 3300 XL monitor into the plant’s Ethernet backbone. This enables the vibration data captured by the 330101-00-77-15-12-05 to be consumed by SCADA platforms such as Wonderware AVEVA, Ignition by Inductive Automation, or GE iFIX, where it is displayed on operator HMI screens alongside process variables from remote I/O modules, variable frequency drives (VFDs), and smart transmitters.

In edge computing architectures, vibration data from the proximity transducer system can be pre-processed by an industrial edge gateway — such as the Bently Nevada Scout wireless monitoring device or a third-party IIoT edge node — before being forwarded to cloud-based asset performance management (APM) platforms. This multi-layer data flow — from transducer probe through monitor rack, DCS, SCADA, and edge gateway to cloud APM — represents the complete industrial connectivity chain that the 330101-00-77-15-12-05 anchors at the field level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is the fragmentation of vibration data across incompatible systems. Legacy rotating machinery protection systems often operate as isolated islands — their alarm outputs wired directly to control room panels with no digital integration into the plant DCS or SCADA network. The result is that critical vibration trends, early-warning signatures, and historical waveform data remain locked inside proprietary monitor racks, invisible to the broader plant operations and maintenance teams.

The Bently Nevada 330101-00-77-15-12-05 proximity transducer system, when paired with the 3300 XL monitor platform and Bently Nevada System 1 software, directly addresses this data isolation problem. By providing standardized analog outputs compatible with any DCS analog input card, and by supporting digital communication via the TDI interface into System 1, the 3300 XL ecosystem enables vibration data to flow freely into plant-wide historian databases, SCADA dashboards, and maintenance management systems (CMMS).

For sites undergoing digital transformation, the integration of proximity transducer data into OPC-UA or Modbus TCP networks eliminates the need for manual data collection rounds, reduces the risk of missed alarm conditions, and enables remote diagnostics from centralized engineering workstations or mobile devices. Maintenance teams can monitor shaft vibration trends, bearing wear indicators, and rotor balance conditions in real time — without being physically present at the machine — dramatically improving response times and reducing unplanned downtime.

System scalability is another key advantage. The modular architecture of the 3300 XL platform allows additional transducer channels — covering axial position, differential expansion, eccentricity, and speed — to be added to the same monitor rack without disrupting existing wiring or network configurations. This means that as plant monitoring requirements grow, the data infrastructure built around the 330101-00-77-15-12-05 can expand to cover additional measurement points, additional machines, and additional plant areas, all feeding into the same unified SCADA and APM environment.

Industrial Connectivity FAQ

Q1: Is the Bently Nevada 330101-00-77-15-12-05 compatible with modern DCS and SCADA systems?
Yes. The 330101-00-77-15-12-05 produces a standard analog DC voltage output that is directly compatible with any DCS analog input module. When used with the Bently Nevada 3300 XL monitor and System 1 software, vibration data can also be transmitted digitally via the TDI interface or converted to Modbus RTU/TCP for integration into SCADA platforms including Wonderware AVEVA, Ignition, and GE iFIX.

Q2: What is the communication latency for vibration data from the 330101-00-77-15-12-05 to the SCADA system?
The analog signal output from the proximity transducer system is continuous and real-time, with no inherent digital communication latency at the transducer level. Latency in the overall data chain depends on the DCS scan rate and SCADA polling interval — typically 100ms to 1 second for standard process control applications, and sub-100ms for dedicated machinery protection monitor channels.

Q3: Can the 330101-00-77-15-12-05 be used in hazardous area (Ex/ATEX) installations?
The 3300 XL proximity transducer system is designed for use in industrial environments and may be suitable for certain hazardous area classifications depending on the specific installation configuration and applicable local regulations. Please consult the Bently Nevada 3300 XL product documentation and your site safety engineer to confirm ATEX/IECEx compliance for your specific application.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 330101-00-77-15-12-05?
Every Bently Nevada 330101-00-77-15-12-05 unit shipped by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes verified pre-shipment functional testing to confirm signal output integrity, cable continuity, and connector condition. Units are shipped via DHL or FedEx with full tracking. For urgent requirements, expedited shipping and same-day dispatch options are available — contact our team for availability confirmation.
