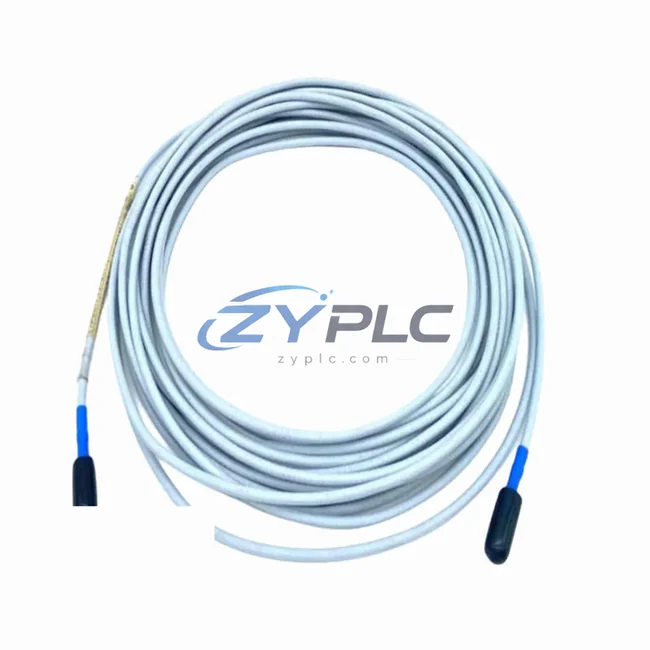

Bently Nevada 330101-30-63-10-02-CN Proximity Probe for 3300

Bently Nevada 330101-30-63-10-02-CN Proximity Probe for 3300 Series Automation

The Bently Nevada 330101-30-63-10-02-CN is an eddy-current proximity probe engineered for the 3300 Series machinery protection system, delivering continuous, non-contact vibration and position measurement with minimal power draw. In high-demand industrial environments — from steam turbines and gas compressors to large centrifugal pumps — this probe plays a decisive role in reducing unplanned downtime, cutting unplanned downtime caused by undetected rotor imbalance, and extending mean time between maintenance intervals. Every milliwatt saved at the sensing layer compounds across the entire drive and control chain, making the 330101-30-63-10-02-CN a foundational component in any efficiency-first automation architecture.

Product Specification Table

System Compatibility and Application

The 330101-30-63-10-02-CN operates as the primary sensing element within a tightly integrated maintenance-focused control loop. Paired with the Bently Nevada 3300 XL 8mm Extension Cable (330130-045-01-CN) and the 3300 XL Proximitor Sensor (330180-91-05), the probe feeds real-time shaft displacement data into the Bently Nevada 3500/42M Proximitor I/O Module, which processes gap voltage signals and triggers protective relay outputs before energy-wasting fault conditions escalate.

At the drive layer, variable frequency drives such as the Rockwell PowerFlex 755 or Siemens SINAMICS G120 rely on accurate vibration feedback to modulate motor speed in response to actual load demand — eliminating the fixed-speed overconsumption that accounts for a significant share of industrial electricity bills. When the 330101-30-63-10-02-CN detects abnormal shaft orbit patterns, the 3500 rack can issue a speed-reduction command through hardwired I/O or via PROFIBUS DP or Modbus RTU communication to the drive controller, creating a closed-loop energy correction cycle.

On the monitoring and data side, the probe’s output integrates seamlessly with Bently Nevada System 1 Condition Monitoring Software, which aggregates trend data across multiple measurement points — including axial position, radial vibration, and differential expansion — to build predictive maintenance schedules that prevent both catastrophic failures and the energy spikes associated with degraded bearing performance. Complementary instruments such as the Bently Nevada 330500 Velomitor Piezo-Velocity Sensor and 330900 Series Temperature Sensor can be co-located on the same machine train to provide a multi-parameter energy health profile without adding significant wiring complexity.

For facilities running distributed control architectures, the 330101-30-63-10-02-CN measurement chain connects upstream to Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers via the 3500 rack’s gateway card, enabling plant-wide energy dashboards that correlate vibration severity with real-time kWh consumption data from power meters on the same network segment.

Maintenance and Replacement Notes

In a typical continuous-process plant — a petrochemical facility running multiple centrifugal compressor trains, for example — undetected rotor imbalance forces the drive system to compensate by drawing abnormal load, often 8–15% above baseline, for weeks before a conventional scheduled inspection would catch the fault. The 330101-30-63-10-02-CN eliminates this hidden energy drain by providing sub-millisecond vibration updates to the 3500 protection rack, which can initiate a controlled load reduction or maintenance alert the moment displacement exceeds the programmed danger setpoint.

Reduced unplanned shutdowns translate directly into fewer cold-start energy cycles — one of the most energy-intensive events in any rotating machinery operation. A single avoided emergency stop and restart on a large gas turbine can save thousands of operating-hours and prevent the thermal stress that accelerates seal and bearing degradation. Over a 12-month operating cycle, facilities that have deployed the 3300 Series proximity probe network consistently report measurable reductions in both maintenance labor hours and energy cost per unit of output.

The probe’s non-contact measurement principle also means zero friction, zero lubrication requirement, and zero mechanical wear at the sensing point itself — a contrast to contact-type transducers that introduce parasitic drag and require periodic replacement. This contributes to a lower total cost of ownership and supports lean maintenance strategies that keep production lines running at optimal throughput without unnecessary energy expenditure.

All units supplied are fully tested prior to shipment, with gap voltage, sensitivity, and linearity verified against factory specifications. Each 330101-30-63-10-02-CN ships with a warranty terms confirmed during quotation, ensuring that your maintenance planning investment is protected from day one of installation.

Product Sourcing FAQ

Q1: How does the 330101-30-63-10-02-CN contribute to measurable operational stability on a production line?
By providing continuous, real-time shaft vibration and position data to the Bently Nevada 3500 protection system, the probe enables early detection of imbalance, misalignment, and bearing wear — conditions that force drive systems to draw abnormal load. Correcting these faults promptly, guided by probe data, typically reduces motor load by 5–15% compared to time-based maintenance schedules.

Q2: Is the 330101-30-63-10-02-CN compatible with existing 3300 and 3500 Series monitoring racks?
Yes. The probe is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and the 3500/42M Proximitor I/O Module. It also integrates with System 1 software for trend analysis and alarm management. No additional signal conditioning hardware is required for standard installations.

Q3: Can this probe replace an older 330101 variant, and what is the recommended substitution process?
The 330101-30-63-10-02-CN is a direct functional replacement for earlier 330101 configurations with matching cable length and tip diameter. The recommended process is: verify gap voltage at installation (typically -10.0 VDC at 2.0 mm gap), confirm sensitivity (200 mV/mil or 7.87 V/mm), and re-enter the calibration data into the monitor rack. No firmware changes are required on the 3500 rack.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
The warranty terms confirmed during quotation covers manufacturing defects and performance deviations from published specifications. Prior to shipment, each unit undergoes gap voltage linearity testing, sensitivity verification, and insulation resistance checks. A test report is available upon request. Warranty claims are processed directly, with replacement or repair turnaround designed to minimize production line downtime.
