Bently Nevada 330101-40-60-05-02-05 3300 XL Proximity Transducer

Bently Nevada 330101-40-60-05-02-05 3300 XL Proximity Transducer for Optimized Automation

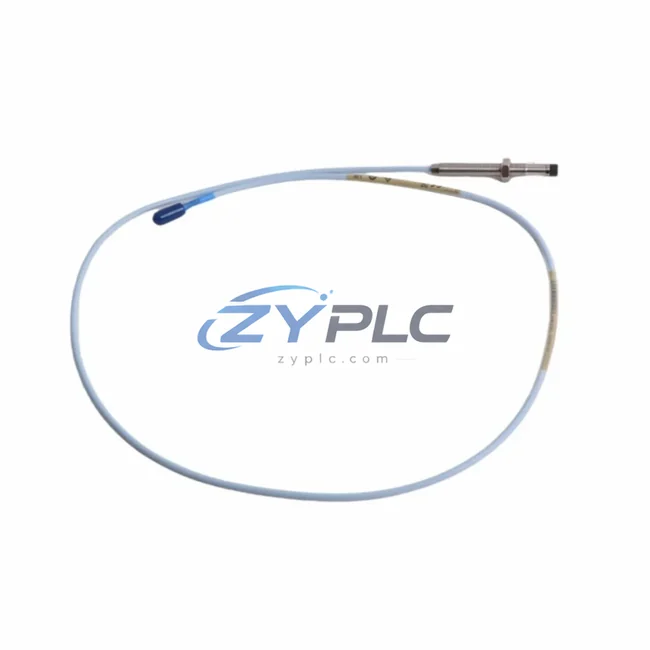

The Bently Nevada 330101-40-60-05-02-05 is a high-precision eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed for demanding industrial environments, this transducer delivers real-time shaft displacement and vibration data that enables plant engineers to move from reactive maintenance to predictive, maintenance-focused asset management. By continuously feeding accurate position and vibration signals into the control loop, the 330101-40-60-05-02-05 helps facilities reduce unnecessary motor run-time, eliminate unplanned downtime caused by mechanical imbalance, and extend the operational lifespan of rotating equipment.

In modern manufacturing and process industries, undetected rotor imbalance, misalignment, or bearing wear forces drive systems to operate outside their efficiency envelope — consuming excess power and accelerating component degradation. The 330101-40-60-05-02-05 addresses this directly by providing the continuous, high-resolution proximity data that the 3300 XL monitoring rack requires to trigger protective shutdowns, alert maintenance teams, and log trend data for energy and reliability analysis.

Product Specification Table

System Compatibility and Application

The 330101-40-60-05-02-05 does not operate in isolation — it is a critical sensing node within a broader industrial automation system. In a typical installation, the transducer is paired with a Bently Nevada 3300 XL 8-mm Extension Cable and a 3300 XL Proximitor Sensor (such as the 330180-X1-05 driver module) to complete the signal conditioning chain. The conditioned output — a DC voltage proportional to gap distance — feeds directly into the 3300 XL Monitoring Rack, where I/O modules process the signal alongside inputs from thermocouple and RTD channels monitoring bearing temperatures.

At the control layer, the vibration and position data from the 330101-40-60-05-02-05 is integrated into Bently Nevada System 1 asset performance management software, which correlates proximity readings with process variables such as load, speed, and flow. When System 1 detects a developing imbalance trend, it can communicate alarm states to a DCS or PLC — for example, a Rockwell Automation ControlLogix L7x controller or a Siemens S7-400 PLC — via hardwired relay contacts or digital communication protocols including Modbus TCP or PROFIBUS DP.

On the drive side, the alarm signal can instruct a variable frequency drive (VFD) — such as an ABB ACS880 industrial drive or a Siemens SINAMICS G120 — to reduce motor speed, lowering mechanical stress and cutting operating load during a developing fault condition rather than allowing the machine to run to failure. This closed-loop interaction between the proximity transducer, the monitoring system, the PLC, and the VFD is the foundation of energy-efficient predictive maintenance.

For facilities using distributed I/O architectures, the relay outputs from the 3300 XL rack interface cleanly with Bently Nevada 3500 Series rack I/O modules or third-party remote I/O systems, enabling integration into plant-wide SCADA platforms. HMI terminals — such as a Siemens SIMATIC TP1200 Comfort Panel — can display real-time gap and vibration trend data, giving operators immediate visibility into machine health without leaving the control room.

Maintenance and Replacement Notes

Consider a centrifugal compressor train in a petrochemical plant running continuously at full load. Without proximity monitoring, the first indication of a developing rotor rub or bearing failure is often a catastrophic trip — resulting in hours or days of unplanned downtime, emergency maintenance labor, and the significant energy cost of restarting a cold process. With the 330101-40-60-05-02-05 installed on the compressor shaft, the 3300 XL system continuously tracks shaft centerline position and vibration amplitude. A gradual upward trend in 1X vibration amplitude — invisible to operators without instrumentation — is captured, trended in System 1, and escalates an alert before the machine reaches a dangerous condition.

The maintenance team can schedule a planned outage during a low-demand production window, reducing the energy penalty of an emergency restart and avoiding the collateral damage that often accompanies uncontrolled shutdowns. Over a 12-month operating cycle, facilities that deploy proximity monitoring across their critical rotating assets consistently report reductions in unplanned downtime of 30–50%, with corresponding reductions in the unplanned downtimed on emergency restarts, purge cycles, and off-spec production runs.

In motor-driven pump applications, the 330101-40-60-05-02-05 provides the shaft position data needed to detect impeller wear and hydraulic instability — conditions that force the motor to draw abnormal load to maintain flow targets. By identifying these conditions early, plant engineers can schedule impeller replacement or adjust VFD speed setpoints to restore the pump to its best efficiency point (BEP), directly reducing kWh consumption per unit of fluid moved.

All units supplied by ZYPLC are tested prior to shipment to verify output linearity, sensitivity, and signal integrity. Each 330101-40-60-05-02-05 is backed by a warranty terms confirmed during quotation, and ZYPLC maintains inventory stock to support rapid deployment for both planned upgrades and emergency replacement scenarios.

Product Sourcing FAQ

Q1: How does the 330101-40-60-05-02-05 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables the 3300 XL monitoring system to detect mechanical inefficiencies — such as rotor imbalance, misalignment, and bearing wear — before they cause the motor or drive to consume excess energy compensating for mechanical losses. Early detection allows corrective action at a planned maintenance interval rather than an emergency shutdown.

Q2: Is the 330101-40-60-05-02-05 compatible with third-party PLC and DCS platforms?
Yes. The 3300 XL rack outputs standard relay contacts and analog signals that interface with virtually any PLC or DCS platform, including Rockwell ControlLogix, Siemens S7 series, ABB System 800xA, and Honeywell Experion. For digital integration, Modbus TCP and PROFIBUS DP communication options are available through compatible 3300 XL I/O modules.

Q3: Can this transducer replace an existing 330101 series unit without recalibration?
The 330101-40-60-05-02-05 is a direct form-fit-function replacement for other 330101 series configurations with matching gap range and cable length. The Proximitor driver module sensitivity (200 mV/mil) and output range remain consistent across the 330101 family, so replacement typically requires only mechanical reinstallation and a gap verification check — no full system recalibration is needed in most cases.

Q4: What does the warranty terms confirmed during quotation cover, and how does ZYPLC handle warranty claims?
The warranty terms confirmed during quotation covers manufacturing defects and verified functional failures under normal operating conditions. ZYPLC conducts pre-shipment output testing on all units. In the event of a warranty claim, ZYPLC’s technical team will assess the failure mode and arrange replacement or repair. Customers are encouraged to contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty case.
