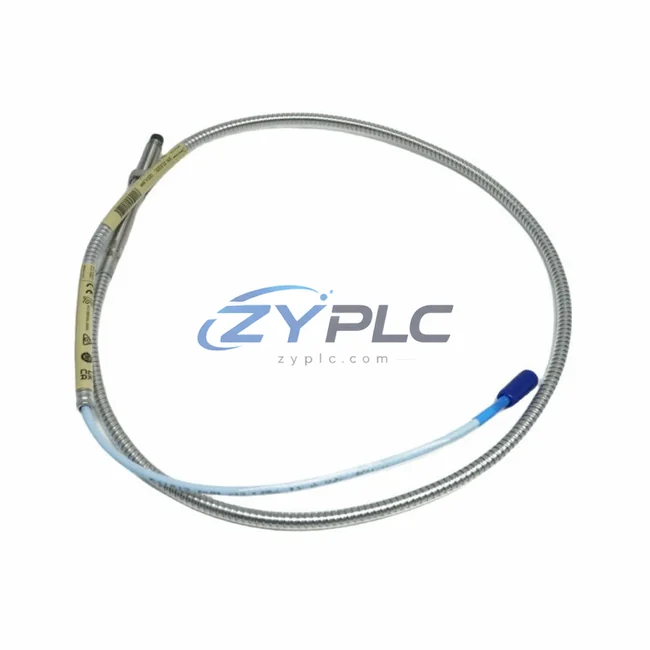

Bently Nevada 330102-00-08-50-02-CN Proximity Probe for 3300 XL Systems

Bently Nevada 330102-00-08-50-02-CN: Industrial Data Link for 3300 XL Vibration Monitoring Systems

The Bently Nevada 330102-00-08-50-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. In modern smart factory environments, real-time shaft displacement and vibration data are not isolated measurements — they are critical nodes in a plant-wide industrial data network. This probe serves as the front-end sensing element that feeds precision analog signals into the 3300 XL monitor rack, where data is conditioned, digitized, and transmitted upstream to SCADA systems, DCS controllers, and historian databases for continuous asset health surveillance.

Designed to operate within the Bently Nevada Proximitor® ecosystem, the 330102-00-08-50-02-CN integrates seamlessly with the 3300 XL 8mm Proximitor® Sensor (such as the 330180 series) to deliver a calibrated, temperature-compensated output signal. This signal chain — from probe tip to Proximitor to monitor card — forms the foundation of a reliable industrial communication loop that supports predictive maintenance strategies across rotating machinery including turbines, compressors, pumps, and motors.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding how the 330102-00-08-50-02-CN fits into a connected automation architecture is essential for system integrators and reliability engineers. The data flow begins at the probe tip, where the eddy-current field detects shaft position changes with sub-micron resolution. The analog signal travels through a matched Bently Nevada 330130-045-00-00 extension cable to the 330180-X1-05 Proximitor® Sensor, which conditions and scales the output before feeding it into a 3300/16 Monitor Card installed in the 3300 XL rack.

Within the monitor rack, the conditioned signal is processed alongside inputs from other channels — including 3300/20 Keyphasor® modules for phase reference and 3300/55 Temperature Monitor cards for bearing temperature correlation. The rack communicates with plant-level systems via the 3500/92 Communication Gateway Module, which supports Modbus TCP, Modbus RTU, and OPC-DA/UA protocols, enabling direct integration with Emerson DeltaV DCS, Honeywell Experion PKS, or third-party SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation.

At the HMI layer, operators view real-time vibration trends, alarm states, and historical waveforms through System 1® Evolution software, which aggregates data from multiple 3300 XL and 3500 Series racks across the plant network. Edge gateways — such as the Emerson AMS Device Manager or third-party IIoT edge nodes — can further push this data to cloud-based analytics platforms for fleet-wide predictive maintenance. The entire chain, from the 330102-00-08-50-02-CN probe to the enterprise historian, represents a fully connected industrial data pipeline with no signal gaps.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is data isolation — rotating machinery monitored by standalone vibration analyzers that cannot share data with the plant DCS, SCADA, or ERP systems. The Bently Nevada 330102-00-08-50-02-CN and the broader 3300 XL platform directly address this problem by providing a standardized, protocol-compatible sensing foundation that bridges field-level measurement with plant-level intelligence.

Protocol Unification: By pairing this probe with the 3500/92 Communication Gateway, plants can unify Modbus RTU legacy devices with modern OPC-UA networks, eliminating the need for separate protocol converters on each machine train. A single gateway can serve multiple monitor racks, reducing hardware complexity and network latency.

Eliminating Data Silos: Vibration data captured by the 330102-00-08-50-02-CN is time-stamped and synchronized with process variables (flow, pressure, temperature) from the DCS, enabling cross-domain correlation that was previously impossible with isolated monitoring systems. This transparency is the cornerstone of production line digitalization.

Remote Monitoring and Diagnostics: With System 1® Evolution connected over plant Ethernet, maintenance engineers can remotely access live waveform data, configure alarm thresholds, and perform gap voltage checks on the 330102-00-08-50-02-CN without entering hazardous areas. Remote diagnostics reduce unplanned downtime and support condition-based maintenance programs.

System Scalability: The 3300 XL architecture supports modular expansion — additional monitor cards, Keyphasor modules, and relay output cards can be added to the same rack without rewiring the probe network. This scalability protects capital investment as plant monitoring requirements grow.

Pre-Shipment Testing: Every 330102-00-08-50-02-CN unit supplied by ZYPLC undergoes functional verification including gap voltage output test, cable continuity check, and connector integrity inspection before dispatch. Units are shipped with original documentation and are covered by a warranty terms confirmed during quotation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3300 XL system support when integrated with SCADA?
The 3300 XL monitor rack, when paired with the 3500/92 Communication Gateway Module, supports Modbus RTU, Modbus TCP/IP, and OPC-DA/UA protocols. This allows direct integration with major SCADA platforms including Wonderware, iFIX, Ignition, and DCS systems such as Emerson DeltaV and Honeywell Experion. The 330102-00-08-50-02-CN probe feeds analog data into this communication chain as the primary sensing element.

Q2: Is the 330102-00-08-50-02-CN compatible with both 3300 XL and 3500 Series monitor racks?
The 330102-00-08-50-02-CN is designed and calibrated for the 3300 XL 8mm system. While the physical probe connector and eddy-current principle are shared across Bently Nevada product lines, full system compatibility — including calibration curves and gap voltage specifications — should be verified against the target monitor card. For 3500 Series applications, consult the 3500/42M Proximitor®/Seismic Monitor specifications.

Q3: How does network stability affect vibration data accuracy in continuous monitoring applications?
The 330102-00-08-50-02-CN delivers an analog signal that is inherently immune to digital network latency at the probe-to-Proximitor stage. Network stability becomes critical at the monitor-to-SCADA communication layer, where Modbus polling rates and OPC-UA subscription intervals must be configured to match the alarm response time requirements of the application. Bently Nevada recommends dedicated industrial Ethernet segments for System 1® communication to minimize packet loss and ensure sub-second alarm propagation.

Q4: What does the warranty terms confirmed during quotation cover, and how does ZYPLC handle warranty claims?
The warranty terms confirmed during quotation covers manufacturing defects, premature signal output failure, and connector integrity issues under normal operating conditions. ZYPLC provides pre-shipment test reports with each unit. In the event of a warranty claim, customers contact plc.sales@zyplc.com with the unit serial number and fault description. Replacement or repair is coordinated within 5 business days of claim verification, with DHL/FedEx express return shipping available for urgent production requirements.
