Bently Nevada 330102-00-16-10-02-00: Industrial Vibration Data Link for 3300 XL Smart Factory Systems

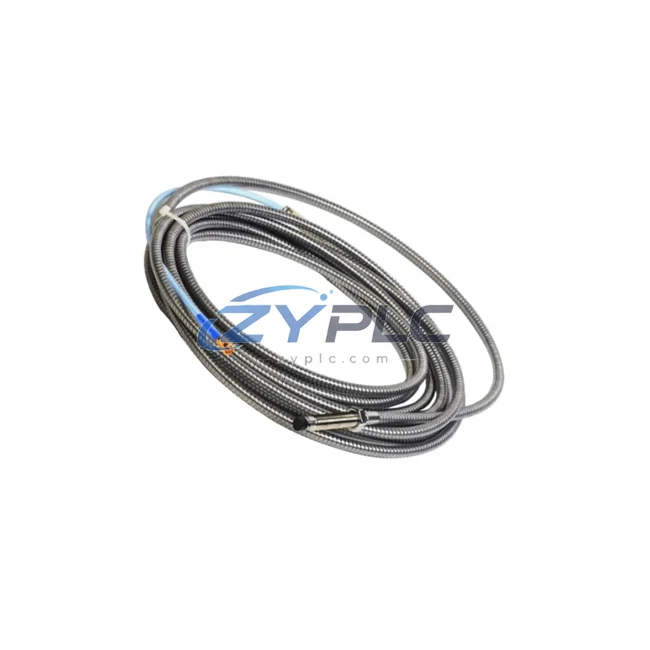

The Bently Nevada 330102-00-16-10-02-00 is a high-precision eddy current proximity probe engineered for the 3300 XL Series machinery protection platform. Designed to deliver continuous, real-time shaft vibration and position data across the full industrial data chain — from rotating equipment to PLC controllers, DCS systems, SCADA platforms, and HMI interfaces — this probe is a foundational component in modern smart factory connectivity architectures.

In industrial environments where data isolation leads to unplanned downtime and production loss, the 330102-00-16-10-02-00 serves as the critical first link in the signal acquisition chain. Its non-contact eddy current sensing principle ensures zero mechanical wear, delivering stable analog output signals that feed directly into the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 series), which conditions and converts raw proximity signals into industry-standard 4–20 mA or voltage outputs compatible with downstream control and monitoring networks.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330102-00-16-10-02-00 proximity probe initiates the data flow at the machine level. Mounted radially or axially on rotating shafts in turbines, compressors, or large motors, it generates a continuous analog signal proportional to the gap between probe tip and target material. This raw signal travels via matched extension cable — typically the Bently Nevada 330130-045-00-00 or equivalent 3300 XL series extension cable — to the Bently Nevada 3300 XL Proximitor Sensor, where signal conditioning and scaling occur.

The conditioned output is then routed to the Bently Nevada 3500 Series Machinery Protection System rack — including modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/22M Transient Data Interface — where vibration amplitude, phase, and position values are processed against configurable alarm and danger setpoints. Trip signals are transmitted to the plant’s Safety Instrumented System (SIS) or directly to the Allen-Bradley ControlLogix PLC or Siemens S7-400 PLC via hardwired relay outputs or digital fieldbus communication.

At the network layer, the 3500 rack communicates upstream via MODBUS TCP or OPC-UA to the plant SCADA system — such as GE iFIX, Wonderware AVEVA, or Ignition by Inductive Automation — enabling operators to visualize real-time shaft centerline plots, orbit diagrams, and trend data on HMI panels located in the control room. Simultaneously, data is archived in the plant historian for long-term analysis and predictive maintenance scheduling.

For facilities integrating edge computing, the analog output from the Proximitor can also be connected to an industrial edge gateway (such as the Moxa MGate or HMS Anybus X-gateway) to bridge legacy analog signals into Industrial Ethernet or IIoT cloud platforms, enabling remote diagnostics and AI-driven vibration analytics without replacing existing field instrumentation.

Solving Data Isolation in Industrial Sites

Many industrial plants operate with fragmented monitoring architectures — vibration data locked inside standalone protection systems, inaccessible to the plant DCS or SCADA, creating dangerous data silos. The Bently Nevada 330102-00-16-10-02-00 within the 3300 XL ecosystem directly addresses this challenge.

By standardizing on the 3300 XL probe and Proximitor platform, plants gain a unified signal source that integrates cleanly with both legacy 4–20 mA control loops and modern digital fieldbus networks. Protocol conversion is handled at the 3500 rack or via external gateways, eliminating the need for custom signal conditioning hardware. This means a single probe installation can simultaneously feed a hardwired trip relay, a MODBUS-connected DCS input card, and an OPC-UA data stream to the SCADA historian — all from one measurement point.

Remote diagnostics become practical: maintenance engineers can access real-time vibration spectra and alarm histories from the SCADA workstation or mobile HMI without entering hazardous areas. Production line transparency improves as vibration trends are correlated with process variables — flow, pressure, temperature — enabling condition-based maintenance rather than time-based overhaul schedules. System expansion is straightforward: additional 330102-series probes can be added to the 3500 rack without architectural changes, scaling from a single machine to a plant-wide machinery protection network.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying probe sensitivity, cable continuity, and output signal linearity before dispatch. Availability confirmed by RFQ inventory ensures short lead times, and all units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 330102-00-16-10-02-00 in a SCADA-connected system?
The proximity probe itself delivers a continuous analog signal with no digital latency — response is essentially real-time at the sensor level. Latency in the overall data chain depends on the Proximitor update rate and the SCADA polling cycle; typical MODBUS TCP polling intervals of 100–500 ms are standard for vibration monitoring applications, well within the requirements for machinery protection and trend analysis.

Q2: Is the 330102-00-16-10-02-00 compatible with non-Bently Nevada signal conditioners or third-party PLC input cards?
The probe is designed for use with Bently Nevada 3300 XL Proximitor Sensors, which provide the required oscillator/demodulator circuitry. The conditioned output (typically –24 VDC bias with AC vibration component) can be interfaced to third-party systems using appropriate signal conditioning modules. Direct connection to standard PLC analog input cards without a compatible Proximitor is not recommended and may result in measurement errors.

Q3: How does the 3300 XL system handle network stability and alarm reliability in noisy industrial environments?
The 3300 XL platform is designed for industrial EMC compliance, with shielded coaxial cabling and differential signal processing minimizing noise pickup. The 3500 rack provides hardware-based alarm processing independent of the SCADA network, ensuring trip signals are issued even during network communication failures — a critical safety feature for rotating machinery protection.

Q4: What warranty and testing does ZYPLC provide for the 330102-00-16-10-02-00?
All units are covered by a warranty terms confirmed during quotation from the date of shipment. Pre-shipment testing includes probe sensitivity verification, coaxial connector integrity check, and output signal validation. Units are shipped via DHL or FedEx with full tracking. For volume orders or urgent requirements, contact our team directly for lead time confirmation and technical support.
