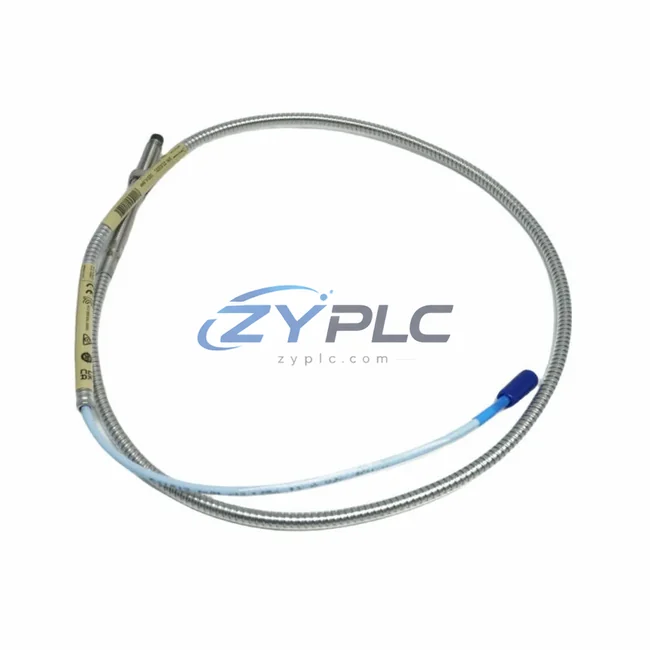

Bently Nevada 330102-00-36-05-02-05 Proximity Transducer

Bently Nevada 330102-00-36-05-02-05 Proximity Transducer for 3300 Series Automation

In modern industrial facilities where uptime and energy efficiency define competitive advantage, the Bently Nevada 330102-00-36-05-02-05 proximity transducer delivers precision vibration measurement that directly supports smarter motor control, reduced unplanned downtime, and optimized production line throughput. As part of the renowned Bently Nevada 3300 Series continuous monitoring platform, this transducer is engineered to provide real-time shaft displacement data that enables predictive maintenance strategies — eliminating the reactive, energy-intensive cycles of emergency repair and equipment restart.

The 330102-00-36-05-02-05 operates as a non-contact eddy-current sensing element, converting mechanical shaft motion into precise electrical signals without physical wear. This fundamental design principle means zero friction losses, zero lubrication requirements, and a sensor service life that far exceeds contact-based alternatives — all contributing to a lower total energy footprint per monitored asset. When integrated with the Bently Nevada 3300/16 Dual Voting Trip Module and the 3300/20 16-Channel Monitor, the system creates a closed-loop vibration management architecture that continuously adjusts alarm thresholds based on real operating conditions rather than conservative static setpoints that waste energy through unnecessary shutdowns.

Product Specification Table

System Compatibility and Application

The 330102-00-36-05-02-05 does not operate in isolation — its true maintenance planning value emerges when deployed within a coordinated industrial automation architecture. In a typical rotating machinery protection system, this transducer feeds shaft displacement data to the Bently Nevada 3300/55 Keyphasor Module, which synchronizes vibration phase angle measurements with rotor speed. This phase-referenced data is then processed by the 3300/46M Machinery Diagnostics Module, enabling the control system to distinguish between imbalance, misalignment, and bearing degradation — each of which carries a distinct energy signature and requires a different corrective response.

On the drive side, variable frequency drives such as the Rockwell Automation PowerFlex 755 or Siemens SINAMICS G120 can receive corrective speed reference signals derived from vibration trend data, allowing the drive to modulate motor speed before mechanical stress escalates into a fault condition. This proactive speed adjustment reduces peak current draw during resonance events — a direct energy saving that compounds across multi-motor production lines. The Bently Nevada 3500/42M Proximitor I/O Module provides the signal interface between the transducer field wiring and the plant DCS or PLC, typically a Rockwell ControlLogix L85E or Siemens S7-1500 CPU 1516, where maintenance planning logic resides.

For facilities running System 1 Evolution asset performance management software, the 330102-00-36-05-02-05 data stream integrates directly into the plant-wide energy dashboard, correlating vibration health scores with power meter readings from Schneider Electric PowerLogic ION9000 power quality meters. This correlation allows energy managers to identify which machines are consuming excess power due to mechanical degradation — turning vibration data into an actionable energy efficiency KPI. Communication is handled via Modbus TCP/IP or OPC-UA protocol bridges, ensuring compatibility with modern IIoT maintenance planning platforms without requiring proprietary gateways.

Maintenance and Replacement Notes

Consider a petrochemical facility operating six centrifugal compressor trains, each driven by a 2 MW induction motor. Without continuous proximity monitoring, operators rely on periodic manual vibration checks — typically monthly — leaving weeks of potential mechanical degradation undetected. During that window, a developing bearing fault increases rotor eccentricity, which in turn increases motor slip and raises current draw by 3–8% above baseline. Across six machines running 8,760 hours per year, that undetected inefficiency translates to hundreds of megawatt-hours of wasted energy annually.

With the Bently Nevada 330102-00-36-05-02-05 installed on each machine’s drive-end and non-drive-end bearing journals, the 3300 Series monitoring system captures shaft centerline position plots in real time. When the system detects a progressive shift in the DC gap voltage — indicating bearing wear — it triggers a condition alert in System 1 before the vibration amplitude crosses the danger threshold. Maintenance teams can schedule corrective action during the next planned production window rather than responding to an emergency trip. The avoided restart cycle alone — which typically draws 6–8× rated motor current for 3–5 seconds — represents a measurable reduction in peak demand charges on the facility’s electricity tariff.

On automotive stamping lines where press cycle time directly governs throughput, proximity transducers mounted on eccentric shaft bearings provide the cycle-accurate displacement data needed to verify that press timing remains within tolerance. Drift in shaft position — often caused by die wear or lubrication breakdown — increases cycle energy consumption as the press motor compensates for mechanical inefficiency. The 330102-00-36-05-02-05’s DC-to-10 kHz frequency response captures both the fundamental press frequency and its harmonics, giving the control system a complete picture of mechanical health at production speed. Integrated with a Bently Nevada TDXnet wireless transmission node, this data reaches the plant historian without additional field wiring, reducing installation energy and commissioning time.

RFQ-based availability for the 330102-00-36-05-02-05 is maintained to support both planned maintenance schedules and emergency replacement requirements. Each unit undergoes functional output testing and gap voltage verification prior to shipment, ensuring that the installed sensor performs to specification from day one — eliminating the unplanned downtime associated with commissioning a faulty sensor and repeating the installation process. The included warranty and support terms confirmed before quote covers manufacturing defects and provides a clear support pathway for facilities operating under ISO 50001 maintenance planning system requirements.

Product Sourcing FAQ

Q1: How does the 330102-00-36-05-02-05 contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables the 3300 Series monitoring system to detect mechanical degradation before it causes elevated motor current draw or unplanned trips. Early intervention — whether through speed adjustment via a connected VFD or scheduled bearing replacement — prevents the energy-intensive restart cycles and overtime operation that follow emergency shutdowns. Facilities using predictive maintenance programs supported by proximity monitoring typically report 5–15% reductions in maintenance-related unplanned downtime.

Q2: Is the 330102-00-36-05-02-05 compatible with modern DCS and PLC platforms beyond the Bently Nevada ecosystem?
Yes. The transducer’s output signal is a standard -24 VDC gap voltage compatible with any signal conditioning input that accepts the Bently Nevada proximitor driver standard. When paired with the 3500/42M I/O module or a TDXnet wireless node, the data is available via Modbus RTU, Modbus TCP/IP, or OPC-UA — making it directly integrable with Siemens PCS 7, Emerson DeltaV, Honeywell Experion PKS, and Rockwell FactoryTalk platforms without custom signal conversion.

Q3: What is the recommended replacement and testing procedure for this transducer in a live production environment?
Replacement should be performed during a planned maintenance window with the monitored shaft at rest. The new 330102-00-36-05-02-05 should be installed to the OEM-specified gap distance (typically 50 mil / 1.27 mm for standard 8 mm probes) and the static gap voltage verified against the driver’s calibration curve before the machine is returned to service. Each unit shipped from ZYPLC has been pre-tested for output linearity and gap voltage accuracy, reducing on-site commissioning time. Post-installation, a slow-roll vibration baseline should be recorded in System 1 before returning to full production speed.

Q4: What does the warranty and support terms confirmed before quote cover, and how is a warranty claim processed?
The warranty and support terms confirmed before quote covers manufacturing defects in materials and workmanship, including probe tip damage from manufacturing, cable insulation defects, and connector pin failures that are not attributable to installation error or field damage. To initiate a warranty claim, contact ZYPLC with the original order number, a description of the observed fault, and the gap voltage readings at the time of failure. ZYPLC will arrange for a replacement unit to be shipped and provide a return merchandise authorization (RMA) for the defective unit. Warranty support is available via the contact details below.
