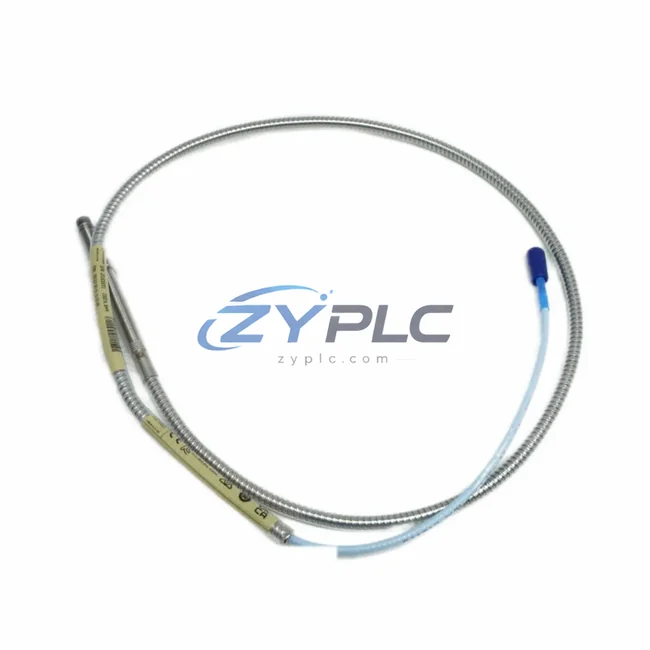

Bently Nevada 330102-02-12-50-01-CN 3300 XL Proximity Probe

Bently Nevada 330102-02-12-50-01-CN 3300 XL Proximity Probe: Replacement and Sourcing Information

The Bently Nevada 330102-02-12-50-01-CN is an 8mm eddy-current proximity probe from the industry-leading 3300 XL Series, engineered for continuous, high-resolution vibration and position monitoring in rotating machinery. In modern industrial environments where energy efficiency is no longer optional, this probe plays a foundational role in reducing unnecessary energy consumption, preventing unplanned downtime, and enabling data-driven maintenance strategies that directly lower operational costs.

Unlike passive monitoring instruments, the 330102-02-12-50-01-CN integrates into a live feedback loop. When paired with a Bently Nevada 3300 XL Extension Cable and a 3300 XL Proximitor Sensor (such as the 330180-91-00), the system delivers real-time shaft displacement data to the control layer. This data is consumed by the plant’s System 1 Condition Monitoring Software, which correlates vibration signatures with motor load profiles, enabling operators to identify inefficient operating points before they escalate into failures.

Product Specification Table

System Compatibility and Application

Effective maintenance planning in a production facility is never achieved by a single device — it requires a coordinated architecture of sensing, control, and actuation. The 330102-02-12-50-01-CN serves as the sensing layer in this hierarchy, feeding critical shaft vibration and eccentricity data upstream to the control and drive systems.

At the drive level, variable frequency drives such as the ABB ACS880 or Siemens SINAMICS G120 rely on accurate mechanical feedback to modulate motor speed in response to actual load demand. When the proximity probe detects abnormal shaft orbit patterns — a common indicator of mechanical overload — the control system can instruct the VFD to reduce output frequency, directly cutting energy draw. This closed-loop interaction between the Bently Nevada 3300 XL Proximitor and the drive layer is one of the most effective mechanisms for eliminating downtime in rotating equipment.

At the PLC layer, controllers such as the Allen-Bradley ControlLogix L73 or Siemens S7-1500 receive processed vibration alarms via Modbus TCP or PROFIBUS DP communication modules. These PLCs execute logic that adjusts setpoints, triggers load-shedding routines, or initiates controlled shutdowns — all of which prevent the energy spikes associated with uncontrolled mechanical failures. The 330102-02-12-50-01-CN is fully compatible with these communication architectures through the 3300 XL monitoring rack’s analog and digital output channels.

For power quality monitoring, the probe data complements energy meters such as the Schneider Electric PowerLogic ION7650, which tracks real-time kWh consumption at the motor control center (MCC) level. When vibration anomalies correlate with unexpected power draw increases, maintenance teams can isolate the root cause — whether mechanical imbalance, lubrication failure, or misalignment — before the motor enters an inefficient operating regime that inflates energy bills.

HMI visualization platforms, including the Siemens SIMATIC TP1200 Comfort Panel, display live vibration trends alongside energy KPIs, giving operators a unified view of machine health and power efficiency on the same screen. This integration shortens the decision loop between detection and corrective action.

Maintenance and Replacement Notes

In a typical centrifugal compressor train, shaft vibration is the earliest detectable indicator of developing faults. A bearing beginning to fail will exhibit increasing sub-synchronous vibration components weeks before thermal sensors or current monitors register any anomaly. The Bently Nevada 330102-02-12-50-01-CN, mounted at the compressor’s drive-end bearing housing, captures this early-stage vibration signature continuously.

When this data is trended in System 1 software, maintenance engineers can schedule bearing replacement during a planned production window rather than reacting to an emergency shutdown. The energy impact is significant: a failing bearing increases friction losses, forcing the motor to draw 5–15% more current to maintain the same output. Early intervention eliminates this parasitic energy consumption and avoids the thermal stress that accelerates insulation degradation in the motor windings.

On pump stations, the probe monitors shaft runout and radial position. Excessive runout caused by impeller wear or cavitation increases hydraulic losses and forces the pump to operate away from its best efficiency point (BEP). By detecting this condition early, operators can restore the pump to BEP operation — reducing energy consumption by up to 20% in severe cases — while also extending seal and bearing life.

In gearbox applications, the 330102-02-12-50-01-CN tracks gear mesh frequency components. Abnormal gear mesh patterns indicate lubrication breakdown or tooth wear, both of which increase mechanical losses and heat generation. Addressing these issues proactively keeps the gearbox operating at its rated efficiency, reducing both downtime and cooling load on the facility’s HVAC systems.

Every unit shipped from our inventory undergoes functional testing against Bently Nevada factory specifications. Stock availability is maintained to support urgent replacement requirements, and all units are dispatched with full traceability documentation. Our warranty and support terms confirmed before quote covers both the probe tip and cable assembly, ensuring that your monitoring infrastructure remains reliable throughout the warranty period.

Product Sourcing FAQ

Q1: How does the 330102-02-12-50-01-CN contribute to measurable operational stability?
By providing continuous, high-resolution shaft vibration data, this probe enables early detection of mechanical faults — such as imbalance, misalignment, and bearing wear — that cause motors and driven equipment to consume more energy than their rated efficiency requires. Correcting these faults before they worsen keeps equipment operating at its design efficiency point, directly reducing kWh consumption.

Q2: Is this probe compatible with existing 3300 XL monitoring systems?
Yes. The 330102-02-12-50-01-CN is a standard 3300 XL Series component and is fully compatible with all 3300 XL Proximitor Sensors, extension cables, and monitoring racks. It integrates without modification into existing Bently Nevada System 1 installations and supports analog output connections to third-party DCS and SCADA platforms.

Q3: What is the recommended replacement interval, and how do I verify probe condition?
Bently Nevada recommends periodic calibration verification using a calibration fixture to confirm sensitivity remains within ±1% of the rated 7.87 V/mm. In high-temperature or chemically aggressive environments, inspect the probe tip and cable jacket annually. Our team can advise on replacement scheduling based on your specific application conditions.

Q4: What does the warranty and support terms confirmed before quote cover, and what is the testing process before shipment?
Every 330102-02-12-50-01-CN unit is bench-tested for sensitivity, linearity, and output signal integrity before dispatch. The warranty and support terms confirmed before quote covers manufacturing defects and performance deviations from published specifications under normal operating conditions. Warranty claims are processed with full technical support, and Replacement timing is confirmed by RFQ to minimize your downtime.
