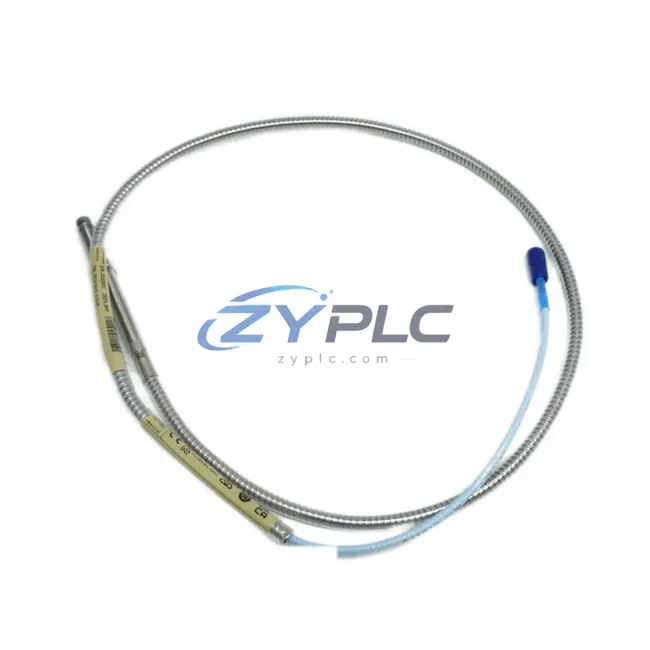

The Bently Nevada 330102-10-40-05-01-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series machinery protection platform. In modern smart factory environments, real-time shaft vibration and position data are the foundation of predictive maintenance, process transparency, and uninterrupted production. This probe serves as the critical sensing node in a continuous industrial data chain — converting mechanical displacement into precise analog signals that feed directly into Bently Nevada’s 3300 XL monitoring system, and from there into SCADA, DCS, and plant-wide asset management networks.

Designed for continuous operation in harsh industrial environments — including high-temperature, high-humidity, and chemically aggressive atmospheres — the 330102-10-40-05-01-00 delivers stable, low-noise output across its full measurement range. Its 5-meter extension cable configuration ensures flexible installation on rotating machinery such as compressors, turbines, pumps, and gearboxes, where direct access to the shaft is limited. The probe’s eddy-current sensing principle requires no physical contact with the target surface, eliminating mechanical wear and ensuring long service life with minimal maintenance intervention.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 330102-10-40-05-01-00 proximity probe is installed at the bearing housing of a high-speed rotating machine. Its analog output is routed through a Bently Nevada 330130 extension cable to a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output. This conditioned signal is then wired into a Bently Nevada 3500/42M Proximitor I/O Module housed in the 3500 Series rack — the backbone of the plant’s machinery protection system.

Within the 3500 rack, the Bently Nevada 3500/20 Rack Interface Module aggregates data from multiple I/O cards and communicates upstream via Modbus RTU or PROFIBUS DP to the plant DCS — typically a Honeywell Experion PKS or ABB System 800xA controller. At the SCADA layer, Bently Nevada System 1 Evolution software receives the vibration and position data streams, enabling real-time trending, alarm management, and predictive analytics across the entire rotating equipment fleet.

For facilities integrating legacy and modern protocols, an industrial protocol gateway — such as the Moxa MGate MB3480 or HMS Anybus Communicator — bridges Modbus RTU signals from the 3500 rack to Ethernet-based OPC-UA or EtherNet/IP networks, allowing the vibration data to flow seamlessly into MES and ERP platforms. At the field level, Pepperl+Fuchs WirelessHART adapters or Phoenix Contact FL SWITCH managed industrial Ethernet switches ensure reliable, deterministic data transport across the plant network, even in electrically noisy environments near variable frequency drives (VFDs) and high-current motor starters.

The complete data chain — from the 330102-10-40-05-01-00 probe tip to the SCADA historian — enables plant engineers to monitor shaft vibration amplitude, phase, and DC gap in real time, set multi-level alarm thresholds, and trigger automated protective shutdowns before catastrophic bearing or seal failures occur. This closed-loop data architecture is the foundation of Industry 4.0 predictive maintenance strategies in petrochemical, power generation, and heavy manufacturing facilities.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plant operations is data isolation — the condition where critical machinery health data is trapped within proprietary monitoring systems and cannot be accessed by plant-wide SCADA, MES, or ERP platforms. The Bently Nevada 330102-10-40-05-01-00, as part of the 3300 XL and 3500 Series ecosystem, directly addresses this challenge through its compatibility with open industrial communication standards.

By pairing the 330102-10-40-05-01-00 with a Bently Nevada 3500/92 Communication Gateway Module, plants can export real-time vibration and position data over Modbus TCP/IP or PROFIBUS DP — breaking down the protocol barriers that historically isolated machinery protection systems from the broader plant network. This enables production supervisors to view rotating equipment health data on the same HMI screens as process variables, eliminating the need for separate operator rounds and manual data transcription.

For remote monitoring applications — particularly in offshore platforms, remote compressor stations, and unmanned substations — the 3300 XL system’s data can be tunneled over industrial 4G/LTE routers or fiber-optic Ethernet links to centralized condition monitoring centers. This remote diagnostic capability reduces the frequency of costly site visits and enables expert engineers to analyze vibration spectra and trend data from any location, accelerating root-cause analysis and minimizing mean time to repair (MTTR).

The 330102-10-40-05-01-00 also supports production line transparency initiatives by providing continuous, timestamped vibration records that can be archived in plant historians (such as OSIsoft PI or Wonderware Historian) for long-term trend analysis, regulatory compliance reporting, and capital planning. As plants expand their rotating equipment fleets, the modular architecture of the 3300 XL and 3500 Series allows seamless addition of new monitoring channels without disrupting existing network infrastructure — ensuring the system scales with the plant’s growth.
