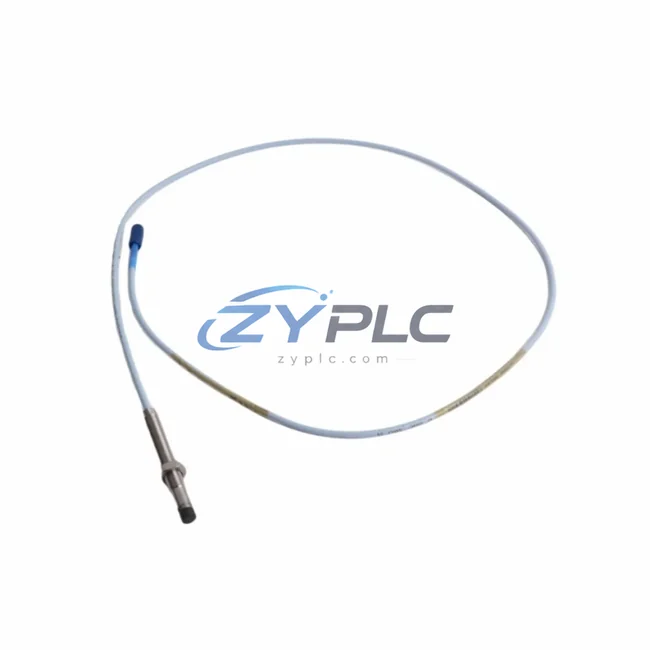

Bently Nevada 330102-36-80-10-02-05 3300 XL Proximity Transducer

Bently Nevada 330102-36-80-10-02-05 3300 XL Proximity Transducer for Optimized Automation

The Bently Nevada 330102-36-80-10-02-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered to deliver continuous, high-resolution shaft vibration and position data in demanding industrial environments. By providing real-time displacement feedback directly to your control and monitoring infrastructure, this transducer enables plant engineers to eliminate unplanned downtime risk caused by undetected rotor imbalance, misalignment, and bearing wear — conditions that silently inflate motor load and drive inefficiency across rotating machinery.

In modern maintenance-focused production facilities, every watt counts. When a turbine, compressor, or pump operates outside its optimal vibration envelope, the drive system compensates by drawing abnormal load, shortening motor life and increasing energy spend. The 330102-36-80-10-02-05 closes this feedback loop by feeding precise radial displacement signals — with a sensitivity of 7.87 mV/µm (200 mV/mil) — into the Bently Nevada 3500 Series Machinery Protection System, allowing the control layer to respond before inefficiency becomes failure.

Product Specification Table

System Compatibility and Application

The 330102-36-80-10-02-05 does not operate in isolation — it is the sensing front-end of a tightly integrated maintenance planning chain. Paired with the Bently Nevada 330130-080-00-00 Proximitor Sensor, the transducer converts raw eddy-current signals into a calibrated DC voltage output that feeds directly into the Bently Nevada 3500/40M Proximitor I/O Module, which processes shaft displacement data across multiple measurement channels simultaneously.

Within the 3500 Machinery Protection Rack, the 3500/22M Transient Data Interface captures startup and shutdown transient events — periods of peak energy draw — allowing engineers to correlate vibration spikes with drive load curves from the ABB ACS880 Variable Frequency Drive or Siemens SINAMICS S120 servo drive system. When vibration thresholds are approached, the protection system can issue trip or alarm signals to the Allen-Bradley ControlLogix L85E PLC, which coordinates load shedding or speed reduction commands to the drive, preventing the motor from sustaining high-current operation under mechanical stress.

On the data acquisition side, the transducer’s output integrates with the GE Mark VIe Turbine Control System in gas turbine applications, where shaft eccentricity data is used to modulate fuel flow and compressor inlet guide vane position — directly reducing specific fuel consumption during part-load operation. For facilities running Emerson DeltaV DCS or Honeywell Experion PKS, the 3500 rack communicates over Modbus TCP or OPC-UA, enabling the historian to log vibration trends alongside energy meter data from Schneider Electric PowerLogic ION9000 power quality meters, creating a unified energy and condition monitoring dataset.

In motor-driven pump and fan applications, the 330102-36-80-10-02-05 works alongside Bently Nevada TK-3 Velomitor Velocity Sensors to provide both displacement and velocity spectra, giving maintenance teams a complete picture of mechanical health without requiring additional wiring infrastructure. This dual-parameter approach is particularly effective when integrated with Rockwell Automation FactoryTalk AssetCentre for automated work order generation triggered by vibration alarm events.

Maintenance and Replacement Notes

Consider a petrochemical facility running six centrifugal compressor trains, each driven by a 2 MW induction motor controlled by a variable frequency drive. Without continuous shaft monitoring, operators rely on periodic manual checks — a practice that allows sub-threshold imbalance and bearing degradation to persist for weeks, during which the drive compensates by increasing output frequency and current to maintain process flow targets. The result is measurable unplanned downtime: a 3% increase in motor current draw sustained over 720 operating hours per month translates to tens of thousands of operating-hours of avoidable consumption per train.

Installing the 330102-36-80-10-02-05 on each compressor’s non-drive end bearing journal, connected to the 3500 rack via the 330130 Proximitor, enables the control system to detect the onset of rotor bow or bearing clearance increase within microns of displacement change. The 3500/40M module issues a pre-alarm to the ControlLogix PLC, which commands the ACS880 VFD to reduce speed by 5–8% — enough to bring vibration within the ISO 10816 acceptance zone while maintaining process throughput within acceptable limits. This closed-loop response eliminates the energy penalty of compensatory over-driving and extends bearing and seal life, reducing the frequency of planned maintenance outages.

On paper machine and rolling mill lines, where production rhythm (line speed and tension) is tightly coupled to motor torque demand, the 330102-36-80-10-02-05 provides the shaft position reference that allows the SINAMICS S120 multi-axis drive system to synchronize torque distribution across driven rolls. Uneven torque sharing — often caused by undetected shaft runout — forces individual drive sections to operate at higher current setpoints, increasing both operating load and thermal stress on the drive’s IGBT modules. Continuous proximity monitoring corrects this by providing the feedback needed to trim torque references in real time, flattening the current profile across the drive system and reducing aggregate energy draw by measurable percentages during steady-state production.

For facilities with maintenance planning systems certified to ISO 50001, the vibration data from the 330102-36-80-10-02-05 serves as a key performance indicator input: rising vibration amplitude on a motor-driven asset is flagged as an energy efficiency deviation, triggering a maintenance work order before the asset’s specific operating load (kWh per unit of output) exceeds the established baseline. This integration between condition monitoring and maintenance planning closes the loop between mechanical health and operational efficiency in a way that periodic inspection programs cannot match.

All units supplied by ZYPLC are tested prior to shipment, with functional verification of output sensitivity, linearity, and cable continuity. Stock is maintained for prompt dispatch, and each unit is covered by a warranty terms confirmed during quotation against manufacturing defects, ensuring your production line stays protected from the moment of installation.

Product Sourcing FAQ

Q1: How does the 330102-36-80-10-02-05 contribute to measurable operational stability on rotating machinery?
By providing continuous, high-resolution shaft displacement data, this transducer enables the control system to detect mechanical inefficiencies — such as rotor imbalance, misalignment, or bearing wear — before they cause the drive to compensate with abnormal load. Early detection allows speed or load adjustments that keep the motor operating within its optimal efficiency band, reducing operating load without sacrificing process output.

Q2: Is the 330102-36-80-10-02-05 compatible with existing Bently Nevada 3500 and 3300 Series monitoring racks?
Yes. The 330102-36-80-10-02-05 is fully compatible with the Bently Nevada 3500 Series Machinery Protection System and the 3300 Series monitoring platform. It uses the standard Proximitor interface (330130 Series) and outputs a calibrated DC voltage signal that is directly accepted by 3500/40M and equivalent I/O modules without additional signal conditioning.

Q3: What is the recommended replacement or upgrade path if the existing proximity transducer is showing drift or sensitivity loss?
If your existing 3300 XL transducer is exhibiting sensitivity drift beyond ±5% of the nominal 200 mV/mil, replacement with the 330102-36-80-10-02-05 is recommended. Before replacement, verify that the Proximitor sensor (330130 Series) and extension cable are also within specification, as cable resistance changes and Proximitor aging can contribute to apparent transducer drift. ZYPLC can supply matched transducer-Proximitor sets for simultaneous replacement.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each 330102-36-80-10-02-05 unit undergoes functional output testing, sensitivity verification, and cable continuity checks prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects in the transducer body, cable assembly, and connector. It does not cover damage resulting from installation errors, operation outside specified environmental limits, or mechanical impact. Warranty claims are processed directly through ZYPLC with replacement units dispatched from available stock.
