Bently Nevada 330103-00-02-05-02-05 Proximity Transducer

Bently Nevada 330103-00-02-05-02-05 Proximity Transducer: Replacement and Sourcing Information for 3300 XL Automation

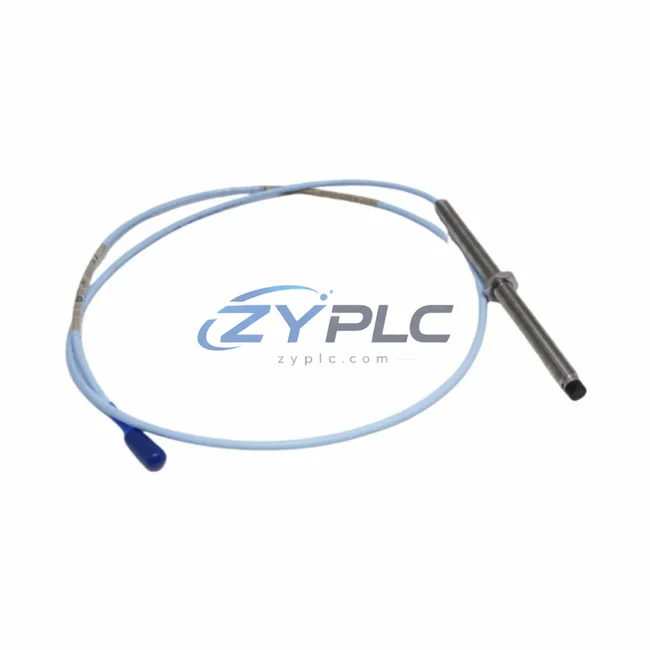

The Bently Nevada 330103-00-02-05-02-05 is an 8mm proximity transducer engineered for the 3300 XL Series condition monitoring platform. Designed for continuous, non-contact vibration and position measurement in rotating machinery, this transducer plays a critical role in reducing unplanned downtime risk across turbomachinery, compressors, pumps, and motor-driven production lines. By delivering real-time shaft displacement data with exceptional signal fidelity, it enables control systems to respond dynamically — eliminating the unplanned downtime associated with undetected imbalance, misalignment, and bearing degradation.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to monitor machine health at the sensor level is foundational to any maintenance planning strategy. The 330103-00-02-05-02-05 integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor and the System 1 Condition Monitoring Software, forming a closed-loop feedback architecture that continuously evaluates machine state and feeds actionable data to the plant’s control layer.

Product Specification Table

System Compatibility and Application

The 330103-00-02-05-02-05 does not operate in isolation — it is the sensing front-end of a layered industrial automation system. In a typical high-efficiency plant configuration, the transducer feeds shaft vibration and eccentricity data to the Bently Nevada 3300 XL Proximitor Sensor (330180-91-05), which conditions the signal and transmits it to the Bently Nevada 3500/22M Transient Data Interface for high-speed transient capture during machine startups and coastdowns — the periods of highest energy demand.

At the control execution layer, the conditioned vibration signal integrates with Rockwell Automation ControlLogix PLCs or Siemens S7-1500 series controllers via standard 4–20 mA analog I/O modules or Modbus RTU/TCP communication cards. This allows the PLC to implement protective logic — automatically reducing load or initiating a controlled shutdown when vibration thresholds are exceeded, preventing the energy-intensive consequences of catastrophic failure.

For drive-level energy regulation, the vibration data from the 330103-00-02-05-02-05 can inform speed reference adjustments on ABB ACS880 variable frequency drives or Siemens SINAMICS G120 drives, enabling the motor control system to modulate output torque and speed in response to actual machine condition rather than fixed schedules. This dynamic adjustment directly reduces kWh consumption during periods of low mechanical load.

At the monitoring and visualization layer, the Bently Nevada System 1 Software aggregates data from multiple 330103-series transducers across a machine train, presenting trend plots, spectrum analysis, and alarm states on operator HMI screens — typically Siemens SIMATIC HMI TP1200 Comfort or equivalent panels. Power quality data from Schneider Electric PowerLogic ION7650 power meters can be overlaid with vibration trends to correlate energy spikes with mechanical events, enabling root-cause energy analysis at the asset level.

For facilities running PROFIBUS DP or PROFINET communication backbones, the 3300 XL system’s gateway modules allow seamless integration into existing plant networks without additional signal conversion hardware, reducing both installation cost and communication latency in the control loop.

Maintenance and Replacement Notes

In continuous process industries — petrochemical, power generation, pulp and paper, and heavy manufacturing — rotating machinery accounts for 60–70% of total facility operating load. A single degraded bearing or misaligned shaft coupling can increase a motor’s energy draw by 5–15% before any audible or thermal symptom becomes apparent. The Bently Nevada 330103-00-02-05-02-05 detects these conditions at the micron level, long before they manifest as measurable efficiency losses at the drive or power meter.

In practical terms, a plant operating a 500 kW compressor train with undetected rotor imbalance may be consuming an additional 25–75 kW continuously. Over a 6-month period before a scheduled maintenance window, this represents tens of thousands of kWh in avoidable energy expenditure. By integrating the 330103-00-02-05-02-05 into the machine’s protection system and connecting its output to the plant’s maintenance planning platform, maintenance teams receive early warning — typically weeks or months in advance — allowing corrective action to be scheduled during planned downtime rather than emergency response.

Beyond operational stability, the reduction in unplanned downtime directly improves Overall Equipment Effectiveness (OEE). Production lines that maintain consistent machine health through continuous proximity monitoring achieve higher throughput per unit of energy consumed — a key metric in lean manufacturing and ISO 50001 maintenance planning frameworks. The non-contact measurement principle of the eddy-current transducer also means zero sensor-induced friction, zero lubrication requirement, and zero mechanical wear — contributing to a lower total cost of ownership over the product’s operational life.

All units are sourced from verified supply channels, undergo functional output testing prior to shipment, and are backed by a warranty terms confirmed during quotation. RFQ-confirmed availability supports rapid deployment for both planned upgrades and emergency replacement scenarios, minimizing the energy and production losses associated with extended lead times.

Product Sourcing FAQ

Q1: How does the 330103-00-02-05-02-05 contribute to measurable operational stability?
By providing continuous, high-resolution shaft vibration data, this transducer enables early detection of mechanical faults — imbalance, misalignment, looseness — that cause motors and drives to consume excess energy. Integrating its output with VFD control logic or DCS alarm management allows the plant to correct these conditions before they escalate into significant unplanned downtime or unplanned downtime.

Q2: Is this transducer compatible with non-Bently Nevada control systems?
Yes. The 3300 XL Proximitor Sensor paired with the 330103-00-02-05-02-05 outputs a standard DC voltage signal (typically –24 VDC bias with linear range output) that can be read by any PLC or DCS analog input card. With appropriate signal conditioning or gateway modules, integration with Siemens, Rockwell, Yokogawa, and Honeywell control platforms is fully supported.

Q3: Can this unit replace an existing 330103-series transducer without recalibration?
In most cases, yes — provided the replacement unit matches the cable length, gap voltage, and target material specifications of the original installation. The 330103-00-02-05-02-05 is a direct form-fit-function replacement within the 3300 XL ecosystem. We recommend verifying the Proximitor gap voltage after installation using a calibrated DC voltmeter to confirm the transducer is operating within its linear range.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
Every 330103-00-02-05-02-05 unit shipped by ZYPLC undergoes pre-shipment functional testing, including output sensitivity verification and insulation resistance checks. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are traceable to verified supply sources, and our technical team provides post-sale support for installation, commissioning, and system integration queries.
