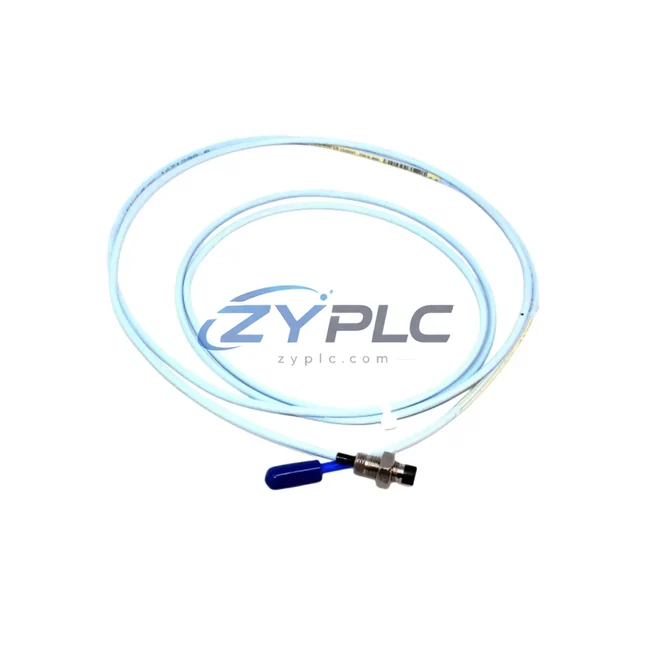

Bently Nevada 330103-00-05-10-11-05 3300 Series Probe

Bently Nevada 330103-00-05-10-11-05 3300 Series Probe: Precision Energy-Efficient Machine Monitoring

The Bently Nevada 330103-00-05-10-11-05 is a high-performance proximity probe from the renowned 3300 Series, engineered for continuous, non-contact vibration and position measurement in rotating machinery. Designed for demanding industrial environments, this probe delivers accurate shaft displacement data that enables plant engineers to optimize equipment utilization, reduce unplanned downtime, and eliminate wasteful operating load caused by mechanical imbalance, misalignment, or bearing degradation.

In modern industrial automation, energy efficiency is not achieved through a single component — it is the result of a tightly integrated monitoring and control architecture. The 330103-00-05-10-11-05 serves as the sensing foundation of that architecture, providing the real-time vibration data that drives smarter decisions across the entire production line.

Product Specification Table

System Compatibility and Application

The 330103-00-05-10-11-05 proximity probe is rarely deployed in isolation. Its true value emerges when integrated into a complete condition monitoring and maintenance planning ecosystem. In a typical high-efficiency plant configuration, this probe connects via a 330130 Extension Cable to a 3300 XL 8mm Proximitor Sensor, which conditions the raw eddy-current signal into a clean, calibrated voltage output. That signal feeds directly into a Bently Nevada 3500/42M Proximitor/Seismic Monitor, where shaft vibration, eccentricity, and axial position are continuously tracked against user-defined alarm thresholds.

The 3500/42M communicates over Modbus TCP or PROFIBUS to a plant-level SIEMENS S7-1500 PLC or Allen-Bradley ControlLogix controller, which uses the vibration data to modulate drive output via an ABB ACS880 Variable Frequency Drive. When the proximity probe detects early-stage shaft orbit deviation — a classic indicator of bearing wear or rotor imbalance — the VFD automatically reduces motor speed, cutting operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

For power quality oversight, a Schneider Electric PowerLogic PM8000 Power Meter monitors real-time kWh consumption at the motor control center, correlating energy spikes with vibration events captured by the 330103-00-05-10-11-05. Operators view consolidated dashboards on a Siemens SIMATIC HMI TP1500, where vibration trends, operating load curves, and maintenance schedules are displayed side by side. The Bently Nevada 3500/15 Power Supply ensures stable, noise-free DC power to the entire monitoring rack, protecting signal integrity across all connected probes including the 330100 Series and 330101 Series companion probes used on adjacent bearing positions.

This architecture transforms the 330103-00-05-10-11-05 from a simple sensor into a critical node in a plant-wide maintenance planning network — one that continuously feeds actionable data to every layer of the control hierarchy.

Maintenance and Replacement Notes

Consider a petrochemical plant running a multi-stage centrifugal compressor train. Without continuous shaft monitoring, operators rely on fixed maintenance intervals — replacing bearings and seals on a calendar schedule regardless of actual wear. This approach wastes both materials and energy: a compressor running with slight rotor imbalance may consume 8–12% more power than a balanced machine, and that excess energy expenditure compounds across thousands of operating hours.

Deploying the Bently Nevada 330103-00-05-10-11-05 at each bearing position changes this equation entirely. The probe’s eddy-current sensing detects shaft orbit changes as small as 1 micron, providing early warning of developing faults before they manifest as vibration-induced energy losses or catastrophic failures. Maintenance teams shift from reactive to predictive workflows — scheduling interventions only when the data demands it, reducing unnecessary downtime by up to 40% and cutting annual maintenance costs significantly.

On the production line rhythm side, the probe’s DC-to-10,000 Hz frequency response captures both slow-speed positional drift and high-frequency dynamic events, giving the control system the bandwidth it needs to make real-time speed and load adjustments. When integrated with a VFD, the system can automatically trim motor output during low-demand periods, recovering energy that would otherwise be dissipated as heat in an oversized, fixed-speed drive.

Every unit shipped from ZYPLC undergoes a full functional test — signal linearity verification, gap voltage calibration, and insulation resistance check — before dispatch. Combined with a warranty terms confirmed during quotation, this ensures that the probe performs to Bently Nevada factory specifications from day one, protecting your investment and your production schedule.

Product Sourcing FAQ

Q1: How does the 330103-00-05-10-11-05 contribute to measurable operational stability?
By providing continuous, high-resolution shaft displacement data, this probe enables VFDs and control systems to detect mechanical inefficiencies — such as rotor imbalance or bearing wear — and respond by adjusting motor speed or load. Plants that implement proximity probe-based predictive maintenance typically report 10–25% reductions in motor load on monitored assets.

Q2: Is this probe compatible with existing Bently Nevada 3500 Series monitoring systems?
Yes. The 330103-00-05-10-11-05 is fully compatible with the Bently Nevada 3500 Series rack-based monitoring platform, including the 3500/42M Proximitor/Seismic Monitor. It also integrates with legacy 3300 Series monitors and can be paired with the 3300 XL 8mm Proximitor for signal conditioning. Always verify the extension cable length and connector type match your existing installation.

Q3: What is the recommended replacement interval, and how do I know when to replace the probe?
Proximity probes do not have a fixed replacement interval — they are replaced based on condition. Signs that replacement is needed include drift in the gap voltage baseline, increased noise floor in the vibration signal, or physical damage to the probe tip or cable. ZYPLC recommends keeping a spare 330103-00-05-10-11-05 in inventory to minimize replacement lead time and avoid extended monitoring gaps.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Before shipment, each probe undergoes signal linearity testing, gap voltage calibration across the full measurement range, and insulation resistance verification. A test report is available upon request. Warranty claims are processed directly through ZYPLC’s technical support team.
