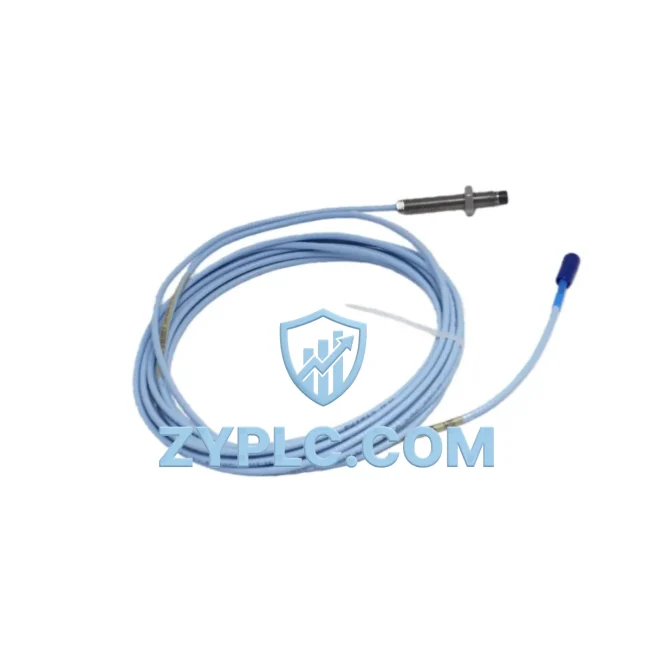

Bently Nevada 330103-00-06-50-01-00 Proximity Probe for 3300 XL Systems

Bently Nevada 330103-00-06-50-01-00: Industrial Data Link for 3300 XL Smart Factory Connectivity

The Bently Nevada 330103-00-06-50-01-00 is a high-precision eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery environments. As a core sensing node within the Bently Nevada 3300 XL Series condition monitoring architecture, this probe delivers real-time analog signal output that feeds directly into the plant-wide industrial data network — bridging the gap between physical machine behavior and digital control intelligence. In smart factory deployments, the 330103-00-06-50-01-00 functions as the first link in a critical data chain: raw vibration displacement signals are captured at the shaft, transmitted through matched extension cables and signal conditioners, and then digitized by the 3300 XL monitor rack before being forwarded upstream to DCS, SCADA, and HMI platforms for real-time visualization, alarm management, and predictive maintenance decision-making.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated industrial automation environment, the 330103-00-06-50-01-00 proximity probe operates as the sensing front-end of a layered data acquisition and transmission architecture. The probe is installed radially or axially against a rotating shaft, generating a continuous analog voltage signal proportional to the gap distance — capturing shaft vibration, eccentricity, and axial position with sub-micron resolution.

This raw signal travels through a matched Bently Nevada 330130 extension cable to the 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which conditions and linearizes the output before feeding it into the 3300/16 or 3500/42 Monitor Module housed in the rack system. The monitor module performs real-time signal processing — applying alert and danger setpoints — and outputs both relay contact signals for emergency shutdown logic and 4–20 mA analog signals for integration with the plant DCS (Distributed Control System).

From the DCS layer, vibration data is forwarded via Modbus TCP/IP or OPC-UA communication gateways to the plant SCADA server, where operators monitor shaft vibration trends across multiple machines simultaneously. HMI panels — such as those running on GE iFIX, Wonderware InTouch, or Siemens WinCC — display real-time vibration waveforms, orbit plots, and alarm states, enabling operators to detect developing faults before they escalate to catastrophic failure.

For remote diagnostic capability, edge computing gateways — such as the Bently Nevada System 1 Evolution software platform — aggregate data from multiple 3300 XL and 3500 Series racks across the plant, enabling cloud-connected predictive analytics, remote vibration spectrum analysis, and automated maintenance scheduling. In multi-machine installations, the 330103-00-06-50-01-00 probe works alongside Bently Nevada 330500 velocity sensors, 330900 accelerometers, and 3300 XL 8mm proximity transducer systems to provide a complete vibration signature across all measurement axes.

The probe’s compatibility with the broader Bently Nevada 3500 Series Machinery Protection System also allows seamless migration paths for plants upgrading from legacy 3300 XL racks to the newer 3500 platform, ensuring investment protection and continuous data continuity across system generations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plant operations is data isolation — where critical machine health information remains trapped within proprietary monitoring systems, inaccessible to the broader plant automation network. The Bently Nevada 330103-00-06-50-01-00 proximity probe, when deployed within the 3300 XL system architecture, directly addresses this challenge by serving as the physical sensing foundation for a fully networked condition monitoring solution.

Plants operating legacy vibration monitoring systems often face protocol fragmentation: vibration data exists in one silo, process data in another, and safety system data in a third — with no unified view available to operations or maintenance teams. By integrating the 330103-00-06-50-01-00 into a 3300 XL rack connected to a Modbus RTU/TCP or OPC-UA gateway, plant engineers can bridge vibration data into the main DCS or SCADA historian, creating a single unified data stream that correlates machine health with process variables such as temperature, pressure, and flow rate.

Remote monitoring capability is another critical benefit. In geographically distributed facilities — offshore platforms, pipeline compressor stations, or multi-site manufacturing plants — the ability to remotely access real-time vibration data without dispatching field technicians represents significant operational cost savings. The 330103-00-06-50-01-00, as part of a networked 3300 XL system, enables remote diagnostics through the Bently Nevada System 1 software, allowing vibration specialists to analyze shaft behavior, review historical trends, and issue maintenance recommendations from any location.

Production line transparency is further enhanced through alarm rationalization: the 3300 XL monitor rack connected to this probe can be configured to generate tiered alerts — early warning, alert, and danger — that are automatically propagated through the SCADA alarm management system, ensuring that the right personnel receive the right information at the right time. This eliminates the reactive maintenance culture that leads to unplanned downtime and replaces it with a data-driven predictive maintenance strategy that maximizes machine availability and extends equipment service life.

System scalability is built into the 3300 XL architecture: additional probes, velocity sensors, and temperature inputs can be added to the monitoring rack without disrupting existing measurements, allowing the condition monitoring network to grow alongside the plant’s operational needs.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330103-00-06-50-01-00 system support for SCADA integration?
The 330103-00-06-50-01-00 proximity probe outputs an analog DC voltage signal to the 3300 XL Proximitor® Sensor and monitor rack. The monitor rack provides relay outputs and 4–20 mA analog outputs that can be connected to DCS I/O modules. For digital SCADA integration, the 3300 XL system supports Modbus RTU/TCP communication via compatible gateway modules, and the Bently Nevada System 1 software platform supports OPC-UA for historian and SCADA connectivity. This ensures compatibility with major SCADA platforms including OSIsoft PI, Wonderware, and Ignition.

Q2: How does the 330103-00-06-50-01-00 ensure network stability and signal integrity in high-EMI industrial environments?
The eddy-current sensing technology used in the 330103-00-06-50-01-00 is inherently immune to electromagnetic interference, as it operates on magnetic field principles rather than electrical contact. The coaxial cable assembly provides shielded signal transmission, minimizing noise pickup from variable frequency drives (VFDs), high-voltage switchgear, and other EMI sources common in industrial environments. The 3300 XL Proximitor® Sensor further conditions the signal before transmission, ensuring a clean, stable analog output regardless of plant electrical noise conditions.

Q3: Can the Bently Nevada 330103-00-06-50-01-00 be integrated into an existing 3500 Series Machinery Protection System?
The 330103-00-06-50-01-00 is designed for the 3300 XL transducer system and is not directly interchangeable with 3500 Series probes, which use a different sensitivity specification (200 mV/mil vs. 100 mV/mil for 3300 XL). However, with appropriate signal conditioning and system configuration, vibration data from 3300 XL probes can be integrated into a plant-wide condition monitoring network alongside 3500 Series systems using the Bently Nevada System 1 software platform. For direct 3500 Series compatibility, the equivalent 3500 Series proximity probe should be specified.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every Bently Nevada 330103-00-06-50-01-00 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm signal output linearity, sensitivity calibration, and connector integrity. Units are shipped with appropriate protective packaging to prevent transit damage. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimize plant downtime. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for warranty registration and support.
