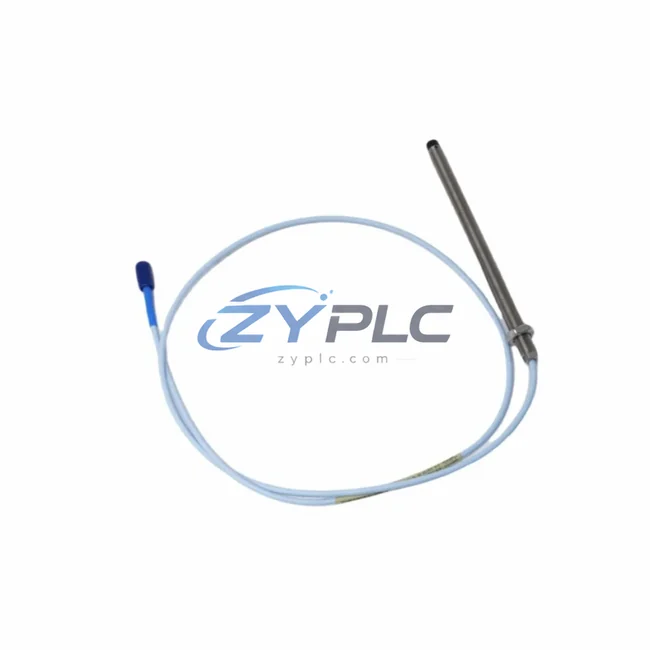

The Bently Nevada 330103-00-10-15-02-05 is an 8mm eddy-current proximity transducer engineered as part of the industry-proven 3300 XL series — a platform specifically designed to deliver continuous, high-resolution shaft vibration and position data with minimal power draw. In modern industrial facilities where energy accountability is no longer optional, this transducer plays a foundational role in reducing unplanned downtime risk by enabling real-time condition monitoring that prevents over-running machinery, eliminates reactive maintenance cycles, and supports precision motor control decisions across rotating equipment.

Unlike conventional vibration sensors that simply report fault events, the 330103-00-10-15-02-05 feeds live displacement data into the broader Bently Nevada 3300 XL monitoring system, allowing plant engineers to correlate shaft behavior with energy draw patterns. When a rotor begins to exhibit abnormal orbital motion or bearing wear, the system flags the deviation before it escalates — enabling targeted corrective action rather than unplanned shutdowns that waste both energy and production capacity.

Product Specification Table

System Compatibility and Application

The 330103-00-10-15-02-05 transducer does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical high-efficiency plant configuration, this transducer is paired with the Bently Nevada 3300 XL Proximitor Sensor (driver module) to condition the raw eddy-current signal into a calibrated voltage output. That signal is then routed to a Bently Nevada 3500/42M Proximitor/Seismic Monitor card housed in a 3500 Series Rack, which performs real-time alarm processing and communicates fault states to the plant DCS or SCADA layer.

On the control execution side, the vibration data informs decisions made by Allen-Bradley PowerFlex 755 variable frequency drives or equivalent VFDs managing the motor loads on the monitored shaft. When vibration thresholds approach alarm levels, the control system can automatically reduce motor speed via the VFD — cutting operating load proportionally to the cube of speed reduction — rather than allowing the machine to continue running at full load under degraded conditions. This closed-loop interaction between the proximity transducer, the monitor rack, and the drive system is one of the most effective operational-efficiency strategies available in rotating equipment management.

For facilities running Siemens S7-1500 PLCs or Rockwell Automation ControlLogix platforms, the 3500 Series monitor integrates via Modbus TCP or PROFIBUS DP communication modules, feeding vibration health data directly into the PLC’s maintenance planning logic. Complementary Bently Nevada 3500/61 Temperature Monitor modules and 3500/40M Proximitor Monitor cards can be co-installed in the same rack to build a comprehensive machine health picture without adding separate wiring infrastructure — reducing both installation energy overhead and long-term maintenance labor.

At the field I/O level, Phoenix Contact MINI MCR signal conditioners or equivalent DIN-rail isolators are commonly used to protect the transducer signal chain from ground loops and EMI interference in high-power motor environments — preserving measurement accuracy and preventing false alarms that would otherwise trigger unnecessary equipment shutdowns. On the HMI layer, operators interact with live vibration trend data through Wonderware InTouch or GE iFIX SCADA displays, enabling shift engineers to make informed load-balancing decisions that directly reduce peak energy demand.

Maintenance and Replacement Notes

In a petrochemical plant running multiple centrifugal compressor trains, deploying the Bently Nevada 330103-00-10-15-02-05 as the primary shaft displacement sensor on each compressor stage delivers measurable energy and operational benefits. The non-contact eddy-current measurement principle means the transducer itself consumes negligible power — typically less than 25 mA from the Proximitor driver supply — while providing continuous 24/7 monitoring that would otherwise require periodic manual vibration checks consuming technician time and portable instrument battery resources.

More significantly, the early warning capability of the 3300 XL system allows maintenance teams to schedule bearing replacements, seal inspections, and alignment corrections during planned outage windows rather than responding to catastrophic failures. A single avoided unplanned shutdown on a large compressor train can represent tens of thousands of operating-hours of wasted energy from emergency restart sequences, purge cycles, and production recovery operations. The 330103-00-10-15-02-05, as the data source for that early warning, is therefore a direct contributor to the plant’s energy efficiency KPIs.

On motor-driven pump systems, the transducer’s high-resolution displacement data enables engineers to detect impeller imbalance and cavitation signatures before they cause efficiency degradation. A pump operating with even minor rotor imbalance can consume 3–8% more energy than a balanced unit at the same flow rate. By identifying and correcting these conditions early — guided by the 330103-00-10-15-02-05 measurement data — facilities can recover that energy loss across entire pump fleets, compounding savings across the production line.

For production lines with tight cycle-time requirements, the continuous shaft position data from this transducer also supports production rhythm optimization. By confirming that rotating equipment is operating within its designed mechanical envelope, process engineers can safely push throughput rates toward design limits without risking mechanical damage — maximizing equipment utilization and reducing the energy cost per unit of output. All units are tested before shipment, with full functional verification against 3300 XL system specifications, and are backed by a warranty terms confirmed during quotation covering both parts and performance.

Product Sourcing FAQ

Q1: How does the 330103-00-10-15-02-05 contribute to operational stability in a rotating equipment application?
By providing continuous, high-resolution shaft displacement data, this transducer enables predictive maintenance strategies that eliminate unplanned shutdowns, reduce emergency restart operating load, and allow VFD-based motor speed optimization based on real mechanical health status — directly reducing unplanned downtime across the equipment lifecycle.

Q2: Is the 330103-00-10-15-02-05 compatible with both legacy 3300 XL systems and newer 3500 Series racks?
Yes. The 330103-00-10-15-02-05 is designed for the 3300 XL Proximitor driver ecosystem and is also compatible with 3500 Series monitor inputs when used with the appropriate driver module. It integrates with System 1 software for advanced diagnostics and energy trend analysis.

Q3: What is the recommended replacement interval, and how does timely replacement reduce energy costs?
Bently Nevada recommends replacing proximity transducers showing sensitivity drift or cable degradation rather than operating with compromised measurement accuracy. A transducer providing inaccurate data can mask developing mechanical faults, leading to equipment operating in inefficient states longer than necessary. Replacing with a tested 330103-00-10-15-02-05 unit restores full monitoring integrity and supports optimal maintenance planning decisions.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every 330103-00-10-15-02-05 unit undergoes functional testing against Bently Nevada 3300 XL system specifications before shipment, including sensitivity verification, gap voltage calibration check, and cable continuity confirmation. The warranty terms confirmed during quotation covers manufacturing defects and performance deviations from published specifications, ensuring your monitoring system maintains its maintenance planning capability from day one of installation.
