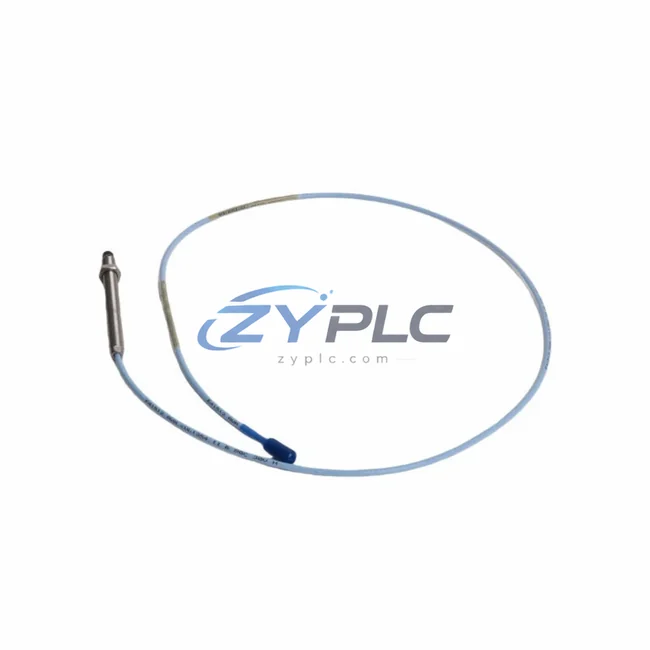

Bently Nevada 330103-00-15-05-02-CN Proximity Transducer

Bently Nevada 330103-00-15-05-02-CN Proximity Transducer: Replacement and Sourcing Information for 3300 XL Automation

The Bently Nevada 330103-00-15-05-02-CN is a high-performance proximity transducer engineered for the 3300 XL Series machinery protection and condition monitoring platform. Designed for continuous, non-contact measurement of shaft vibration, radial position, and axial displacement, this transducer plays a critical role in reducing unplanned downtime risk across rotating machinery systems. By delivering real-time, high-resolution displacement data directly to the monitoring system, it enables plant engineers to detect mechanical inefficiencies before they escalate into costly failures — keeping motors, compressors, turbines, and pumps operating at their optimal energy efficiency point.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to monitor shaft behavior with micron-level accuracy translates directly into measurable operational stability. The 330103-00-15-05-02-CN integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor and the broader System 1 condition monitoring software platform, enabling a closed-loop feedback architecture that continuously evaluates machine health and drives corrective action before unplanned downtime compounds.

Every unit is sourced from verified supply channels, undergoes pre-shipment functional testing, and is backed by a warranty terms confirmed during quotation. Stock is available for shipment arranged after confirmation, supporting urgent maintenance schedules and minimizing unplanned downtime on critical production lines.

Product Specification Table

System Compatibility and Application

The 330103-00-15-05-02-CN transducer is not a standalone component — it is the sensing foundation of an industrial automation system. In a typical high-efficiency drive train monitoring setup, this transducer works in concert with the Bently Nevada 3300 XL Proximitor Sensor (330180-91-05), which conditions the raw eddy-current signal into a calibrated voltage output readable by the protection rack. That signal feeds into the Bently Nevada 3500/42M Proximitor Monitor, a dual-channel module that processes vibration and position data in real time and triggers alarms or shutdowns when thresholds are exceeded — preventing motors from running in destructive, energy-wasting vibration states.

On the control side, the monitoring data integrates with System 1 Evolution software, which aggregates machine health data across the plant and provides trend analysis for predictive maintenance scheduling. When combined with a Bently Nevada 3500/22M Transient Data Interface, engineers gain access to transient capture capabilities that reveal startup and shutdown energy profiles — critical for identifying inefficient operating windows in variable-speed drive applications.

For facilities running variable frequency drives (VFDs) on large motors, the vibration data from the 330103-00-15-05-02-CN can be used to fine-tune drive speed setpoints, avoiding resonance zones that cause abnormal load draw. This data loop — from the proximity transducer through the Proximitor, into the monitor rack, and up to the SCADA or DCS layer — forms the backbone of an energy-optimized motor control strategy. Integration with Rockwell Automation ControlLogix PLCs or Siemens S7-300/S7-400 controllers via Modbus or PROFIBUS allows the vibration alarm states to trigger automated load shedding or speed reduction commands, directly cutting operating load during fault conditions.

Power quality on the sensor supply rail is equally important. Deploying a Phoenix Contact QUINT Power 24VDC supply with active power boost ensures the transducer receives stable, clean DC power, eliminating signal noise that could cause false alarms and unnecessary machine trips. On the I/O side, Bently Nevada 3500/20 Rack Interface Module manages communication between the monitoring rack and the plant DCS, ensuring that energy-related alarm data reaches operators without latency.

For plants implementing ISO 13373 or ISO 10816 vibration standards as part of their maintenance planning framework (aligned with ISO 50001), the 330103-00-15-05-02-CN provides the measurement traceability required for compliance reporting, supporting both internal energy audits and third-party verification processes.

Maintenance and Replacement Notes

In a petrochemical plant running a multi-stage centrifugal compressor train, undetected shaft misalignment can increase motor current draw by 8–15% above baseline — a significant energy penalty that accumulates continuously until the fault is corrected or the machine fails. The Bently Nevada 330103-00-15-05-02-CN proximity transducer, mounted at the drive-end and non-drive-end bearing housings, provides the continuous radial vibration and shaft centerline data needed to detect this misalignment in its earliest stages. Maintenance teams can then schedule corrective alignment during planned downtime rather than reacting to an emergency shutdown, preserving both energy efficiency and production throughput.

In power generation applications — gas turbines, steam turbines, and hydro generators — axial position monitoring via this transducer prevents thrust bearing overload conditions that not only damage hardware but force the machine to operate at reduced efficiency for extended periods. By maintaining shaft position within the optimal operating band, the turbine maintains its designed thermodynamic efficiency, directly reducing fuel consumption per megawatt-hour generated.

For pump systems in water treatment or chemical processing, the transducer’s vibration data feeds into predictive maintenance algorithms that identify impeller wear, cavitation onset, and bearing degradation. Each of these conditions, if left unaddressed, causes the pump to draw more power for the same flow output — a hidden energy cost that the 330103-00-15-05-02-CN helps eliminate by enabling condition-based maintenance rather than time-based replacement cycles.

Across all these applications, the result is a measurable reduction in mean time between failures (MTBF) improvement, lower maintenance labor costs, reduced spare parts consumption, and — most importantly — a sustained reduction in energy intensity per unit of production output. All units are pre-shipment tested to confirm signal linearity and sensitivity, ensuring that the transducer performs to specification from day one of installation, with full coverage under the warranty terms confirmed during quotation.

Product Sourcing FAQ

Q1: How does the 330103-00-15-05-02-CN contribute to measurable operational stability on a production line?
By providing continuous, high-resolution shaft vibration and position data, this transducer enables early detection of mechanical faults — misalignment, imbalance, bearing wear — that cause motors and driven equipment to draw abnormal load. Correcting these faults promptly, guided by the transducer’s data, directly reduces operating load and prevents the compounding losses associated with degraded machine performance.

Q2: Is the 330103-00-15-05-02-CN compatible with existing 3300 XL and 3500 Series monitoring racks?
Yes. The 330103-00-15-05-02-CN is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor system and integrates with the 3500 Series protection rack via standard extension cable assemblies. It is also compatible with System 1 software for data trending and alarm management. Always verify cable length and connector configuration against your specific rack slot requirements before installation.

Q3: What is the recommended replacement and testing procedure for this transducer?
Replacement should follow the Bently Nevada installation and maintenance manual for the 3300 XL series. Prior to installation, each unit undergoes functional output testing to verify sensitivity (mV/mil or mV/µm) and linearity across the measurement range. After installation, a static gap voltage check and dynamic runout measurement should be performed to confirm correct positioning. All units supplied by ZYPLC are pre-tested and ship with documentation confirming test results.

Q4: What does the warranty terms confirmed during quotation cover, and what is the support process?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, ZYPLC provides replacement or repair support. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty claim. We maintain inventory stock to support fast replacement dispatch, minimizing your production line downtime.
