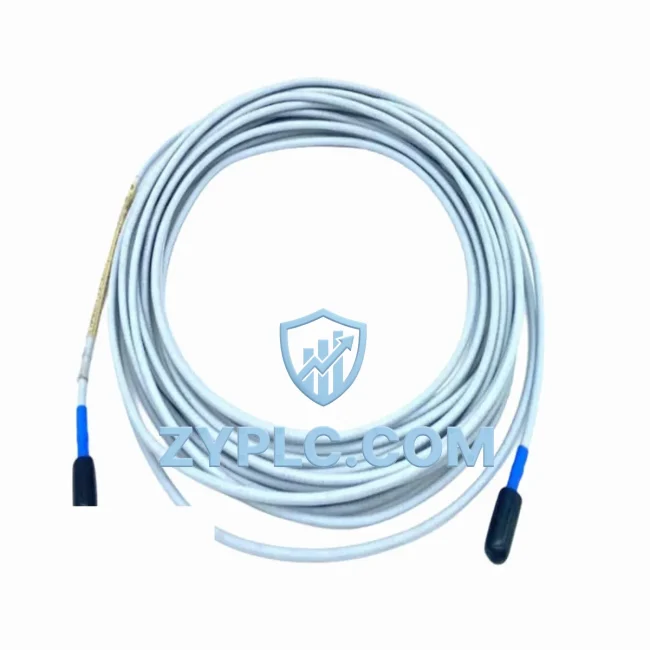

Bently Nevada 330103-02-07-10-02-00 Proximity Probe 3300

Bently Nevada 330103-02-07-10-02-00 Proximity Probe 3300: Precision Energy Control for Industrial Automation

The Bently Nevada 330103-02-07-10-02-00 is a high-performance eddy-current proximity probe engineered for the 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency is a top operational priority, this probe plays a critical role in detecting shaft displacement, rotor imbalance, and bearing wear before they escalate into unplanned downtime or excessive energy consumption. By continuously feeding real-time positional data into the control loop, the 330103-02-07-10-02-00 enables plant engineers to maintain optimal motor loading, reduce friction-induced power losses, and extend the productive life of rotating assets.

Unlike passive monitoring approaches, the 330103-02-07-10-02-00 integrates directly with the 3300 XL 8mm Proximity Transducer System, delivering sub-micron resolution displacement signals that drive actionable decisions at the drive and control layer. When paired with a Bently Nevada 3300 XL proximitor/oscillator such as the 330180-91-00, the signal chain from shaft to controller becomes fully calibrated and temperature-compensated — eliminating the measurement drift that causes over-conservative energy margins and unnecessary derating of variable-frequency drives.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving measurable energy savings in a rotating machinery environment requires more than a single sensor — it demands a tightly integrated measurement and control architecture. The 330103-02-07-10-02-00 sits at the foundation of this architecture, providing the raw displacement data that every upstream system depends on.

At the drive layer, variable-frequency drives such as the ABB ACS880 or Siemens SINAMICS G120 rely on accurate shaft feedback to modulate motor speed precisely to load demand. Without reliable proximity data, drives default to conservative fixed-speed operation, wasting kilowatt-hours on unnecessary full-load running. With the 330103-02-07-10-02-00 in the loop, the VFD can respond dynamically to actual rotor behavior, trimming speed during low-demand periods and recovering energy that would otherwise be lost as heat.

At the monitoring layer, the probe signal feeds into the Bently Nevada 3500/42M Proximitor I/O Module, which processes raw voltage into calibrated displacement values and forwards them to the plant DCS or safety system via standard 4–20 mA or digital protocols. Alongside the proximitor, the Bently Nevada 3500/22M Transient Data Interface captures high-speed waveform data during startup and coast-down — the two operating phases where energy consumption spikes and mechanical stress is highest. Identifying resonance or imbalance during these transients allows engineers to correct rotor balance before the machine settles into an energy-inefficient steady state.

For facilities running Rockwell Automation ControlLogix or Siemens S7-1500 PLCs, the 3300 Series monitoring data integrates seamlessly via EtherNet/IP or PROFINET communication modules, enabling the PLC to act on vibration thresholds in real time — triggering load shedding, speed reduction, or maintenance alerts without operator intervention. This closed-loop response is the cornerstone of energy-aware automation: the machine self-regulates based on its own mechanical health data.

Power quality monitoring components such as the Schneider Electric PowerLogic ION7650 power meter complement the proximity probe system by correlating shaft vibration events with instantaneous power draw. When a bearing begins to fail, the resulting friction increase shows up simultaneously as elevated vibration amplitude in the 330103-02-07-10-02-00 signal and as a measurable rise in motor current — giving maintenance teams two independent confirmation channels before scheduling a repair.

On the HMI and SCADA layer, platforms such as Wonderware InTouch or GE iFIX visualize the proximity probe trends alongside energy KPIs, allowing shift supervisors to correlate vibration health scores with energy consumption per production unit — a metric increasingly demanded by ISO 50001 energy management audits.

Power Optimization in Real Production Lines

In a typical centrifugal compressor train, shaft radial displacement measured by the 330103-02-07-10-02-00 directly reflects the aerodynamic loading on the impeller. When displacement trends upward beyond the alarm setpoint, it signals that the rotor is operating off its best efficiency point (BEP) — a condition that can increase specific energy consumption by 8–15% compared to on-BEP operation. By catching this drift early, the control system can adjust inlet guide vane position or VFD speed to return the machine to BEP, recovering those efficiency points before they accumulate into significant energy cost.

In motor-driven pump applications, the probe monitors shaft orbit to detect developing misalignment between the motor and pump coupling. Misalignment increases bearing load, raises motor current, and shortens seal life — all of which translate directly into higher operating costs. A well-calibrated 330103-02-07-10-02-00 installation can detect misalignment-induced orbit changes of less than 5 microns, enabling corrective maintenance during a planned window rather than an emergency shutdown that disrupts production schedules and wastes the energy embedded in work-in-progress inventory.

For steam turbine generators, the probe’s role in overspeed protection is equally an energy optimization function: by providing the speed and eccentricity data that governs governor valve positioning, it ensures the turbine operates at the highest permissible efficiency point without exceeding mechanical limits. Turbines that run with degraded proximity monitoring tend to be operated with wider safety margins — meaning lower steam admission and lower electrical output per kilogram of steam consumed.

Every unit shipped undergoes full functional testing and calibration verification prior to dispatch. The included 12-month warranty covers manufacturing defects and calibration drift, ensuring that the probe maintains its measurement accuracy throughout the first year of operation — the period during which most installation-related issues manifest. Our inventory is maintained in climate-controlled storage to preserve cable jacket integrity and connector plating, and orders are processed for same-day or next-business-day shipment to minimize production line downtime.

Energy Optimization FAQ

Q1: How does the 330103-02-07-10-02-00 contribute to measurable energy savings?
By providing continuous, high-resolution shaft displacement data, this probe enables the control system to detect mechanical inefficiencies — such as rotor imbalance, misalignment, and bearing wear — before they cause significant increases in motor current draw. Early detection allows corrective action during planned maintenance windows, preventing the energy penalty associated with degraded mechanical condition and avoiding the large energy spikes that accompany unplanned emergency restarts.

Q2: Is the 330103-02-07-10-02-00 compatible with my existing 3300 Series proximitor?
Yes. The 330103-02-07-10-02-00 is designed for use within the Bently Nevada 3300 XL 8mm Proximity Transducer System and is fully compatible with standard 3300 Series proximitor/oscillators, including the 330180 family. It is also backward-compatible with legacy 3300 Series installations, provided the extension cable and proximitor are matched to the correct gap voltage range. If you are integrating with a 3500 Series rack, the probe can be used with the appropriate 3500/42M I/O module.

Q3: What is the recommended replacement interval, and how do I verify probe condition?
Bently Nevada recommends verifying probe calibration annually or whenever the monitored machine undergoes a major overhaul. Condition verification involves measuring the static voltage-versus-gap curve against the factory calibration data. If the sensitivity has drifted beyond ±1% of nominal (7.87 V/mm), replacement is recommended. Our team can advise on calibration procedures and supply a calibrated replacement unit from stock, minimizing the time the monitoring point is offline.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 330103-02-07-10-02-00 unit is tested for electrical continuity, insulation resistance, and static sensitivity calibration before shipment. The 12-month warranty covers defects in materials and workmanship, including calibration drift beyond published tolerances under normal operating conditions. Warranty claims are processed with priority turnaround, and a replacement unit is dispatched from stock to minimize monitoring downtime. Warranty does not cover damage resulting from installation errors, overvoltage, or mechanical impact.
